Black Box ME0002A-V35 User Manual

Black Box ME0002A-V35 User Manual

Idsl line driver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

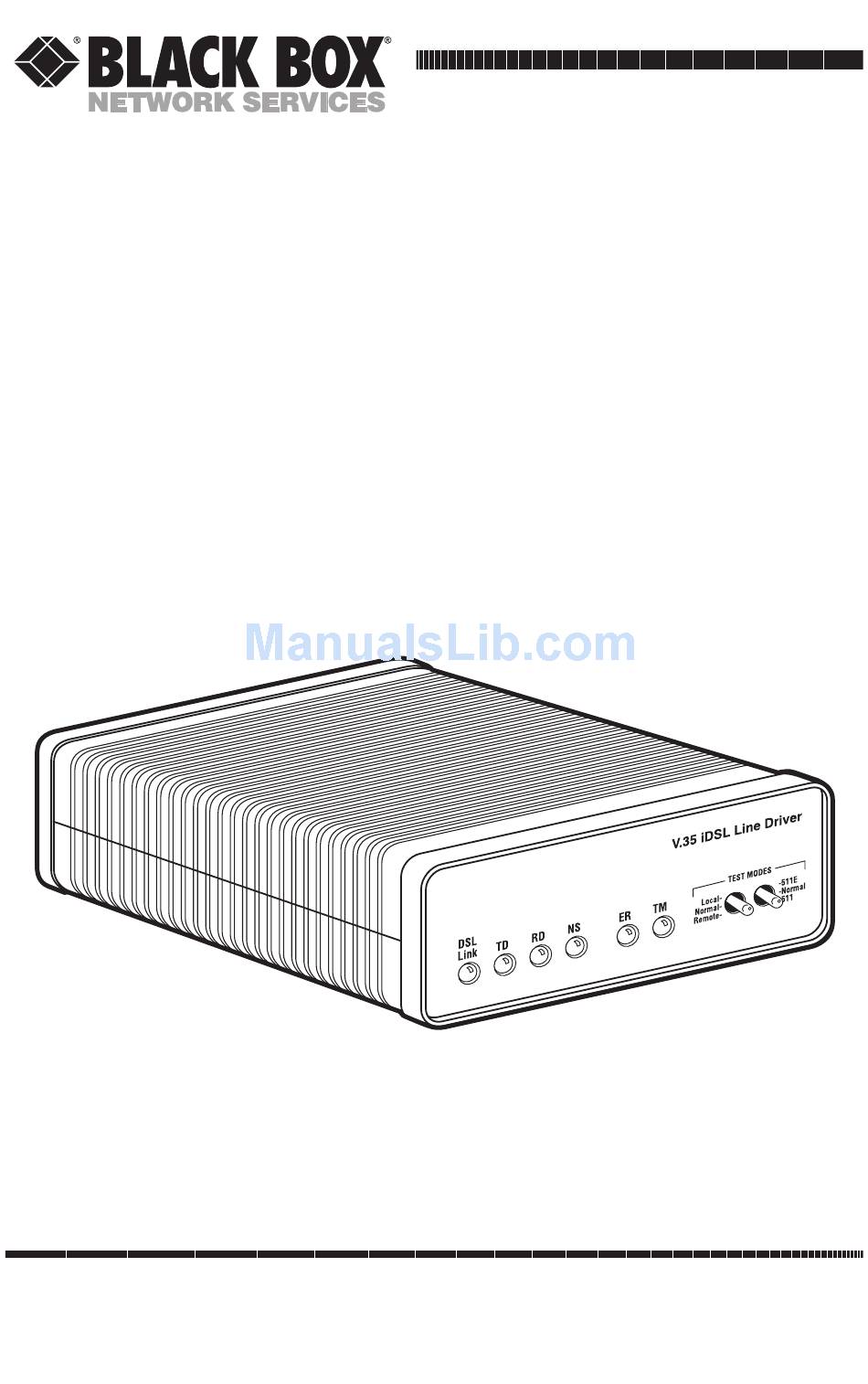

IDSL Line Driver w/V.35
IDSL Line Driver w/X.21
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
DECEMBER 2001
ME0002A-V35
ME0002A-X21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ME0002A-V35 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Box ME0002A-V35

Summary of Contents for Black Box ME0002A-V35

  • Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 2 FCC AND RFI STATEMENTS/CE NOTICE FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is...
  • Page 3 IDSL LINE DRIVER W/V.35 OR X.21 NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
  • Page 4 NOM STATEMENT 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
  • Page 5 IDSL LINE DRIVER W/V.35 OR X.21 TRADEMARKS USED IN THIS MANUAL Any trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
  • Page 6 CONTENTS Contents Chapter Page 1. Specifications ........... . 7 2.
  • Page 7 IDSL LINE DRIVER W/V.35 OR X.21 Contents (continued) Chapter Page 5. Operation............22 5.1 Power-Up .

  • Page 8: Specifications

    Indicators: LEDs: TD, RD, DSL Link, NS (no signal), ER (error), and TM (test mode) Line Interface: Transformer-coupled 1500-VAC isolation Connectors: ME0002A-V35 (1) RJ-45, (1) M/34 female; ME0002A-X21: (1) RJ-45, (1) DB15 female Temperature Range: 32 to 122°F (0 to 50°C)

  • Page 9: Introduction

    Data rates and asynchronous data format may be configured locally using DIP switches. ME0002A-V35 provides a V.35 interface on an M/34 female connector. ME0002A-X21 provides an X.21 interface on a DB15 female connector. Line connection is via an RJ-45 jack. Standard versions of the Line Driver are powered by a 100- to 240-VAC universal power supply.

  • Page 10: Snmp Management

    • Small, convenient desktop unit. • CE marked. 2.3 SNMP Management The IDSL Line Driver (ME0002A-V35 or ME0002A-X21) is SNMP manageable when it is connected to a rackmounted model ME0001C. SNMP management is enabled through a RM261C-SNMP rack management card located in the Managed Micro Rack (part number RM260).
  • Page 11 IDSL LINE DRIVER W/V.35 OR X.21 3. Configuring the Hardware DIP Switches The IDSL Line Driver w/V.35 or X.21 is equipped with two sets of eight DIP switches. This chapter describes switch locations and explains all possible configurations. Using a small flat-tip screwdriver, remove the protective cover located on the underside of the IDSL Line Driver (see Figure 3-1).

  • Page 12: Configuring The Hardware Dip Switches

    CHAPTER 3: Configuring the Hardware DIP Switches 3.1 Configuring DIP-Switch S1 DIP-switch S1 is where you configure the data rate, asynchronous or synchronous data format, transmit clock source, and response to RDL request. Table 3-1 summarizes default positions of DIP-switches S1-1 through S1-8. Detailed descriptions of each switch follow the table.
  • Page 13 IDSL LINE DRIVER W/V.35 OR X.21 NOTE The IDSL Line Driver can also operate at the 19.2 kbps synchronous rate. To operate at 19.2 synchronous, set Switches S1-1 and S1-2 both to the OFF position and Switch S2-1 to the ON position (see Section 3.2.1 for a description of Switch S2-1).
  • Page 14 CHAPTER 3: Configuring the Hardware DIP Switches 3.1.5 S S1-6 S1-7: S WITCHES YSTEM LOCK Use Switches S1-6 and S1-7 to configure the IDSL Line Driver for internal, external, or receive recover clock mode. Table 3-6. System clock mode. S1-6 S1-7 Clock Mode Description...

  • Page 15: Configuring Dip-Switch S2

    IDSL LINE DRIVER W/V.35 OR X.21 3.2 Configuring DIP-Switch S2 Use the eight DIP switches in Switch S2 to enable 19.2 kbps synchronous operation, set the loopback modes, and set the speed of the control port. The following table summarizes default positions of DIP-switch S2. Detailed descriptions of each switch follow the table.
  • Page 16 CHAPTER 3: Configuring the Hardware DIP Switches 3.2.2 S S2-2: F WITCH RONT ANEL WITCH ISABLE Use Switch S2-2 to enable or disable the front-panel toggle switches. Table 3-10. Front-panel toggle switches. S2-2 Setting Disable the front-panel switches Enable the front-panel switches 3.2.3 S S2-3: R WITCH...
  • Page 17 In some instances, you may need to connect an IDSL Line Driver to a third-party IDSL modem. By enabling S2-7, the Line Driver will negotiate and link up to a non Black Box IDSL modem. When using two Black Box units, please set S2-7 to the default position.

  • Page 18: Installation

    CHAPTER 4: Installation 4. Installation Once the IDSL Line Driver is properly configured, it is ready to connect to the twisted-pair interface, to the serial port, and to the power source. This section tells you how to make these connections. V.35 connector Line interface Power input...

  • Page 19: Connecting The Idsl Line Driver V.35 Serial Interface

    Figure 4-3). Appendix A describes pin assignments and signal sources for the Line Driver’s V.35 interface. When purchasing or constructing an interface cable, please use Appendix A as a guide. DSL span IDSL Line Driver (ME0002A-V35) Straight-through M/34 cable IDSL Line Driver V.35 router (DTE) (ME0002A-V35) Figure 4-3.

  • Page 20: Connecting The Idsl Line Driver X.21 Serial Interface

    RIVER TO A EVICE The Line Driver (ME0002A-V35) provides a V.35 DCE (Data Circuit Terminating Equipment) interface on an M/34 female connector. As a DCE, this interface is designed to connect to DTE equipment, such as a router. However, tail-circuit applications require connection to another piece of DCE equipment, such as a multiplexor.

  • Page 21: Opening The Case

    IDSL LINE DRIVER W/V.35 OR X.21 DSL span IDSL Line Driver (ME0002A-X21) Router (DTE) or Straight-through Multiplexor (DCE) DB15 cable IDSL Line Driver (ME0002A-X21) Figure 4-5. Connecting the Line Driver to an X.21 DTE or DCE. To change the DCE/DTE orientation from the default position (DCE), you must open the case Line Driver’s case.

  • Page 22: Connecting Power

    CHAPTER 4: Installation The DCE/DTE strap is located on the top side of the Line Driver PC board (see Figure 4-7). The arrows on the top of the strap indicate the configuration of the X.21 port (for example, if the DCE arrows are pointing toward the DB15 connector, the X.21 port is wired as a DCE).

  • Page 23: Idsl Line Driver W/V.35 Or X

    IDSL LINE DRIVER W/V.35 OR X.21 5. Operation Once the IDSL Line Driver is properly configured and installed, it should operate transparently. This chapter describes power-up, reading the LED status indicators, and using the built-in loopback test modes. 5.1 Power-Up To apply power to the IDSL Line Driver, first be sure that you have read Section 4.4, and that the unit is connected to the appropriate power source.

  • Page 24: Test Modes

    CHAPTER 5: Operation Table 5-1. LED descriptions. Description DSL Link (Active Green) Solid green (On) indicates that the end-to- end DSL Framer Link is up, signifying that the link across the DSL span is active. The DSL Link LED is Off when the link is down.

  • Page 25: Remote Digital Loopback (Rdl)

    IDSL LINE DRIVER W/V.35 OR X.21 initiated Figure 5-2. Local line loopback. To perform an LLB test, follow these steps: 1. Activate LLB. This may be done in one of two ways: Move the front-panel toggle switch up to “Local.” Raise the LLB signal on the interface.
  • Page 26 CHAPTER 5: Operation RDL initiated Local IDSL Line Remote IDSL Line Driver (ME0002A) Driver (ME0002A) Figure 5-3. Remote digital loop. IMPORTANT Do not send a 511 test pattern from the test equipment when you connect external test equipment to the Line Driver. To perform an RDL test, follow these steps: 1.

  • Page 27: Using The V.52 (Ber) Test-Pattern Generator

    IDSL LINE DRIVER W/V.35 OR X.21 5.4 Using the V.52 (BER) Test-Pattern Generator To use the V.52 BER tests in conjunction with the Remote Digital Loopback tests (or with Local Line Loopback tests), do the following: 1. Locate the 511/511E toggle switch on the Line Driver’s front panel and set the toggle to the down position.

  • Page 28: Appendix A. V.35 Interface Pin Assignments

    APPENDIX A: V.35 Interface Pin Assignments Appendix A. V.35 Interface Pin Assignments Listed below are the V.35 interface pin assignments (M/34 female connector, DCE orientation). Pin # Signal SGND (Signal Ground) RTS (Request to Send) (DTE Source) CTS (Clear to Send) (DCE Source) DSR (Data Set Ready) (DCE Source) CD (Carrier Detect) (DCE Source) DTR (Data Terminal Ready) (DTE Source)
  • Page 29 IDSL LINE DRIVER W/V.35 OR X.21 Appendix B. X.21 Interface Pin Assignments Listed below are the X.21 interface pin assignments (DB15 female connector, DTE/DCE orientation). Pin # Signal Frame Ground T (Transmit Data-A) (DTE Source) C (Control-A) (DTE Source) R (Receive Data-A) (DCE Source) I (Indication-A) (DCE Source) S (Signal Element Timing-A) (DCE Source) BT (Byte Timing-A) (DCE Source)
  • Page 30 © Copyright 2001. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
