Microdriver 9, Short-Haul Modem-B, and Multipoint Line Driver
Send your async data up to several miles
Send your async data up to several miles
from your computer equipment—without
from your computer equipment—without
the expense of a modem.
the expense of a modem.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ME800A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box ME800A

Summary of Contents for Black Box ME800A

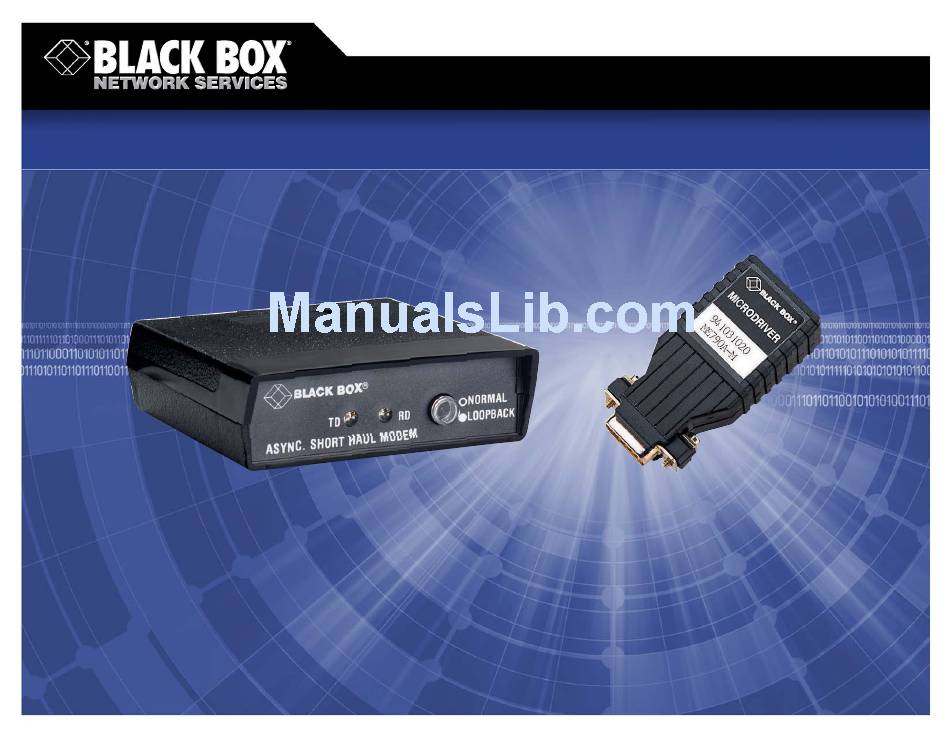

  • Page 1 © 2007. All rights reserved. Black Box Corporation. Microdriver 9, Short-Haul Modem-B, and Multipoint Line Driver Send your async data up to several miles Send your async data up to several miles from your computer equipment—without from your computer equipment—without the expense of a modem.
  • Page 2 FEATURES • Send async data across short- and medium-range distances. • Use existing in-house twisted-pair wiring to transmit data. • Choose from a variety of data rates— as high as 115.2 kbps with the high- speed SHM-B. • Most offered as cards for rackmounting. •...

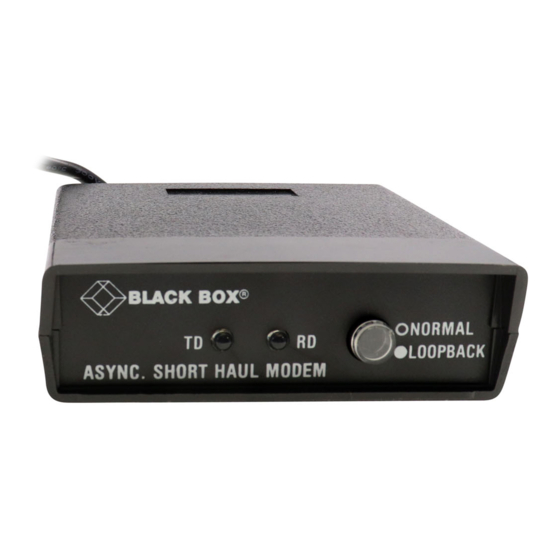

  • Page 3 SHM-B Async includes EIA-232 control line interfaces, status monitor LEDs, and a loopback switch. The SHM-B Async is available in five versions: • As a standalone 115-VAC model (ME800A). • As a standalone 115-VAC model with cables included (ME800A-R3). • As a standalone 230-VAC model with cables included (ME800AE-CABPAK).
  • Page 4 5/2/2007 724-746-5500 #11220 A typical application in which multiple LD485A-MPs are used for 4-wire, multipoint communications. Industrial controller LD485A-MP (ME836A-R5) High-Speed Short-Haul Modem-B (SHM-B) Async • Powered, point-to-point, 4-wire. • Speeds up to 115.2 kbps. • Ideal for applications where data speed is crucial. •...
  • Page 5 Speed (Maximum) — 19.2 kbps Interface — RS-232 Connectors — (1) DB25 F, (1) 4-screw terminal block Power — ME800A, ME800A-R3: External 115 VAC, 60 Hz ± 10%, 5 watts; ME800AE-CABPAK: Primary: 230 VAC ±10%, 50–60 Hz; Secondary: 17 VAC, 700 mA;...
  • Page 6 ME755AE Rackmount Card ME755-C Short-Haul Modem-B (SHM-B) Async Standalone (115-VAC) ME800A Standalone (115-VAC) with Cables ME800A-R3 (ME800A-R3 includes [1] power supply, [1] 6-foot RS-232 DB25 male/DB9 female cable, and [1] DB25 female/DB9 male adapter.) blackbox.com Full Half- Power duplex duplex 19.2...
