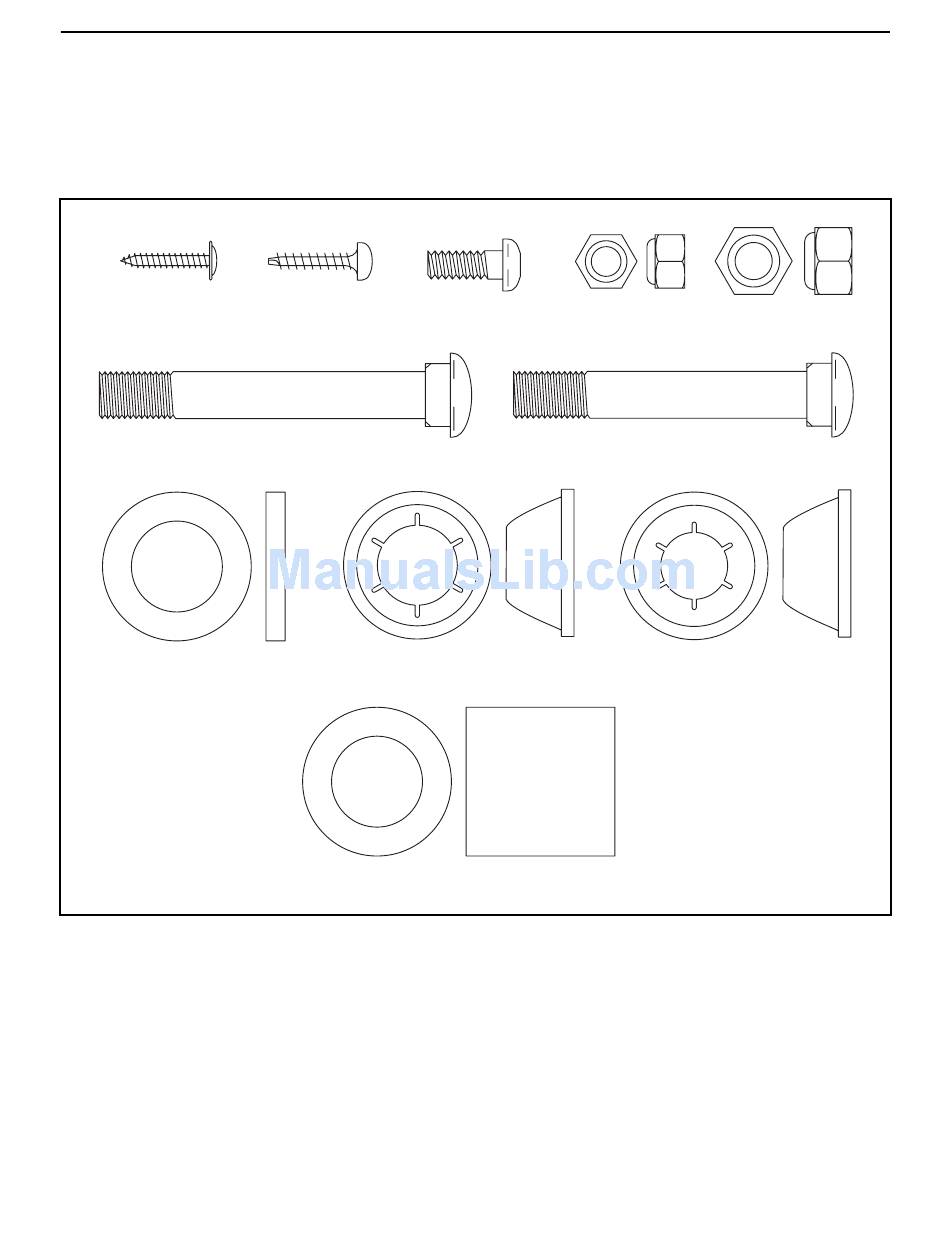

PART IDENTIFICATION CHART

Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
refers to the key number of the part, from the PART
LIST on page 14. The number after the dash indicates
M4 x 19mm Flange
Screw (9)—6
M10 x 75mm Carriage Bolt (47)—2
Nylon Spacer (39)—2
* Extra parts may be included.
M4 x 16mm
M6 x 16mm Button
Screw (16)—4 Screw (54)—4
3/4" Axle Cap (43)—4*
Pedal Arm Spacer (41)—2*
the quantity needed for assembly. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it has
been pre-attached.
M6 Nylon
Locknut (55)—2
M10 x 68mm Carriage Bolt (60)—2
5
M10 Nylon
Locknut (29)—6
5/8" Axle Cap (57)—2*
