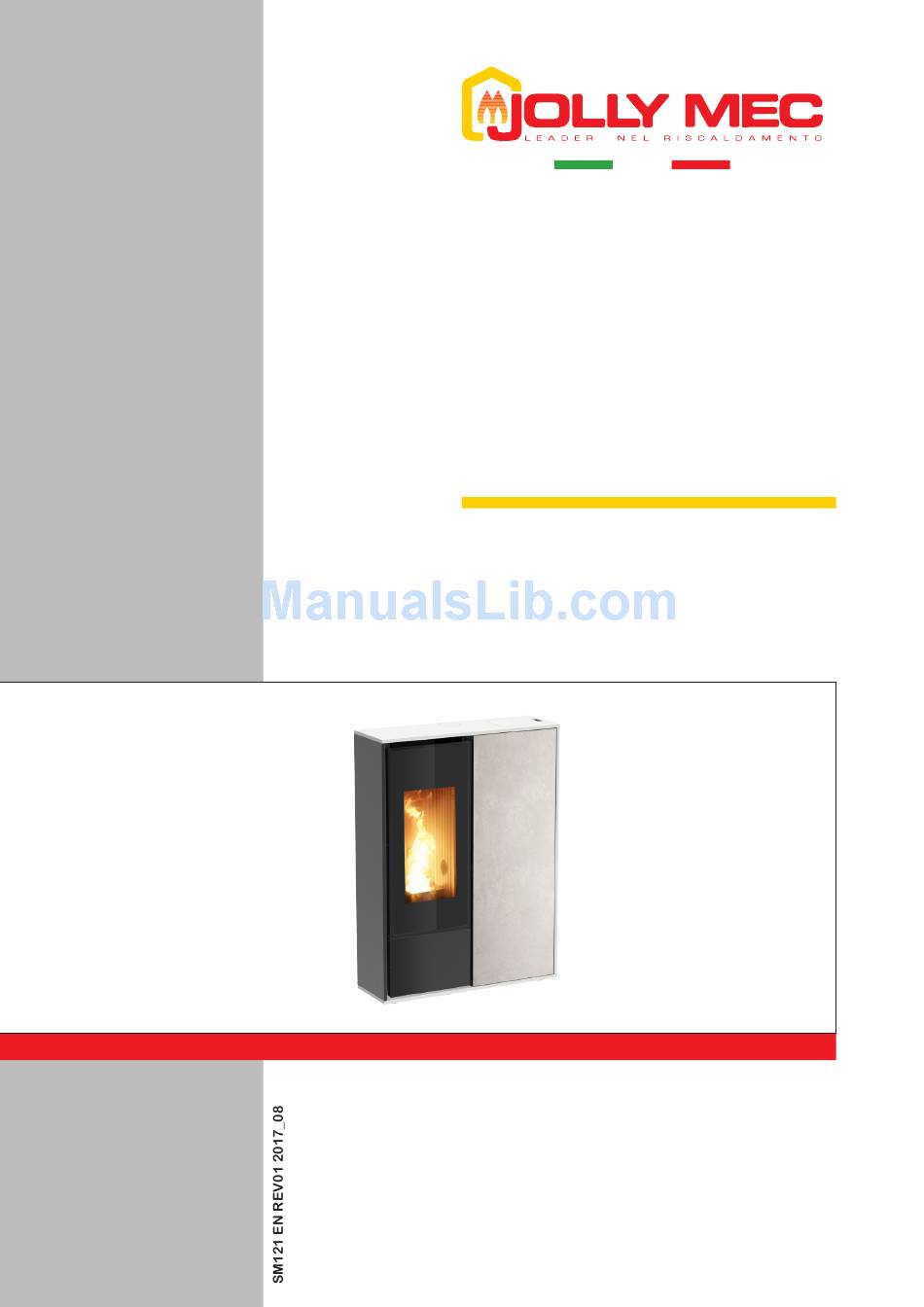

- Page 1 I-DEA2 QUADRA INSTALLATION, USE AND MAINTENANCE MANUAL To be kept by the purchaser I-Dea2 Quadra Pellet operated air heating stove...
- Page 2 Dear Customer, thank you for having chosen to heat and save with a Jolly Mec product. Please carefully read and keep this sheet before using the equipment. This sheet provides necessary information and suggestions on how to correctly install, use, clean and maintain the product.
- Page 3 TABLE OF CONTENTS CHAP.01 PREMISES........................... 4 01.1 WARNINGS ..............................4 01.2 SYMBOLOGY ............................... 5 01.3 APPLIED STANDARDS ..........................5 01.4 USE AND STORING OF THE INSTALLATION AND MAINTENANCE MANUAL ........6 01.5 MANUFACTURER LIABILITY AND WARRANTY CONDITIONS ..............6 CHAP.02 ACCIDENT PREVENTION / SAFETY REGULATIONS .............. 7 02.1 GENERAL CONSIDERATIONS ........................
-
Page 4: Chap.01 Premises
CHAP.01 PREMISES 01.1 WARNINGS • Familiarity and compliance with the instructions given in this manual will ensure quick installation and correct use of the appliance. • Read the manual attentively before commencing installation, and be certain to follow the directions it contains, otherwise the war- ranty could be invalidated and the performance and safety of the appliance jeopardized. • The installation manual is an integral part of the product and must be given to the user. • It must be kept in a safe place and consulted carefully, as all of the warnings provide important information on safety during instal- lation, use and maintenance. • Incorrect installation of the appliance could cause damage and injury to people or animals, for which the manufacture cannot not be held liable. • Installation shall be performed by qualified operators in accordance with the regulations in force in the Country of installation. • The manufacturer declines any contractual or non-contractual liability for damages caused by errors in installation or use of the appliance or failure to follow the instructions contained in this manual. • All rights on the reproduction of this technical manual are owned by Jolly Mec Caminetti S.p.A. The descriptions and illustrations provided in the following publication are not binding. • reserves the right to make any modifications that may be deemed appropriate. • Jolly Mec Caminetti S.p.A This manual cannot be given to third parties for perusal without the written permission of • Jolly Mec Caminetti S.p.A • The technical directions for installation contained in this manual should be considered as basic requirements. Regulations in some countries may be more restrictive; in this instance, comply fully with the regulations prevailing in the country of installation (all laws and local bylaws must be observed when installing and using the appliance, including those referring to national and European standards). -
Page 5: Symbology
This point is particularly important. An important point regarding behaviour for preventing injury and damage to DANGER: materials is expressed. 01.3 APPLIED STANDARDS All JOLLY MEC products are constructed according to the following directives: European construction products regulation. • EU 305/2011 Machines. •... -
Page 6: Use And Storing Of The Installation And Maintenance Manual
01.5 MANUFACTURER LIABILITY AND WARRANTY CONDITIONS Upon the delivery of this manual, Jolly Mec S.p.A. cannot be held liable, whether civil or criminal, for accidents due to partial or total non-compliance with the specifications herein contained. The manufacturer is especially held harmless from any liability in the following cases: •... -
Page 7: Chap.02 Accident Prevention / Safety Regulations
CHAP.02 ACCIDENT PREVENTION / SAFETY REGULATIONS 02.1 GENERAL CONSIDERATIONS • The manual refers to essential aspects of the directives, regulations and dispositions on using the machine, summarising its most significant points. • General legal regulations and mandatory rules regarding injury prevention and environmental protection must be observed. -
Page 8: Safety Regulations For Extraordinary Maintenance And Installation
• In alarm status for failed start up, do not try to restart the appliance until the firebox has been thoroughly cleaned. • The appliance must always be started up with the firebox empty, without pellets and without unburned fuel from previous use. -
Page 9: Equipment For Operators And Maintenance Personnel
RESIDUAL RISKS Though JOLLY MEC CAMINETTI S.p.A. does everything within its power to produce its systems with the greatest competence regarding safety and consulting all the directives, laws, and regulations available, there are still, if minor, some residual risks during the phases of: •... -
Page 10: Chap.03 Handling And Transport
CHAP.03 HANDLING AND TRANSPORT 03.1 RECEIVING GOODS The product is delivered on pallets, packaged in a cardboard box with a cellophane wrapping. when receiving merchandise, check that: • all packaging is intact • all of the merchandise indicated on the delivery bill has actually been delivered •... -
Page 11: Chap.04 Ecological Regulations
CHAP.04 ECOLOGICAL REGULATIONS 04.1 WASTE MATERIALS AND THEIR DISPOSAL Spare parts replaced during the machine’s product life are to be considered waste and must be taken to special collection centres or entrusted to authorised disposal centres. Ashes must be placed in a metal container with a sealed lid. The closed container must be placed on a non-combustible base and kept away from combustible materials until all the embers have been extinguished. -
Page 12: Chap.05 Description
The I-DEA2 QUADRA stoves for air and pellets are heating systems approved to EN 14785:2006 European Standard requirements issued by an independent body accredited by the European Commission for machine commissioning and certification. -
Page 13: Product Identification
Stove performance values measured during inspection tests according to the indicated reference and EC markings are also included on the plate I-Dea2 Quadra Via San Giuseppe, 2 - 24060 Telgate - BG - ITALY EN 14785:2006 Tel. -
Page 14: Chap.06 Technical Data
CHAP.06 TECHNICAL DATA 06.1 HOMOLOGATION Technical specifications resulting from laboratory tests conducted according to EN 14785:2006 test methods at the CERTIFICATION institute. Description I-Dea2 Quadra Nominal burning output Nominal heat output Reduced heat output Nominal output consumption Kg/h 1,882 Reduced output consumption... -
Page 15: Recommended Fuels
Jolly Mec Caminetti S.p.A recommends the use of the same type of pellets used during the optional Commissioning service, i.e. when the settings and calibrations were made to suit the loaded combustible materials. Continuous switching of types and qualities of combustible materials will require continuous adjustments to settings by the specialised Technical Service Center, which can not be endorsed by the Manufacturer. -
Page 16: Components
06.3 COMPONENTS The device is supplied with the following components: • Installation, use and maintenance manual. • Use and maintenance accessories (see CHAP.08.6 - ORDINARY MAINTENANCE). • Power cord to connect the stove to the mains. • Cladding. • IR remote control. Part List: Hot air outlet Humidifier (optional) -
Page 17: Dimensions
06.4 DIMENSIONS All measurements are in mm. I-Dea2 Quadra 1153 I-Dea2 Quadra... -
Page 18: Chap.07 Positioning And Connections For The Installer
CHAP.07 POSITIONING AND CONNECTIONS FOR THE INSTALLER 07.1 SETTING UP OF EXTERNAL AIR INTAKES AND ELECTRIC CURRENT The device must only be installed indoors and on surfaces Front view that can support the load. If the existing construction does not meet this requirement, it will be necessary to take appropriate measures (e.g. -
Page 19: Flue Or Fume Exhaust System
07.2 FLUE OR FUME EXHAUST SYSTEM The flue or fume exhaust system is a fundamental element for the proper functioning of the stove and must comply with the following general standards: EN1856-1 Chimneys. Requirements for metal chimneys - Part 1: System chimney products EN1856-2 Chimneys. -
Page 20: Installation Room Ventilation
Jolly Mec allows the ducting system at the input of the combustion air within and not over the following limits: the length can’t be longer that 1000 mm, the diameter has to have at least the same section of the stove/boiler connection, it is possible only one 90°... -
Page 21: Assembly Sequence
07.4 ASSEMBLY SEQUENCE Unpack the stove by removing the cardboard. Take the stove off the pallet and handle it carefully until it gets off the pallet. Place the stove in the location where you want to install it. When choosing the place to install it, remember that installation must guarantee easy access to clean the stove, the fume pipes and the flue, and that the safety distances must be complied with as provided for in CHAP.06.1 –... -
Page 22: Electrical Connections
D’ Humidifier Pillar C’ 07.5 ELECTRICAL CONNECTIONS Connect the 230Vac 50Hz line with the proper cable with plug, supplied with the stove, which powers up the control unit and all the appliance’s electrical components The device is equipped with a power socket with fuses and a bipolar switch. In the event that the control unit does not switch on, even after turning the switch to I “ONE”, check that the fuses are intact. -
Page 23: Control Unit Electrical Wiring Diagram
07.6 CONTROL UNIT ELECTRICAL WIRING DIAGRAM WARNING Electrical connections must be carried out by skilled personnel according to the regulations in force (2014/30/UE and 2014/35/UE). WHITE BLUE BLUE BROWN VIOLET BLACK WHITE BLUE WHITE WHITE Number Description Number Description Control display Bulb type safety thermostat Electronic card Fume pressure switch... -
Page 24: Example Of Air Ducting In The Various Rooms
07.7 EXAMPLE OF AIR DUCTING IN THE VARIOUS ROOMS NOTE To duct air into the other rooms, connect the pipe to the stove’s rear outlets in order to distribute the air inside all rooms. The air can be balanced with the grids with adjustable closures. The air pipes must be brought to the rooms to be heated. -
Page 25: Chap.08 Use And Maintenance For The User
CHAP.08 USE AND MAINTENANCE FOR THE USER 08.1 APPLIANCE OPERATIONS The STOVE uses pellets as fuel, whose combustion is electronically controlled. Pellets are taken from the storage hopper by the auger controlled by the gear motor and conveyed directly to the burn pot. They are ignited by the hot air produced by the electric heating element and aspirated into the burn pot by the centrifugal fan which is the same that sucks up the fumes produced by combustion, expelling them to the side part of the stove. -
Page 26: Appliance Start And Use
08.3 APPLIANCE START AND USE After professionally installing the room ventilation system, the fume exhaust system and electrical system according to the relevant regulations, the specialised Technical Service Center can provide the optional Commissioning service. Follow these steps to start using the product: load pellet of the recommended quality in the tank, set the desired temperature and heat output level (we recommend setting level 3) and press Button 8 to turn on the device. -
Page 27: Safety Thermostat With Manual Reset
08.4 SAFETY THERMOSTAT WITH MANUAL RESET A safety thermostat is installed on the device to protect against any overheating of fuel contained in the pellet hopper and cause the device to switch off if the temperature sensor reaches limit values which correspond to the thermostat trigger setting. To restore normal appliance operations following forced shutdown by a thermostat, proceed as follows: 1. -
Page 28: Tips For The User
• Use only original spare parts recommended by the manufacturer. Original spare parts are available through retailers, specialised Tecnical Service Centers, or directly at the head office of Jolly Mec Caminetti S.p.A. • If the glass becomes very dirty (with visible blackening) while operating on pellets, possible causes could be: - low draught by the flue (clean the flue or check its characteristics). -
Page 29: Ordinary Maintenance (By The Costumer)
08.6 ORDINARY MAINTENANCE (by the costumer) WARNING Before starting any type of cleaning, switch off the main switch and make sure that the appliance is cold. Never restart the stove before completing these operations and correctly reassembling all components. Cleaning tools supplied Spray for the humidifier tank (with humidifier kit only) Handle for opening the door To facilitate and improve device cleaning, use an ash vacuum... - Page 30 Stove body cleaning Remove the firebox (as described in point 3. Remove the firebox to clean it) and remove the flame-breaker (as described in point 9. Remove the flame-breaker). Use a brush to clean the internal walls of the combustion chamber in the FIRE FLECTOR allowing the soot to fall into the pan (F .
- Page 31 Ash pan removal and cleaning . 11 . 12 With the combustion chamber door open, extract the drawer positioned inside the stove at the bottom (F . 11-12). After removing and emptying the drawer it is recommended to vacuum the drawer housing to remove any ash residue (make sure residual ashes are cold) (F .
- Page 32 Glass cleaning . 20 . 19 Clean the glass daily with a damp sponge or paper hand towels . 19-20). If the glass becomes dirty with black smoke, the brazier is probably dirty or the combustion air must be increased. Be careful not to use overly aggressive products to avoid ruining the paint.
- Page 33 10. Connecting the power socket . 31 . 32 Before connecting the plug on the cord supplied with the stove to the domestic electrical system, plug it into the socket fitted on the back of the right side panel (F . 31-32) threading it through the groove on the back of the stove, making sure the switch is in the “O”...
-
Page 34: Scheduled Preventive Maintenance (To Be Done By A Specialised Technical Service Center)
08.7 SCHEDULED PREVENTIVE MAINTENANCE (To be done by a specialised Technical Service Center) We wish to remind you that the Extraordinary Maintenance to be carried out on this type of product must be done obligatorily every year by qualified maintenance personnel, in order to maintain its functionality, efficiency and comfort. For any further queries you may have, we invite you to contact the specialised Technical Service Center through your retailer. - Page 35 Time between one cleaning and the next is strictly tied to fuel quality and also the device’s operating time. The most suitable cleaning frequency can only be established a few days after use according to the actual amount of deposited residue and may vary from the intervals imposed by Jolly Mec.
-
Page 36: Chap.09 Fault Diagnosis And Troubleshooting
CHAP.09 FAULT DIAGNOSIS AND TROUBLESHOOTING 09.1 PROBLEMS WARNING In accordance with the laws in force on safety for electrical appliances, a specialised Technical Service Center or qualified personnel must obligatorily be contacted for all installation, maintenance or interventions that require access to electrical parts. - Page 37 NOTES...
