- Page 1 EASY I N S T A L L A T I O N , U S E A N D MAINTENANCE MANUAL To be kept by the purchaser EASY Wood operated air system stove...
- Page 2 Dear Customer, thank you for having chosen to heat and save with a Jolly Mec product. Please carefully read and keep this sheet before using the equipment. This sheet provides necessary information and suggestions on how to correctly install, use, clean and maintain the product.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAP.01 PREMISES........................... 4 01.1 WARNINGS ..............................4 01.2 SYMBOLOGY ............................... 5 01.3 APPLIED STANDARDS ..........................5 01.4 USE AND STORING OF THE INSTALLATION AND MAINTENANCE MANUAL ........6 01.5 MANUFACTURER’S LIABILITY AND WARRANTY CONDITIONS ............. 6 CHAP.02 ACCIDENT PREVENTION / SAFETY REGULATIONS .............. 7 02.1 GENERAL CONSIDERATIONS ........................ -
Page 4: Chap.01 Premises
CHAP.01 PREMISES 01.1 WARNINGS • Familiarity and compliance with the instructions given in this manual will ensure quick installation and correct use of the appliance. • Read the manual attentively before commencing installation, and be certain to follow the directions it contains, otherwise the war- ranty could be invalidated and the performance and safety of the appliance jeopardized. • The installation manual is an integral part of the product and must be given to the user. • It must be kept in a safe place and consulted carefully, as all of the warnings provide important information on safety during instal- lation, use and maintenance. • Incorrect installation of the appliance could cause damage and injury to people or animals, for which the manufacture cannot not be held liable. • Installation shall be performed by qualified operators in accordance with the regulations in force in the Country of installation. • The manufacturer declines any contractual or non-contractual liability for damages caused by errors in installation or use of the appliance or failure to follow the instructions contained in this manual. • All rights on the reproduction of this technical manual are owned by Jolly Mec Caminetti S.p.A. The descriptions and illustrations provided in the following publication are not binding. • reserves the right to make any modifications that may be deemed appropriate. • Jolly Mec Caminetti S.p.A This manual cannot be given to third parties for perusal without the written permission of • Jolly Mec Caminetti S.p.A • The technical directions for installation contained in this manual should be considered as basic requirements. Regulations in some countries may be more restrictive; in this instance, comply fully with the regulations prevailing in the country of installation (all laws and local bylaws must be observed when installing and using the appliance, including those referring to national and European standards). -
Page 5: Symbology
This point is particularly important. An important point regarding behaviour for preventing injury and damage to DANGER: materials is expressed. 01.3 APPLIED STANDARDS All JOLLY MEC products are constructed according to the following directives: • EU 305/2011 European construction products regulation. Machines. •... -
Page 6: Use And Storing Of The Installation And Maintenance Manual
01.5 MANUFACTURER’S LIABILITY AND WARRANTY CONDITIONS Upon the delivery of this manual, Jolly Mec S.p.A. cannot be held liable, whether civil or criminal, for accidents due to partial or total non-compliance with the specifications herein contained. The manufacturer is especially held harmless from any liability in the following cases: •... -
Page 7: Chap.02 Accident Prevention / Safety Regulations
CHAP.02 ACCIDENT PREVENTION / SAFETY REGULATIONS 02.1 GENERAL CONSIDERATIONS • The manual refers to essential aspects of the directives, regulations and dispositions on using the machine, summarising its most significant points. • General legal regulations and mandatory rules regarding injury prevention and environmental protection must be observed. -
Page 8: Safety Regulations For Extraordinary Maintenance And Installation
• Keep the ventilation grids in the area the appliance is installed in clean conditions. • Do not use fuels that are not recommended. • Check and periodically clean the fume exhaust pipe, from the appliance to the flue (Union). •... -
Page 9: Equipment For Operators And Maintenance Personnel
RESIDUAL RISKS Though JOLLY MEC CAMINETTI S.p.A. does everything within its power to produce its systems with the greatest competence regarding safety and consulting all the directives, laws, and regulations available, there are still, if minor, some residual risks during the phases of: •... -
Page 10: Chap.03 Handling And Transport
CHAP.03 HANDLING AND TRANSPORT 03.1 RECEIVING GOODS The device is delivered on a pallet in a cardboard box and protected with shrink wrap cover sheet when receiving merchandise, check that: • all packaging is intact • all of the merchandise indicated on the delivery bill has actually been delivered •... -
Page 11: Chap.04 Ecological Regulations
CHAP.04 ECOLOGICAL REGULATIONS 04.1 WASTE MATERIALS AND THEIR DISPOSAL Spare parts replaced during the machine’s product life are to be considered waste and must be taken to special collection centres or entrusted to authorised disposal centres. Ashes must be placed in a metal container with a sealed lid. The closed container must be placed on a non-combustible base and kept away from combustible materials until all the embers have been extinguished. -
Page 12: Chap.05 Description

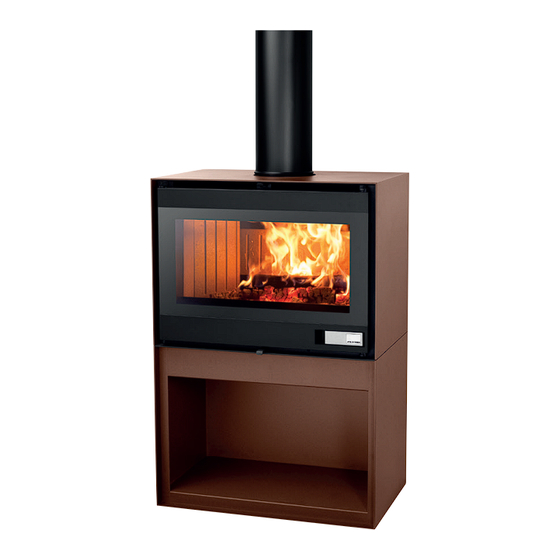

A= 812 mm The EASY stove features a door, to prevent the fuel products from escaping, with self- B= 1171 mm C= 500 mm cleaning window, and a built-in manually powered humidifier to avoid problems such as: dry throats and allergies. -
Page 13: Product Identification
Product sales code Product label code Product serial number EASY WARNING *Pursuant to European Regulation No. 305/2011, manufacturers are now required to have the DoP - Declaration of Performance for each product of own design concerned; Jolly-Mec did namely provide all of these documents in downloadable electronic form that you can easily see on the website of the Company at the following address: http://www.jolly-mec.it/it/servizio-clienti/docman. -
Page 14: Chap.06 Technical Data
All appliance tests, final inspection and fine-tuning was performed using the recommended fuels. Jolly Mec Caminetti S.p.A. is not responsible for malfunctions, breakdowns or problems due to the use of wood logs that are not recommended, as combustion parameters vary according to the quality of the fuel. -
Page 15: Recommended Fuels
06.2 RECOMMENDED FUELS WARNING WOOD QUALITY IS VERY IMPORTANT; PLEASE READ THIS SECTION CAREFULLY WOOD COMBUSTION Wood clean burning is a process that reflects the natural decomposition itself; this means that CO (carbon dioxide) released does not increase or damage the CO original contents in the atmosphere. -
Page 16: Components
06.3 COMPONENTS The appliance is delivered on a pallet with a shrink wrap cover sheet and with the following additional components: • Installation, use and maintenance manual • Fireplace unit EASY without bottom door • Cladding EASY with bottom door • Cast iron grate Ash pan CHAP.07.1 - FLUE OR •... -
Page 17: Dimensions
06.4 DIMENSIONS All measurements are in mm. Model EASY 1171 A= 812 mm B= 1171 mm C= 500 mm EASY... -
Page 18: Chap.07 Positioning And Connections For The Installer
CHAP.07 POSITIONING AND CONNECTIONS FOR THE INSTALLER 07.1 FLUE OR FUME EXHAUST SYSTEM The flue or fume exhaust system is a fundamental element for the proper functioning of the stove and must comply with the following general standards: EN1856-1 Chimneys. Requirements for metal chimneys - Part 1: System chimney products EN1856-2 Chimneys. -
Page 19: Installation Room Ventilation
Running other air ducts and installation pipes inside the exhaust pipes, even if oversized, is forbidden. One or more airtight reading points are recommended on the flue to check emissions after installation and measure draught. Supporting the weight of the flue with the appliance union is strictly forbidden. Use specific stands or independent supports for this purpose. -
Page 20: Assembly Sequence
When choosing the position of the stove, bear in mind that the installation of the device must guarantee easy access for cleaning its parts, the circulation fan (if present), the exhaust fumes ducting and the flue;... - Page 21 . 10 . 11 . 12 . 13 . 14 . 15...
- Page 22 6. 6. Connect the air temperature probe to the control unit . 16 terminal, threading it through the rubber cable ducts (F . 18), and insert the cables in the dedicated terminal (F . 19) 7. Connect the cables to the fan terminal board, threading them through the rubber cable ducts (F .
- Page 23 Assembling the door (Optional) 1. Remove the packaging from the door. . 22 . 23 2. Loosen the nuts on the bottom part of the stove (F . 22). 3. Fasten the door hinge (F . 23) to the threads on the stove cladding .
-
Page 24: Safety Distances From Surrounding Flammable Materials
07.4 SAFETY DISTANCES FROM SURROUNDING FLAMMABLE MATERIALS In F . 1 are shown the safety distances from surrounding flammable materials applicable to all installation types available: Flammable Wall Flammable floor Fume Exhaust Scarico fumi Comburent air Ingresso aria intake comburente Scarico fumi Fume Exhaust Comburent air Ingresso aria... -
Page 25: Chap.08 Use And Maintenance For The User
CHAP.08 USE AND MAINTENANCE FOR THE USER 08.1 CONTROL UNIT When installed, the electronic control unit controls all appliance functions and is controlled via a display. The display lets you use the following main functions: • Fan speed in manual mode •... - Page 26 If the flue draught is weaker than required for the fireplace to function properly, it is possible to open the by-pass damper slightly, by removing the screw from the pin, as this will improve the operating conditions of the device (F .
-
Page 27: Tips For The User
08.3 TIPS FOR THE USER • The glass door must remain closed during wood combustion; it can only be opened to add more wood. • When purchasing firewood, it is advisable to vary the sizes, but with a length as to be able to light quickly, but also long charges and, if the quality of the wood is good, efficiency and functionality will also be excellent. -
Page 28: Routine Maintenance
08.4 ROUTINE MAINTENANCE Opening the combustion chamber door To open the combustion chamber door, grasp the handle (F . 1) and rotate it until it locks in place (F . 2). Open the door and, to leave it completely open, open it to 90 degrees. To close the door, push it gently with the handle open. When the door is resting on the device, the handle will remain open by 45°... -
Page 29: Extraordinary Maintenance
We wish to remind you that the Extraordinary Maintenance to be carried out on this type of product must be done obligatorily every year by qualified maintenance personnel, in order to maintain its functionality, efficiency and comfort. For any further queries you may have, we invite you to contact the authorised Jolly Mec Technical Assistance Centre through your retailer. Scheduled maintenance must include: •... -
Page 30: Chap.09 Fault Diagnosis And Troubleshooting
09.1 PROBLEMS WARNING In accordance with the laws in force on safety for electrical appliances, a Jolly Mec Technical Assistance Centre or qualified personnel must obligatorily be contacted for all installation, maintenance or interventions that require access to electrical parts. - Page 31 NOTES...
- Page 32 Via S.Giuseppe 2 - 24060 Telgate (Bg) Italy Tel. +39 035.83.59.211 Fax +39 035.83.59.203 www.jolly-mec.it - info@jolly-mec.it...
