ASSEMBLY

Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. Most people find that by
setting aside plenty of time, assembly will go
smoothly.
To hire an authorized service technician to
assemble the exercise bench, call toll-free
1-800-445-2480.
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.

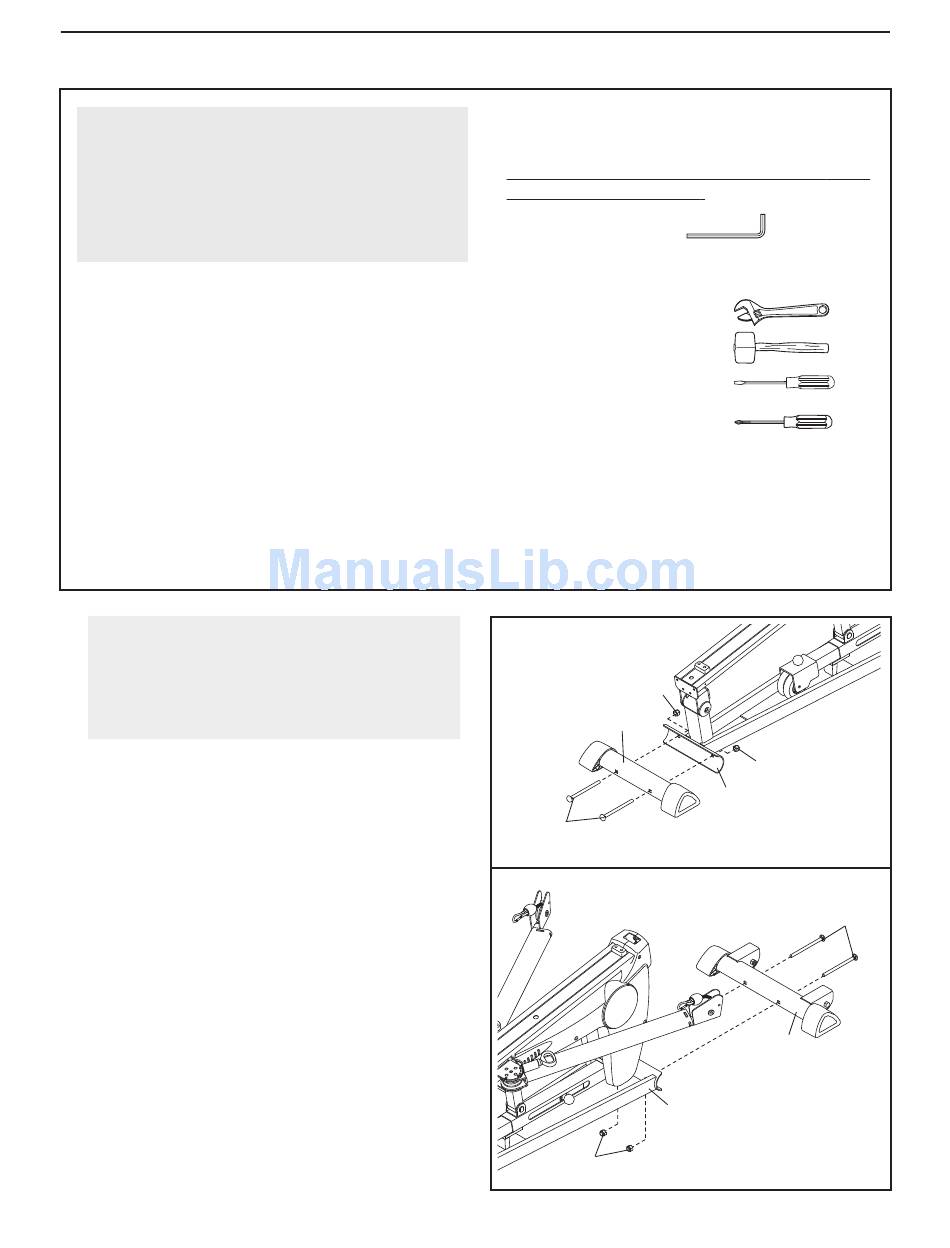

1.
Before beginning assembly, make sure you
understand the information in the box
above. For help identifying small parts, use
the PART IDENTIFICATION CHART in the
center of this manual.
Attach the Front Stabilizer (3) to the Base (1) with
two M10 x 78mm Carriage Bolts (50) and two
M10 Nylon Locknuts (64). Do not tighten the
Locknuts yet.
2. Attach the Rear Stabilizer (2) to the Base (1) with
two M10 x 78mm Carriage Bolts (50) and two
M10 Nylon Locknuts (64).
Tighten the M10 Nylon Locknuts (64) used in
steps 1 and 2.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART

IDENTIFICATION CHART.

The included hex key(s)
following tools (not included) may be required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Clear tape or masking tape, and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1
64
3
50
2
64
5
, and the
64
1
50
2
1
