ASSEMBLY

Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. Most people find that by
setting aside plenty of time, assembly will go
smoothly.
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two persons.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.

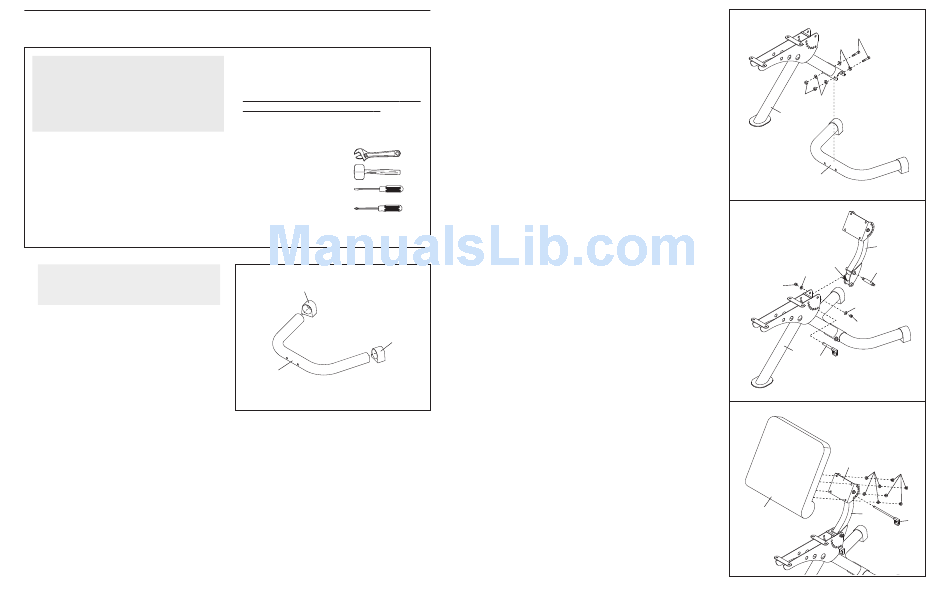

1.
Before beginning assembly, make sure you
understand the information in the box
above.
Press two Base Endcaps (12) onto the Base (1).
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
1
12
12
1
6
2. Attach the Frame (2) to the Base (1) with two
M10 x 80mm Bolts (22), four M10 Curved
Washers (19), and two M10 Nuts (21).
3. Attach the Backrest Arm (3) to the Frame (2) with
the Shaft Bolt (9), two M10 Washers (20), and
two M10 Nuts (21).
Fully insert the Short Pin (10) into the Frame (2)
and into the lower tube in the Backrest Arm (3).
4. Attach the Backrest (7) to the Backrest Frame (4)
with four M8 x 20mm Screws (17) and four M8
Washers (18).
Full insert the Long Pin (11) into the Backrest
Frame (4) and the Backrest Arm (3).
2
22
19
21
19
2
1
3
3
Lower
Tube
9
20
21
20
21
2
10
4
4
18
17
7
3
7
11
