ASSEMBLY

Assembly requires two persons. Place all parts of the recumbent cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screw-
driver .

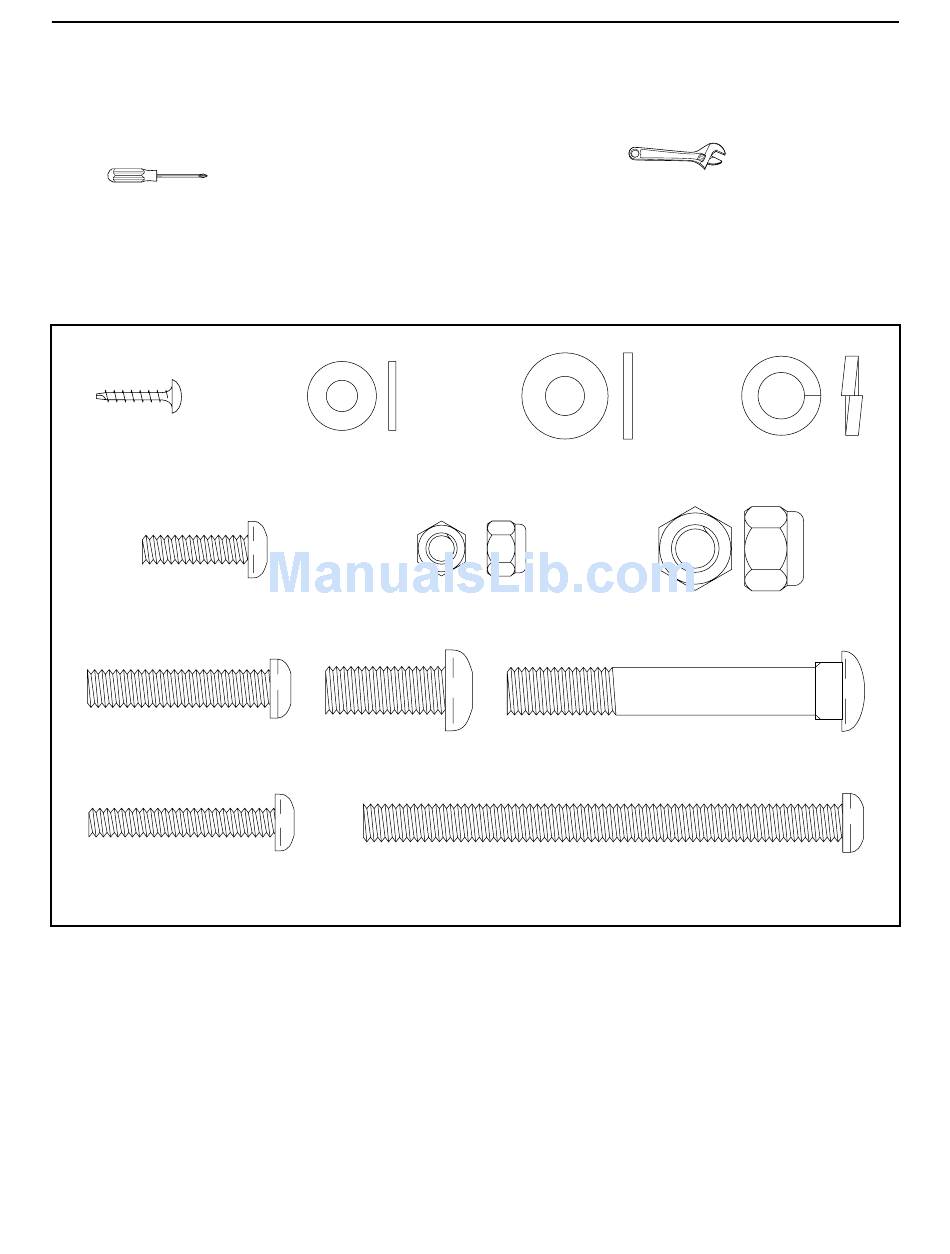

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a
part is not in the parts bag, check to see if it has been pre-attached.
M4 x 16mm M10 Split
M6 Washer (54)–3 M8 Washer (55)–7
Screw (21)–7 Washer (17)–10
M6 x 22mm Button M6 Nylon M10 Nylon
Screw (29)–4 Locknut (15)–4 Locknut (45)–2
M8 x 38mm Button M10 x 25mm Button M10 x 75mm Carriage Bolt (72)–2
Screw (24)–4 Screw (71)–10
M6 x 38mm Button M8 x 100mm Button Screw (63)–3
Bolt (14)–7
4
