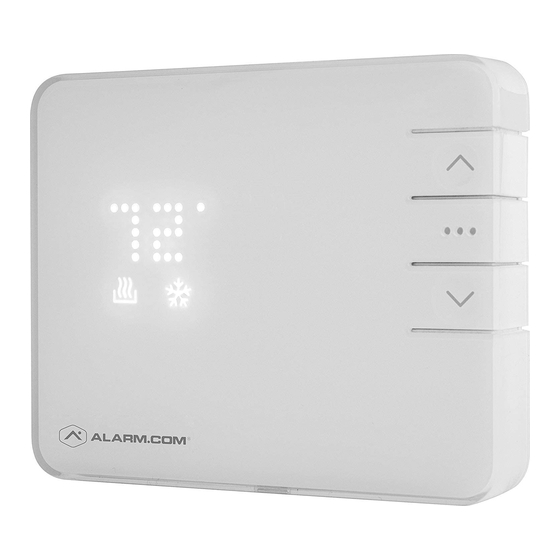

Alarm.com Smart Thermostat (ADC-T2000) Installation Guide
• Before installing or servicing the thermostat, turn off
power to the system at the circuit breaker.
• Leave power off until you have finished installing or
servicing.
• Shorting the electric terminals at the control on the
heating or cooling system may damage the thermostat.
Do not test the system this way.
• You must follow all local codes and ordinances for
wiring the system

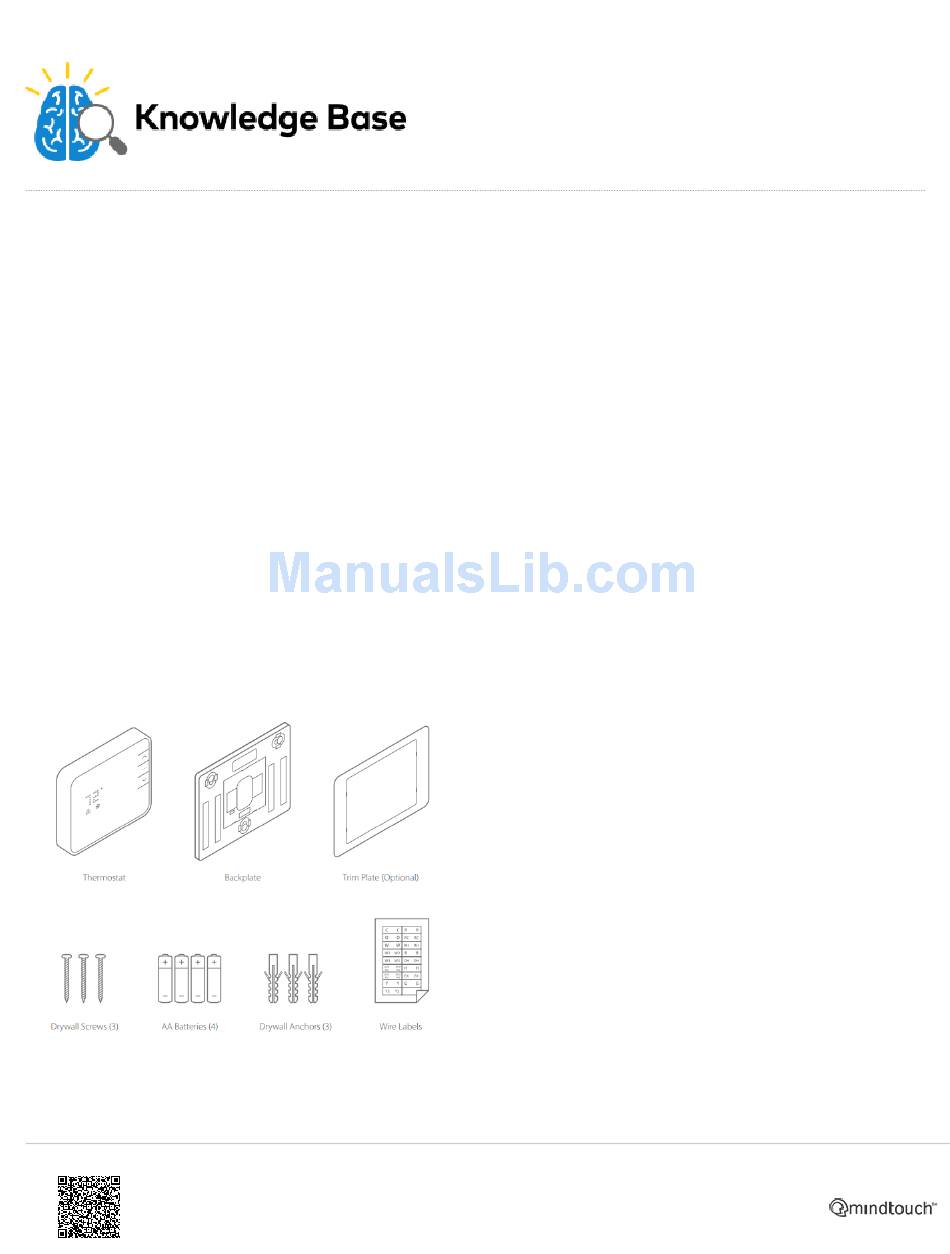

Box Contents

https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2
• This thermostat should only be powered by 4 AA
alkaline batteries or a listed class 2 power supply at 24
VAC (C-Wire or wall transformer).
• An amperage higher than 1 amp to each thermostat
relay load may cause damage to the thermostat.
• Verify that the system is 24 VAC. If the old system is
labeled as 120 or 240 volts or has wire nuts, the system
is high voltage. Do not install the thermostat to a high
voltage system. Contact a local HVAC professional for
help.
Updated: Sun, 15 Oct 2017 23:38:59 GMT
Powered by
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADC-T2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alarm.Com ADC-T2000

Summary of Contents for Alarm.Com ADC-T2000

  • Page 1 Alarm.com Smart Thermostat (ADC-T2000) Installation Guide • This thermostat should only be powered by 4 AA • Before installing or servicing the thermostat, turn off alkaline batteries or a listed class 2 power supply at 24 power to the system at the circuit breaker.

  • Page 2: Thermostat Overview

    Adjust target temperature up. Will activate the heating system. AUTO mode. Change thermostat between HEAT, Illuminated in COOL or AUTO mode. COOL, AUTO, EMER and OFF Will activate the air conditioner. modes. https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 3 • Install in a location with good air circulation. Stagnant air will not accurately reflect the rate of temperature change in the room. Avoid areas behind open doors, corners, and alcoves. https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 4 CAUTION: DO NOT REMOVE the existing thermostat until power has been turned off at the circuit breaker. Once power to the heating AND cooling systems is off, follow these steps: 3. Remove Thermostat Cover https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 5 • Ensure the wires are a proper gauge between 18-24 AWG. • Make sure wires have exposed straight ends about 1/8” long. CAUTION: Wiring can vary for each manufacturer. Label all wiring before removing it from the existing thermostat. https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 6 • If you have R, connect it to RH. • If you have RH & RC, remove the black jumper in the lower left corner of the back plate terminal board with needlenose pliers. https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 7 • Z can be used for W3, H, DH, or O/B Zoning https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 8 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 9 Press the thermostat body firmly into the back plate mounted to the wall. Ensure that the pins on the body are correctly aligned with the header attached to the terminal board on the back plate. Failure to do so could cause damage to the thermostat. https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 10 Restore power to all the heating and cooling systems. This can be done at the circuit breaker. Connect the Thermostat to the System 1. Put the thermostat in OFF mode (No mode icons are lit). https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 11 4. When the RADIO icon becomes solid, the thermostat has been included. 5. Login to your online account (www.alarm. com/login) to sync the thermostat with the Alarm.com system, or contact an Alarm.com professional for installation setup. CONFIGURE THE SYSTEM The thermostat configuration will be done on your online account.
  • Page 12 3. Press and hold the UP button again for 5 seconds until the display shows your HVAC setup. 4. Press the UP or DOWN buttons to select the thermostat configuration from the table below. 5. Press the MODE button to confirm your selection. https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 13 • When in EMER mode, the display will read EMER when the thermostat wakes up and the HEAT icon will be displayed. Changing the mode will leave EMER mode. • In AUTO, the brighter icon will indicate which set point is currently displayed and active HEAT or COOL . https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...

  • Page 14: Troubleshooting

    If the “C” Wire is removed, this kind of activity will drain the battery very quickly. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
  • Page 15 Note: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. https://answers.alarm.com/Installation_and_Troubleshooting/Thermostats/Z-Wave_Thermostats/Alarm.com_Smart_Thermostat_(ADC-T2 Updated: Sun, 15 Oct 2017 23:38:59 GMT Powered by...
