ASSEMBLY INSTRUCTIONS

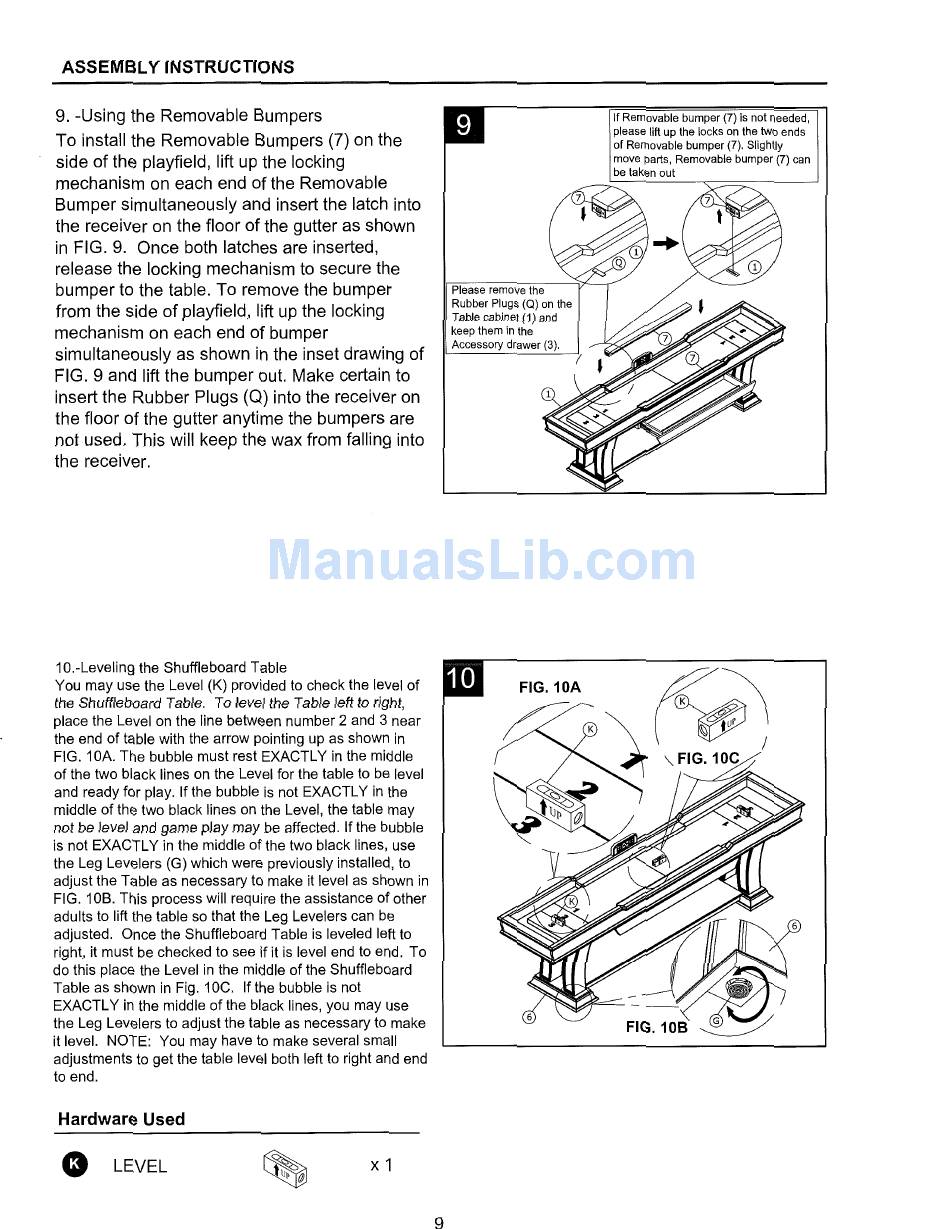

9. -Using the Removable Bumpers
To install the Removable Bumpers (7) on the
side of the playfield, lift up the locking
mechanism on each end of the Removable
Bumper simultaneously and insert the latch into
the receiver on the floor of the gutter as shown
in FIG. 9. Once both latches are inserted,
release the locking mechanism to secure the
bumper to the table. To remove the bumper
from the side of playfield, lift up the locking
mechanism on each end of bumper
simultaneously as shown in the inset drawing of
FIG. 9 and lift the bumper out. Make certain to
insert the Rubber Plugs (Q) into the receiver on
the floor of the gutter anytime the bumpers are
not used. This will keep the wax from falling into
the receiver.
10.-Leveling the Shuffleboard Table
You may use the Level (K) provided to check the level of
the Shuffleboard Table. To level the Table left to right,
place the Level on the line between number 2 and 3 near
the end of table with the arrow pointing up as shown in
FIG. 1 OA. The bubble must rest EXACTLY in the middle
of the two black lines on the Level for the table to be level
and ready for play. If the bubble is not EXACTLY in the
middle of the two black lines on the Level, the table may
not be level and game play may be affected. If the bubble
is not EXACTLY in the middle of the two black lines, use
the Leg Levelers (G) which were previously installed, to
adjust the Table as necessary to make it level as shown in
FIG. 108. This process will require the assistance of other
adults to lift the table so that the Leg Levelers can be
adjusted. Once the Shuffleboard Table is leveled left to
right, it must be checked to see if it is level end to end. To
do this place the Level in the middle of the Shuffleboard
Table as shown in Fig. 1 OC. If the bubble is not
EXACTLY in the middle of the black lines, you may use
the Leg Levelers to adjust the table as necessary to make
it level. NOTE: You may have to make several small
adjustments to get the table level both left to right and end
to end.
Hardware Used
0
LEVEL X
1
9
Please remove the
Rubber Plugs (Q) on the
Table cabinet (1) and
keep them in the
Accessory drawer (3).
FIG.10A
6
If Removable bumper (7) is not needed,
please lift up the locks on the two ends
of Removable bumper (7). Slightly
move parts, Removable bumper (7) can
be taken out
6
FIG.10B
