7. Making Automated
Measurements
Automated measurements use the processing power of
the scope to provide a frequency, time, amplitude, and
area measurements.
1. Connect passive probes to Channel 1 and
Channel 2. Connect both probe tips to Probe
Comp and both ground clips to Probe Comp
ground.
2. Press Autoset.
3. Press the Measure button in the resource section
of the front panel.
4. Notice, from top to bottom:
• Measurement selection indicator bar
• Snapshot button
• Most Used measurement list
• Measurements grouped by Frequency, Time,
Amplitude, Area
5. Press the CH1 bezel button. Scroll and press
MPK to select Frequency and +Duty for Channel
1.
6. Press the CH2 bezel button. Scroll and press
MPK to select Peak-Peak and Mean for Channel
2 (Figure 12).
7. Press Menu On/Off to return to the waveform
window.
8. Note the measurement readout (Figure 13).
9. Press Menu On/Off a couple of times to hide and
recall the measurement readout panel .
28 JULY 2016

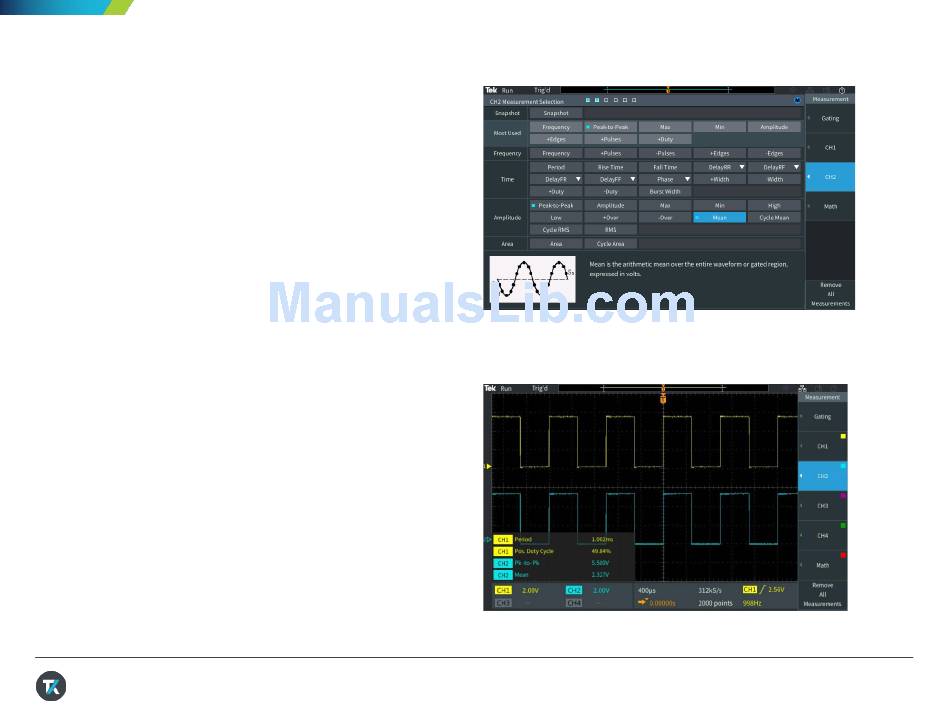

Figure 12. Peak-Peak and Mean measurements selected
for Channel 2. Note the two blue boxes in the
measurement selection indicator at the top of the display.
Figure 13. Transparent readouts let the signal show
through.
