3. Using Autoset to Acquire a
Waveform
Autoset can often provide a stable signal display,
automatically.
1. Attach a TPP0100 passive probe to the
Channel 1 BNC connector. Clip the probe tip
to the Probe Comp output. Clip the ground
clip to the Probe Comp ground terminal.
2. Press Default Setup in Resources section of
the front panel. This will set the scope into
it's default state.
3. Press Autoset at the top of the front panel to
automatically acquire and display the 5 Vpp,
1 kHz waveform from the probe
compensation output
28 JULY 2016

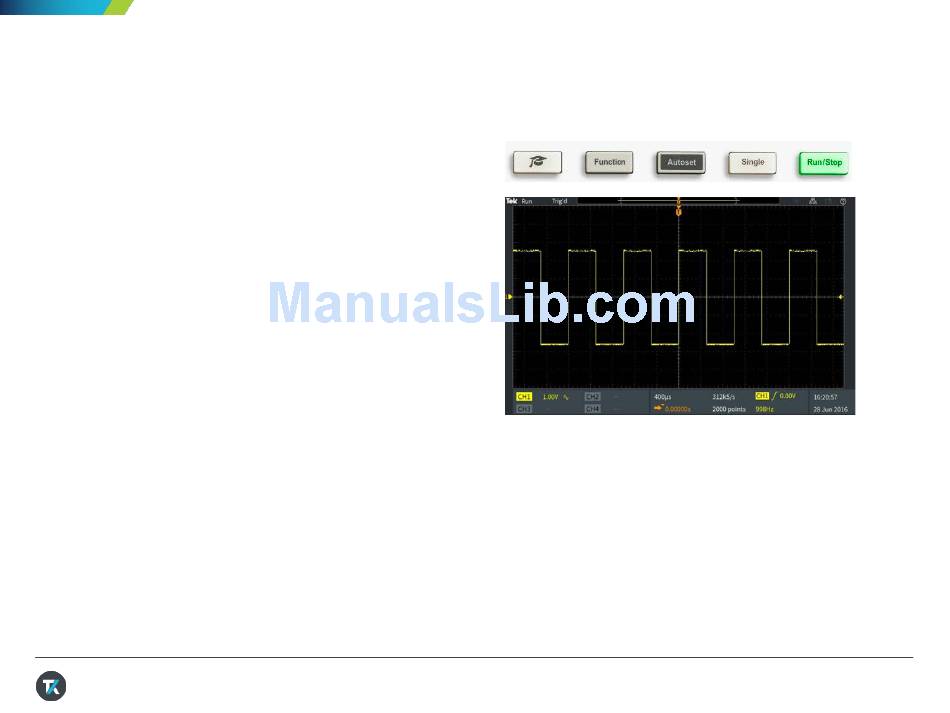

Figure 5. Autoset button and display after pressing
autoset
