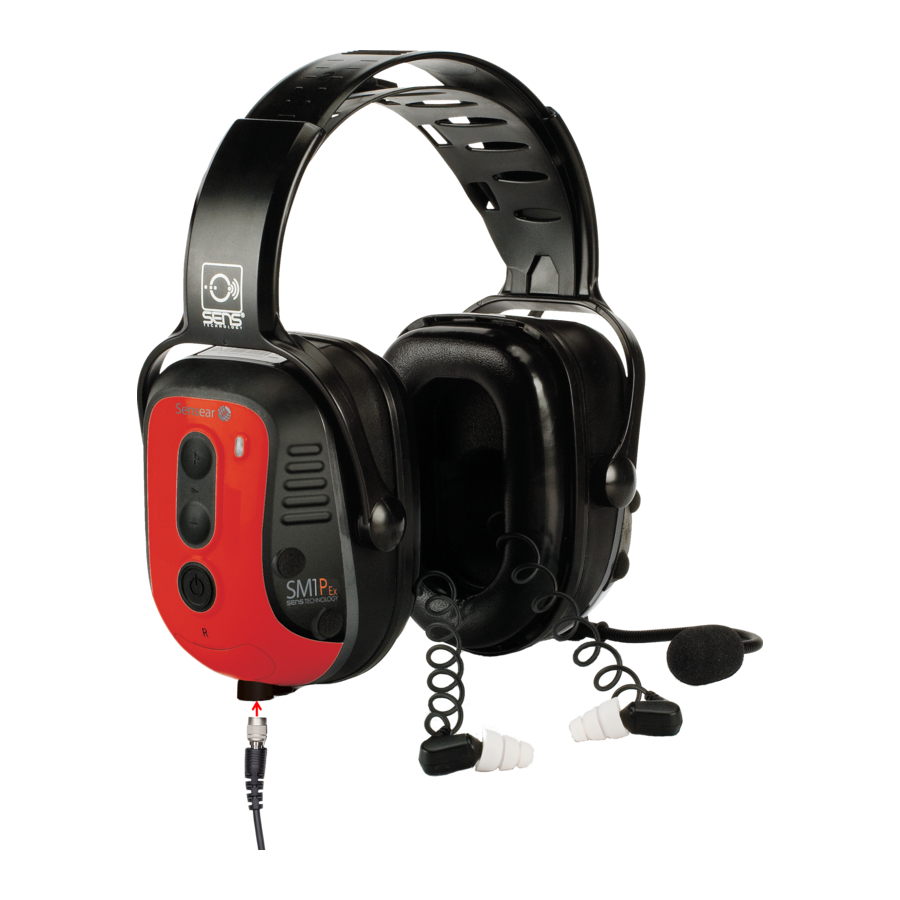

Sensear SM1P Manual
  1. Manuals
  2. Brands
  3. Sensear Manuals
  4. Headphone
  5. SM1P
  6. Manual

Sensear SM1P Manual

Hide thumbs Also See for SM1P:
Table of Contents

Advertisement

Quick Links

Download this manual
SM1P/B
MANUAL
ENGLISH
DOC00084 Rev.14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM1P and is the answer not in the manual?

Questions and answers

Related Manuals for Sensear SM1P

Summary of Contents for Sensear SM1P

  • Page 1 SM1P/B MANUAL ENGLISH DOC00084 Rev.14...
  • Page 3 INTRODUCTION The SM1P/B is a state-of-the-art hearing protection (i.e., protects against harmful noise) communication system that allows you to retain situational awareness whilst remaining in full contact with your team via Short-Range technology, as well as two-way radio or cellular device via Bluetooth®...

  • Page 4: Maintenance And Safety Instructions

    WARNING The IS/Ex headset must not be disassembled. In the event of a malfunction the unit should be switched off and returned to Sensear Pty Ltd. The battery is not user replaceable; the IS/Ex headset must be returned to Sensear for battery replacement. Substitution of components may impair Intrinsic Safety.
  • Page 5 HEADSET ANATOMY FIGURE 1 DOC00084 SM1P/B Manual rev 14.00...
  • Page 6 M5 Hex screw Connector - 2.5mm Audio jack 1.12 Inline PTT 1.13 Inline PTT button Two-way radio connector(Note: these will vary depending on your two-way 1.14 radio) Radio cable assembly 1.15 1.16 To the two-way radio DOC00084 SM1P/B Manual rev 14.00...

  • Page 7: Wearing The Headset

    WEARING THE HEADSET FIGURE 2 Description Headset Boom microphone Inline PTT Two-way radio DOC00084 SM1P/B Manual rev 14.00...

  • Page 8: Fitting The Headset

    The SM1P/B headset is designed to be worn with the headset sealing around the ears. Specific examples of how to fit the headset around the ears are covered in the next three pages. The fit does alter slightly depending on what style of brace is used - headband, Behind-the-Neck or mounted to a helmet directly.
  • Page 9 The ear cushions should seal firmly against the head For best results, remove all hair from under the ear cushion Noise reduction will be adversely affected by anything that breaks the seal of the ear cushions DOC00084 SM1P/B Manual rev 14.00...
  • Page 10 Ensure no hair is inside the ear cushions Fit the earmuffs over the ears, ensuring a tight fit around the ears Ensure the muff surrounds the ears Press down on the headband to obtain a snug and comfortable fit DOC00084 SM1P/B Manual rev 14.00...
  • Page 11 Three adhesive mounts and ties are included to secure the earmuff cable to the helmet. The mounts should be evenly spaced around the rear outside of the helmet. Fit the tie through the mount. The cable should feed through each tie and secured in place. DOC00084 SM1P/B Manual rev 14.00...
  • Page 12 Place the earmuff back over the ears. Ensure the retractable, coiled cable is fully located within the ear cup. Noise reduction will be adversely affected by anything that breaks the seal of the earmuff cushions. DOC00084 SM1P/B Manual rev 14.00...
  • Page 13 Make sure the plug seals well into the ear canal. The ear tip should not protrude out of the ear canal. If using foam ear tips hold the plug-in place for 20 seconds or until the foam has fully expanded. DOC00084 SM1P/B Manual rev 14.00...

  • Page 14: Power Off

    The power button toggles between Quiet mode and mode • The volume control buttons can be used to raise or lower the audio level of the mode • **The default mode on powerup can be programmed using the Sensear app DOC00084 SM1P/B Manual rev 14.00...

  • Page 15: Quiet Mode

    Short-Range – region Short-Range – channel frequencies FM Radio – enable/disable VOX – feature assignment VOX – trigger level A short press and release of the power button will cycle through these options when in setup mode. DOC00084 SM1P/B Manual rev 14.00...
  • Page 16 Changing Short-Range Region: Ensure you hear “Short-Range FM region”. Increment/decrement through regions (short) 1, 2 or 3. FM frequency range Region EIRP (uW) Standards (MHz) 8.02 AS/NZS 4268 88.1 – 107.9 0.048 EN301357-1 88.1 – 107.9 FCC-15.239/ 0.012 88.1 – 97.0 IC RSS-210 DOC00084 SM1P/B Manual rev 14.00...
  • Page 17 Toggle between “enable” and “disable”. (short) Changing VOX Assignment: Ensure you hear “VOX setup”. Toggle between “disable” and “Short- (short) Range” Changing VOX Trigger Level: Ensure you hear “VOX level”. cycle through “low,” “medium,” and “high” trigger levels (short) DOC00084 SM1P/B Manual rev 14.00...
  • Page 18 Refer to the two-way radio documentation for the setup and use of the VOX feature. To disable VOX, you can either turn VOX off on the two-way radio or press the headset PTT once, depending on which two-way radio model you use. DOC00084 SM1P/B Manual rev 14.00...
  • Page 19 If VOX is assigned to Short-Range, when Short-Range turns on, you will hear the Short-Range frequency announcement and then “VOX on”. VOX can be toggled on and off: Toggle VOX on and off (while Short-Range is turned on) (short) DOC00084 SM1P/B Manual rev 14.00...
  • Page 20 When a Bluetooth® phone call is entered, FM radio audio is muted. It will return when the call ends. When the headset is powered off it remembers the last tuned FM radio frequency and the FM radio on/off state. DOC00084 SM1P/B Manual rev 14.00...
  • Page 21 Incoming call From handset Press and release MFB Reject call: From handset Press and hold multi-function button End call: During call From handset Press and hold multi-function button Call hung up on the far end DOC00084 SM1P/B Manual rev 14.00...
  • Page 22 Two-Way Radio Bluetooth®: To transmit, use the radio’s PTT. For some select devices, MFB will perform as a Bluetooth® PTT (if Short-Range is off). Contact a Sensear representative for compatible devices. Bluetooth® Phone Call: During a Bluetooth® phone call, if two-way radio or Short-Range are transmitting, outgoing Bluetooth® is muted while incoming audio is still heard.
  • Page 23 Cushions can be removed simply by gripping the cushion and pulling firmly to unclip from the baseplate. Replacement cushions may be pushed into the clips around the baseplate. The headset should be stored at room temperature (between 15°C/59°F and 25°C/77°F). DOC00084 SM1P/B Manual rev 14.00...

  • Page 24: Accessories And Spare Parts

    Smart Muff Boom Microphone Wind Sock x5 SMPW0001 Wall Charger 5.5V 1.0A PRGTAB01 Programming Tablet Further information may be obtained from your Sensear representative, via the Sensear website, or by emailing or writing to the address on this User Manual. DOC00084 SM1P/B Manual rev 14.00...
  • Page 25 To charge the headset, follow the steps below: Plug the Sensear AC adapter into an appropriate power outlet. Insert the cable end of the Sensear AC adapter into the DC power socket on the SM1P headset (located on the right- hand-side of the unit).
  • Page 26 SENSEAR will at its absolute discretion repair or replace the Product where a defect in material or workmanship occurs, at no charge to the end user for parts or labor. SENSEAR reserves the right to replace the Product with the same or equivalent part or Product rather than repair it.
  • Page 27 • All other warranties, conditions, terms, representations, and undertakings whether express or implied. How to Get Warranty Service To register your product visit: sensear.com/support/headset-registration If you require warranty service visit: sensear.com/support/returns-repairs-new DOC00084 SM1P/B Manual rev 14.00...

  • Page 28: Troubleshooting

    If the receiver cannot hear your voice and you can only hear the background noise: • Refer to the ‘Wearing the headset’ chapter of the manual. Ensure that your boom microphone is set up appropriately. DOC00084 SM1P/B Manual rev 14.00...

  • Page 29: Technical Information

    SM1P/B TECHNICAL INFORMATION Rev: 6/30/22 For most recent technical information, visit sensear.com/support/technical-information...

  • Page 30: Fcc Compliance Statement

    (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation FCC ID: XKS-SM1xSR IC: 8376A-SM1XSR FCC ID: QOQWT32I IC:5123A BGTWT32I DOC00084 SM1P/B Manual rev 14.00...

  • Page 31: Declaration Of Conformity

    DECLARATION OF CONFORMITY For most recent Declaration of Conformity, please visit sensear.com/support/declaration-of-conformity...

  • Page 32: Technical Specifications

    0°C to +40°C (32°F to 104°F) Temperature Non-Intrinsically Safe Intrinsically Safe 2650mAhLithiumPolymer, 2250mAhLithiumion, Battery Type rechargeable rechargeable Battery Charge Time 7 hours 4 hours Operating Time 24 hours 18-24 hours Housing Material PP, ABS + TPE RoHS Compliant DOC00084 SM1P/B Manual rev 14.00...
  • Page 33 NRR AND SLC80 The SM1P/B has been certified to international hearing protection standards including AS/NZS 1270:2002, ANSI S3.19-1974, ANSI S12.6-2008, EN352-1, EN352-3, EN352-4, and EN352-6. The following passive attenuation ratings were observed: PASSIVE ATTENUATION (ANSI S3.19 -1974) SM1P/B measured in accordance with ANSI S3.19 -1974.
  • Page 34 PASSIVE ATTENUATION (ANSI S12.6 – 2008) SM1P/B measured in accordance with ANSI S12.6 - 2008. Headband mount - SM1PBXXX &SM1BBXXX Frequency (Hz) 1000 2000 4000 8000 NRR (SF) 21.4 21.9 29.8 33.7 35.8 37.2 38.5 Mean attenuation (dB) Standard 27dB...
  • Page 35 PASSIVE ATTENUATION (AS/NZS 1270:2002) SM1P/B measured in accordance with AS/NZS 1270:2002. Headband mount - SM1PBXXX &SM1BBXXX Frequency (Hz) 1000 2000 4000 8000 (80) Mean 20.3 21.7 30.3 33.2 35.2 36.6 37.3 attenuation(dB) Standard 31dB, deviation(dB) Class 5 Mean atten. –...
  • Page 36 PASSIVE ATTENUATION (EN352-1 AND EN352-3) SM1P/B measured in accordance with EN352-1 and EN352-3. Headband mount- SM1PBXXX & SM1BBXXX (EN352-1) Frequency (Hz) 1000 2000 4000 8000 (dB) Mean attenuation (dB) 22.5 24.5 31.5 34.9 35.8 38.0 39.8 Standard deviation (dB) 35 30 24 Mean attenuation –...
  • Page 37 The SM1P/B has level dependent facilities and the criterion levels as defined in EN352-4 are displayed below: Model dB(A) SM1P/B 108.6 104.6 103.4 EARMUFFS WITH ELECTRICAL AUDIO INPUT (EN352-6) SLC [80] NRR[SF] ANSI S3.19-1974 AS/NZS 1270:2002 EN352-1 andEN352-3 ANSI S12.6 – 2008 Australia US &...

  • Page 38: Maintenance And Cleaning

    • The output of the level-dependent circuit of this hearing protector may exceed the daily limit sound level. This limit can be adjusted with a Sensear programming tablet. • This headset has been tested and approved according to the methods described in the EN352 series of standards.

  • Page 39: Clamping Force

    SM1PBXXX Newtons 11.6 11.1 11.1 11.1 10.7 11.1 Headband & SM1BBXXX mount Pounds (lbs) SM1P/B – 14.2 14.7 14.2 14.2 14.7 14.2 SM1PEXXX Behind-the- Neck mount & SM1BEXXX SM1PHXXX SM1P/B – & Helmet mount SM1BHXXX DOC00084 SM1P/B Manual rev 14.00...
  • Page 40 INTRINSICALLY SAFE CERTIFICATION – IS MODEL The SM1P-IS & SM1B-IS meet the following international standards for use in explosive gas environments: TIA-4950-A Rev. May 13,2014 • Requirements For Battery-Powered, Portable Land Mobile Radio Applications in Class I, II, III, Division 1, Hazardous (Classified) Locations CSA C22.2 No.
  • Page 41 Where “XXXX” is the number of the ATEX Notified Body responsible for the ATEX QAN. ENTITY PARAMETERS The following entity parameters are for when SM1P Ex is used with SRCK61xxCCxx or SRCK62xxCCxx at the radio end of the interface cable. Entity parameter...

  • Page 42: Copyright Notice

    While Sensear Pty. Ltd. makes every effort to ensure that the information in this document is correct at the time of publication, users and potential users should first check with Sensear Pty. Ltd. to ensure that they have received the most up-to-date documentation.
  • Page 43 Waste (Disposal) of your Electronic and Electric Equipment European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive The European Union’s WEEE directive requires that products sold into EU countries must have the crossed- out trash bin label on the product (or the package in some cases). As defined by the WEEE directive, this cross- out trash bin label means that customers and end-users in EU countries should not dispose of electronic and electrical equipment or accessories in household waste.
  • Page 44 La direttiva de la Unione Europea (EU) sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE) Ladirettiva RAEE della Unione Europea richiede che i prodotti venduti nei paesi della UE devono essere marcati conil simbolo di un contenitore di spazzatura mobile barrato sul prodotto (oincasi eccezionali sull'imballaggio).
  • Page 46 Printed in Australia...

This manual is also suitable for:

Sm1bSm1p seriesSm1b series
