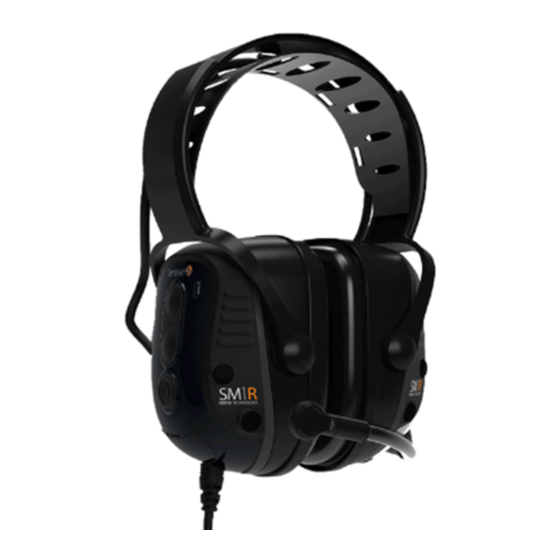

Sensear SM1R User Manual

SUPPORT
For technical support, please contact the following:
Australia:
199 Great Eastern Highway,
Belmont, 6104, Western Australia
Tel (toll free): 1300 859 120
Tel: +61 8 9277 7332
US, Canada, Latin America and Europe:
3350 SW 148th Avenue, Suite 110
Miramar, FL 33027
Tel: 1 888 973 6732
Email:
admin@sensear.com
12
COMMUNICATING
COMMUNICATING OVER TWO-WAY RADIO:
To transmit over the two-way radio:
• Press and hold the button located on the Inline PTT.
• Release the Inline PTT button to cease transmission.
• To change the volume of the two way radio communications,
use the two way radio's volume controls.
Notes:
• When the headset is powered off (and disconnected from the
inline PTT), the inline PTT button may not activate the two-way
radio. The PTT located on the two-way radio should be used.
• When the headset is powered on, the two-way radio PTT may
not activate the two-way radio.
VOX
VOX can be used on VOX enabled two-way radios. Refer to the
two-way radio documentation for the setup and use of the VOX
feature.
When talking into the boom microphone using the VOX function,
expect an activation delay. A typical method to activate the VOX
command is to breathe into the microphone or speaking a simple,
one syllable word (such as "talk").
Notes:
• The VOX function can be found to activate in windy conditions or
conditions where there is a lot of background noise. Sensitivity
adjustments can only be made by the two-way radio.
• Ensuring there is a wind sock on the boom microphone should
help avoid activation by wind noise, but may not eliminate the
issue.
10
INTRODUCTION
1
USER GUIDE
For additional product information and
language translations,
see the following web page:
www.sensear.com/support/product-manuals
DOC00074 Rev.02
1
*Headband style is shown in this
diagram.
Behind the neck, and helmet mount
options are available.
Volume Up Button
Volume Down Button
Power Button
Hatch cover
for programming only
R
Headband*
Ear
Cushions
E ar cushions
Microphones
Headset cable
Headset connector
3
English
Button not used
L
Boom Microphone
Mount - M5 Hex Screw
Connector - 2.5mm Audio Jack
SRCK60XX Cable assembly
Inline PTT
Two-way radio connector
(note these will vary depending
on connector)
