Summary of Contents for Trust DC-4700 POWERCAM OPTICAL ZOOM

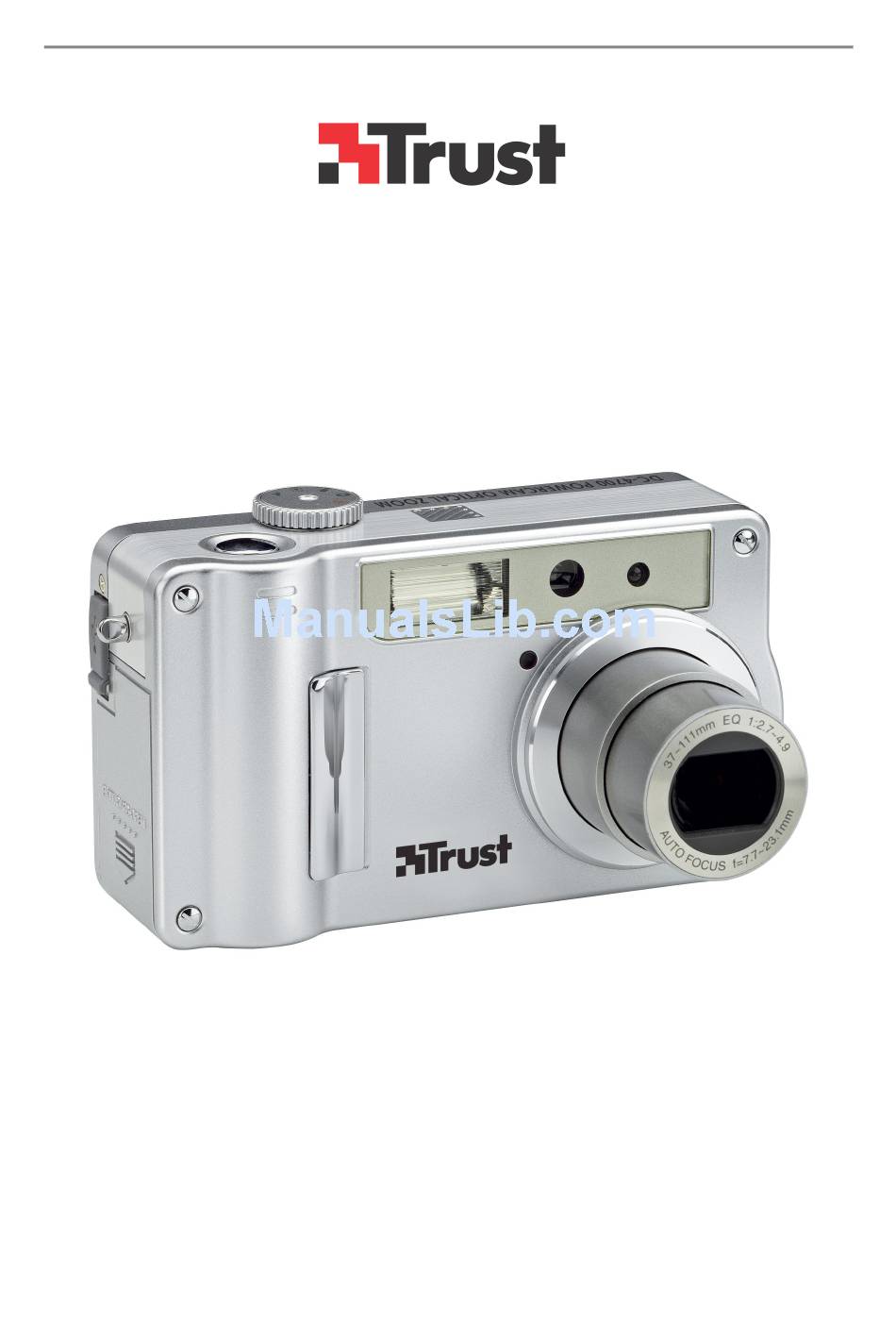

- Page 1 DC-4700 POWERCAM OPTICAL ZOOM Digital Camera User’s Manual All specifications and information are subject to changes without further notice...
- Page 2 DC-4700 POWERCAM OPTICAL ZOOM Warning TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE FOR AMERICAN USERS AND CANADA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
- Page 3 DC-4700 POWERCAM OPTICAL ZOOM Contents 1. Quick Start for using camera Identifying the parts Charging battery pack Battery pack installation and uninstallation SD Memory Card installation and uninstallation Formatting an SD card Camera power on/off Date and Time configuration Language selection 2.
-
Page 4: Quick Start For Using Camera

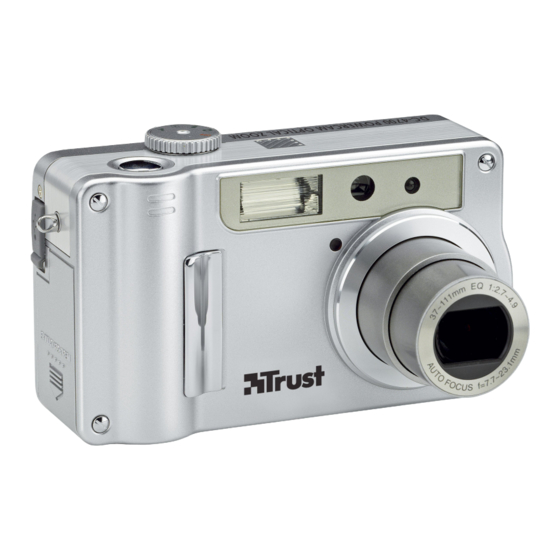

DC-4700 POWERCAM OPTICAL ZOOM 1. Quick Start for using camera Identifying the parts - Knowing your camera and its features Mode Dial Flash AF assisted LED Optical ViewFinder Self-Timer LED Zoom Lens Front Elevation Mode Dial Optical Viewfinder Zoom Key Strap Holder ringlet AF &... -
Page 5: Mode Dial
DC-4700 POWERCAM OPTICAL ZOOM Strap holder ringlet USB rubber cover Mini USB interface SD MemoryCard and Battery compartment door End Elevation Mode Dial - Power Off - Still Image Mode - Video Mode - Playback Mode - Setup Mode LCD Panel icons representation... -
Page 6: Charging Battery Pack
DC-4700 POWERCAM OPTICAL ZOOM LCD Status icons 2304 x 1712 2720 x 2016 Charging battery pack 1. Connect the AC plug cord to the battery charger and insert the power plug into the power source outlet. 2. Insert the battery pack (NB-1L model) into the charger as illustrated below with the arrow symbol pointing towards the charging point. -
Page 7: Sd Memory Card Installation And Uninstallation
DC-4700 POWERCAM OPTICAL ZOOM Push In Mark Close the battery compartment cover. Open battery compartment cover on the digital camera side. Insert the Battery pack SD Memory Card installation and uninstallation - Be sure to turn off your camera when opening the Battery compartment / SD card cover 1. -
Page 8: Date And Time Configuration
DC-4700 POWERCAM OPTICAL ZOOM Power Saving Camera has power saving. To wake up, press Shutter. Date and Time configuration 1. Turn the Mode Dial to Setup mode 2. Press DATE FORMAT, and then press OK or 3. Press and then OK to set Date/Time format. Press OK 4. -
Page 9: Basic Still Image Capturing
DC-4700 POWERCAM OPTICAL ZOOM 2. Basic Still Image Capturing - Capturing your favorite or important moments or subjects of concern 1. Turn the Mode Dial to (Still Image Capturing mode), and LCD will be automatically turned on with a red focus cursor in the center. -
Page 10: Shooting Without The Use Of Lcd Monitor
DC-4700 POWERCAM OPTICAL ZOOM Continue shots – Camera takes 3 continuous shots after the shutter button is depressed. Voice mode – For recording voice memo after picture capturing (within 15 sec). Press Shutter to stop recording. Press to enable Manual focus mode... - Page 11 DC-4700 POWERCAM OPTICAL ZOOM Fine Normal Basic Metering 3 different ways of measuring your subject (s) light exposure levels. Center Center-weight: light is measured from the entire shooting screen, but gives more importance to the values near the center. Multi Multi-section: light is measured by sampling from multiple areas of the entire shooting screen.
- Page 12 DC-4700 POWERCAM OPTICAL ZOOM Sharpness This adjustment makes the subject sharper, and clearer before a shot is taken for different subject themes. Sharpen Medium Color Effect There are 3 types of color effects that can be applied to your images before capturing.
-
Page 13: Video Capturing
DC-4700 POWERCAM OPTICAL ZOOM 3. Video Capturing Basic video capturing 1. Turn the Mode Dial at the top to the Video mode, and LCD will be turned on. 2. Hold the camera steadily with both hands and frame the subject (s) 3. -
Page 14: Replay Recorded Image/Video
DC-4700 POWERCAM OPTICAL ZOOM 4. Replay recorded image/video 1. Turn the Mode Dial at the top to Playback mode, and LCD will be turned on and display 9-index of stored pictures 2. Press to select the picture/video, and then press OK to enlarge the picture/video, and then can... - Page 15 DC-4700 POWERCAM OPTICAL ZOOM Voice Memo Play recorded voice memo or add/replace voice memo onto the image file. Record Play Erase Protect Add this secure function to each file to make it inerasable/erasable. Single On All On Single Off All Off DPOF You can mark still images that you want to have printed.
-
Page 16: Choose Images To Print
DC-4700 POWERCAM OPTICAL ZOOM 5. Choose Images to Print - You can mark still images that you want to have printed. This function is convenient when you have images printed at a shop or using a printer that conforms to the DPOF (Digital Print Order Format) standard. -
Page 17: Installing Usb Driver Software (For Windows 98Se Only)
DC-4700 POWERCAM OPTICAL ZOOM 6. Installing USB Driver Software (For Windows 98SE only) Install the software only if you are using Windows 98SE. If you are using Windows ME/2000/XP, you do · not need to install it. Do not connect the Camera to your Computer before installing the Camera Driver. -
Page 18: More Camera Settings
DC-4700 POWERCAM OPTICAL ZOOM 8. More Camera Settings Turn the Mode Dial on the top to Setup mode, and use Control Pad to configure settings. Auto Power Off Default 1 minute or User defined, set to 0 to disable Auto Power Off (0-5 min; steps of 30 sec) - Page 19 DC-4700 POWERCAM OPTICAL ZOOM Start-up Sound Sound 1 Sound 2 Sound 3 Sound 4 Format...
-
Page 20: Specifications
DC-4700 POWERCAM OPTICAL ZOOM 9. Specifications Recording Format Movie clip: AVI(Motion JPEG) Still image: JPEG format (DCF 1.0, DPOF 1.0 and Exif ver. 2.1) Recording Media Picture Mode Fine/Normal/Basic 1/1.8-inch CCD Sensor Still image : 2720 x 2016 pixels Resolution... - Page 21 DC-4700 POWERCAM OPTICAL ZOOM USB 1.1 Mass Storage Interface Connectivity Power 3.7 V Lithium-ion battery (type NB-1L) Dimension (WxHxD) 102.30mm X 60.10mm X 33.00mm Weight 200.30g ; 173.15g (without battery)
