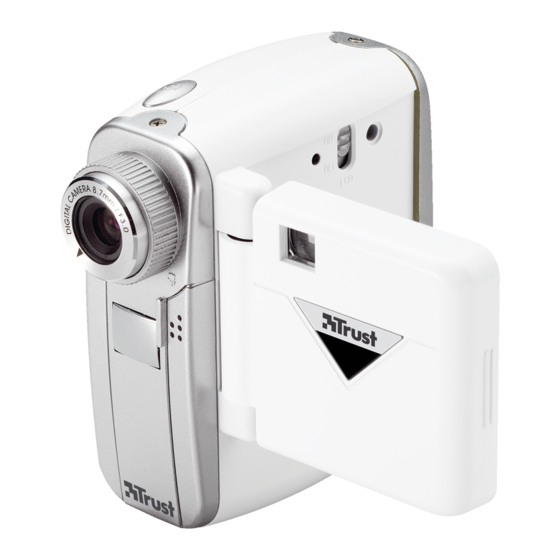

DV-2400V POWERCAM VIDEO
Product information
1:
Shutter button
8:
A/V out connector
2:
Record (video) button
9: LED indicator
3:
Up-button (zoom in) ( )
10: LCD On/Off switch
4:
Down-button (Zoom out)
11: CF card eject switch
( )
12: Viewfinder
5:
MENU/OK button
13: LCD display
Power button
6:
USB Port
7:
Card slot

Table of Contents

Installation batteries.................................................................................................................................... 2
Taking pictures/Recording movies.............................................................................................................. 2
Playback on camera/television ................................................................................................................... 4
Install driver/software on computer............................................................................................................. 5
Connect camera (Disk Mode) ..................................................................................................................... 6
Playback on computer ................................................................................................................................ 7
Connect camera (Live mode/Webcam) ...................................................................................................... 9
Disconnect camera ..................................................................................................................................... 9
Change settings........................................................................................................................................ 10
Insert/remove memory card...................................................................................................................... 11
Error message table ................................................................................................................................. 13
14: Focus switch
15: Lens
16: Microphone
17: Self-portrait mirror
18: Battery cover
19: Tripod port
20: Speaker
21: Strap hook
1
UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERCAM VIDEO DV-2400V and is the answer not in the manual?

Questions and answers

Summary of Contents for Trust POWERCAM VIDEO DV-2400V

  • Page 1: Table Of Contents

    DV-2400V POWERCAM VIDEO Product information Shutter button A/V out connector 14: Focus switch Record (video) button 9: LED indicator 15: Lens Up-button (zoom in) ( ) 10: LCD On/Off switch 16: Microphone Down-button (Zoom out) 11: CF card eject switch 17: Self-portrait mirror 12: Viewfinder 18: Battery cover...
  • Page 2: Installation Batteries

    Installation batteries Open battery cover (18). Insert batteries. Close battery cover. Recommended: use rechargeable Ni-MH batteries (www.trust.com/battery-chargers). Taking pictures/Recording movies Turn on camera: Open LCD panel. Save battery: turn off LCD, look through viewfinder. Turn on/off: also possible with MENU/OK button.
  • Page 3 DV-2400V POWERCAM VIDEO Zoom in (3) or Zoom out (4). Stop recording: Press Video. PICTURE: Press Shutter (1). Recording audio Turn on camera. Press MENU/OK (5) Select “Record Audio”. button.
  • Page 4: Playback On Camera/Television

    DV-2400V POWERCAM VIDEO Start recording: press MENU/OK Stop recording: press MENU/OK Avoid hindering microphone. (16) Playback on camera/television Turn on camera. Press MENU/OK. Select “PLAYBACK”. Enter playback mode: Press MENU/OK. Select Audio/Video/Image: Use button View image full screen: press MENU/OK Start play audio/video file: press MENU/OK Exit playback mode: Press Video...
  • Page 5: Install Driver/Software On Computer

    DV-2400V POWERCAM VIDEO Delete picture Press Shutter. Press Shutter to confirm Connect to television: • Connect video-cable camera • Connect audio/video-cable television (Yellow Video in; White Audio in) • Turn on TV; set to video-input (refer manual Camera video output set to PAL (SETTINGS, TV-System, select PAL) Install driver/software on computer Turn on Computer...
  • Page 6: Connect Camera (Disk Mode)

    DV-2400V POWERCAM VIDEO Follow steps displayed on screen. Press Finish to close installation. After installation driver: • Install Windows Media Player Codec • Install Windows Media Format 9 Series Runtime • Install Direct X Programs necessary for viewing video clips recorded with camera on computer.
  • Page 7: Playback On Computer

    DV-2400V POWERCAM VIDEO Set camera to “DISK MODE” (Use button). Press MENU/OK. Drivers will be installed automatically. Two removable disks (internal memory/CF Card) appear in Windows Explorer/‘My Computer’. No files found at one disk; try other disk. Playback on computer Windows XP 1, 3 Windows 2000, ME, 98SE...
  • Page 8 DV-2400V POWERCAM VIDEO Windows 2000, ME, 98: *.JPG: Picture files Double click “My Computer” *.AVI: Video files Double click “Removable Disk” *.WAV: Audio files Open folder: DCIM / 100MEDIA Copy files to folder “My Documents”. Two removable disks (internal memory/CF Card) appear in Windows Explorer/‘My Computer’.
  • Page 9: Connect Camera (Live Mode/Webcam)

    DV-2400V POWERCAM VIDEO Connect camera (Live mode/Webcam) Turn on computer. Start Windows. Connect USB-cable to computer. Connect USB to camera. Set camera to “LIVE MODE” (Use button). Press MENU/OK. Windows XP/2000: Drivers will be installed automatically. Windows ME/98SE: Drivers will be installed automatically. Some files needed from Windows installation CD- ROM.
  • Page 10: Change Settings

    DV-2400V POWERCAM VIDEO Install additional software Trust Photo Upload Software Application to upload pictures to the Trust PhotoSite (www.trustphotosite.com) Ulead Photo Explorer 8.0 SE Basic Photo Explorer has tools for acquiring, viewing, organizing, adjusting and printing digital images. Cyberlink Power Director 3.0 VE Power Director is an advanced video editing software program.
  • Page 11: Insert/Remove Memory Card

    DV-2400V POWERCAM VIDEO Settings Items Descriptions 640 x 480 Beep Beeps when press button TV System Set TV standard (Europe = PAL) NTSC Language English Set language Deutsch Francais Italiano Nederlands Espanol Portugues Flicker 50 Hz Set flicker to prevent noise (Europe: 50Hz) 60 Hz Display...
  • Page 12 DV-2400V POWERCAM VIDEO Push Eject button. See arrow. Turn off camera first. LCD overview Item Symbol Remarks Still picture/video mode Digital Zoom Zoom factor Self timer 10 seconds Video Resolution 640x480 Change in Setup 352x288 320x240 160x128 Storage Media CF Card Internal memory Number of taken pictures/video/audio Picture resolution...
  • Page 13: Error Message Table

    Warranty & copyright • This product has a two-year manufacturer's warranty, which is effective from the date of purchase. For more information see www.trust.com/warranty • Reproduction of this manual or any part of it is prohibited without permission from Trust International B.V.
