Victaulic 751 Series Installation Instructions

KIT INSTALLATION INSTRUCTIONS

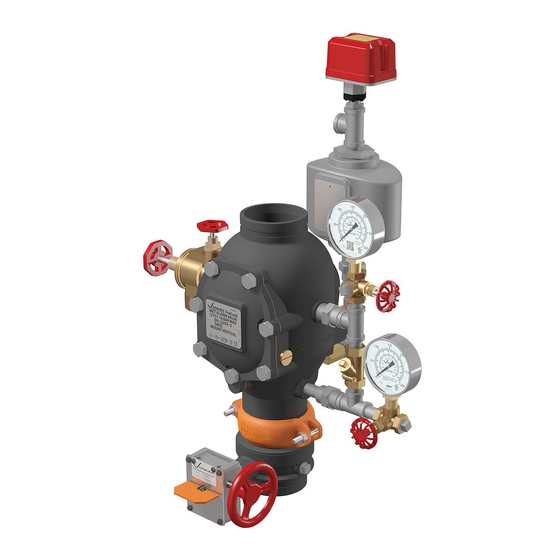

Series 751 FireLock European Alarm Check Valve Stations
AUXILIARY WATER MOTOR ALARM TEST VALVE KIT
• Read and understand all instructions before attempting to install any Victaulic piping products.
• Depressurize and drain the piping system before attempting to install, remove, adjust, or perform maintenance on any Victaulic products.
• Wear safety glasses, hardhat, and foot protection when working with Victaulic piping products.
• Any activities that require taking the valve out of service may eliminate the fire protection provided by the system. Before removing the
valve from service, notify the authority having jurisdiction. Consideration of a fire patrol should be given for the affected areas.
Failure to follow these instructions could result in serious personal injury and/or property damage.
EXPLODED VIEW DRAWING - AUXILIARY WATER MOTOR ALARM TEST VALVE KIT
Bill of Materials
1 Auxiliary Water Motor Alarm Test Ball Valve
(Normally Closed - Lockable)
2 Flexible Stainless Steel Braided Hose
3 Female Tee
4 Close Nipple
TO SYSTEM
WATER
SUPPLY
www.victaulic.com
Victaulic is a registered trademark of Victaulic company. © 2009 Victaulic company. all rights reserVed. printed in the usa.
REV_A
WARNING
TO WATER
MOTOR ALARM
4
3
TO
DRAIN
4
4
3
I-751.VDS/KIT
2
NORMALLY
1 CLOSED
(LOCKABLE)
I-751.VDS/KIT_1
