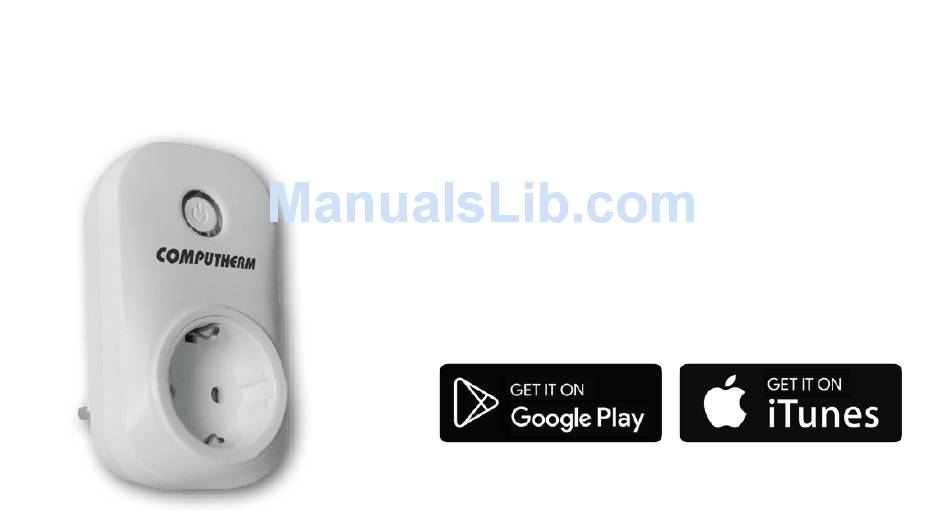

  • Page 1 COMPUTHERM S200 Wi-Fi socket Operating instruction COMPUTHERM S Series...
  • Page 3 TABLE OF CONTENTS 1. A general description of the socket 2. Important warnings and safety recommendations 3. Meanings of the LED signals of the socket 4. Putting the apparatus into operation 4.1. Downloading and installing mobile application 4.2. Connecting the socket to the user account and establishing contact between the socket and the Wi-Fi network 5.
  • Page 4 „Share” function. A heating system controlled by an existing thermostat and complemented with a COMPUTHERM S200 Wi-Fi socket can be made remotely controllable by means of a smartphone via the Internet. - 4 -...
  • Page 5 We offer the installation of a supplementary COMPUTHERM S100 Wi-Fi sensor centre to those who wish to control their COMPUTHERM S200 socket based on the temperature/humidity measured in another room via wireless means. For example, with the installation of the COMPUTHERM S100 Wi-Fi sensor...
  • Page 6 2. IMPORTANT WARNINGS AND SAFETY RECOM- MENDATIONS • Before starting to use the apparatus, please study carefully the instructions for use and follow strictly the instructions therein. • The socket was designed for business or household (not industrial) use and can be used to control any electric device whose performance does not exceed 2.2 kW (loadability: 230 V AC;...
  • Page 7 • The manufacturer will assume no responsibility for any direct or indirect damages or income losses caused by/during the use of the product. • The apparatus will not work without power supply but in automatic mode it memorizes the settings and resumes operation without any intervention af- ter the power supply is restored (the power outage is eliminated).
  • Page 8 and updated. For proper operation please check regularly whether there is any accessible software or mobile application update in menu item „…” / „Setting” and always use their latest version! Due to constant updates it is possible that some functions of the apparatus and the applications operate and appear in a way other than described in these instructions for use.
  • Page 9 - the green LED blinks three times then illuminates steadily for a short time and this process is repeated. • When the green LED flashes once for a short time every few seconds then the connection between the socket and the Wi-Fi network has not been established.
  • Page 10 COMPUTHERM S Series. a) Download the free COMPUTHERM S Series application from App Store or Google Play store to the device (e.g. smart phone or tablet) you intend to use to control the socket. The application is accessible through the below link and QR code: http://quantrax.hu/computherm-wi-fi-termosztatok/...
  • Page 11 twice on the „REGISTER” button and enter into your user account. Following this, the mobile application is ready for use. 4.2. Connecting the socket to the user account and establishing connection between the socket and the Wi-Fi network The apparatus should be connected to the user account differently from devices which are using the Android or iOS operating system.
  • Page 12 3 times then illuminates steadily for a short time and this process is repeated. This blinking indicates the alternative tuning mode). d) On the Android device open application „COMPUTHERM S Series” and click on „+” at the bottom of the screen then on the „Next” button.
  • Page 13 Wi-Fi router selected then wait for ~10 sec- onds. (The Wi-Fi network selected must have Internet access). b) On your iOS device open the „COMPUTHERM S Series” application then tap „+” at the bottom of the screen then the „Next” button.
  • Page 14 c) Pressing the „Home” button of the iOS device send the application to the background then enter into menu item „Settings/Wi-Fi networks”. Press and hold down the push button on the socket for around 5 seconds. The green LED on the apparatus blinks three times then illuminates steadily for a short time and this process is repeated.
  • Page 15 Once the iOS device is con- nected to the Wi-Fi network of the t socket, exit from the „Settings” menu. e) On your iOS device open again application „COMPUTHERM S Series” then tap the „Next” button at the bottom of the page.
  • Page 16 Then you can connect the device to be controlled to the socket (see Chapter 6 for detailed instructions), which becomes remotely controllable this way. 5. USE OF THE SOCKET AND APPLICATION, A DESCRIPTION OF FUNCTIONS AND SERVICES Once you have successfully established a connection between the socket and the Wi-Fi network selected (which must have the Internet access) and connected the socket to your user account, you can control it remotely with the help of the application.
  • Page 17 the application can be updated in settings ( ) menu. You can return to the main menu with the icon showing four squares ( The Andoid application has a widget functionality, with which the basic func- tionalities of the devices connected to the user account can be accessed directly from the home screen of the Android device.
  • Page 18 Attention! In the setting menu of the device the software of the socket can also be updated. For proper operation please check regularly whether a software update is available and always use the latest version! The socket has the following functions and services: a) Manual on/off control: press the push button on the socket for a short time.
  • Page 19 Coordinated control of several devices with function „Scene”: Coordinated control of the devices connected to your user account can be done with func- tion „Scene”. You can manually control several devices simultaneously or, based on pre-set parameters, turn on/off one or more COMPUTHERM Wi-Fi - 19 -...
  • Page 20 (e.g. COMPUTHERM S200 Wi-Fi sockets) with the help of the COMPUTHERM S300 Wi-Fi ther- mostat as a master device. The „Scene” function is accessible from the main screen of the application by tapping icon „...” then menu item „Scene”. After entering into this func- tion you can create a new switch command by tapping the „+”...
  • Page 21 Then out of the parameters offered for control you have to choose the one (e.g. temperature) based on which you in- tend to control the other device (e.g. a COMPUTHERM S200 socket). Finally, you have to give the condition belonging to the parameter (e.g.
  • Page 22 „Scene” function if you wish to control, either on the spot or remotely, e.g. a COMPUTHERM S200 socket controlled by the „Scene” function from a COMPUTHERM S300 thermostat.
  • Page 23 Therefore, if you control your boiler with a COMPUTHERM wireless (RF) thermostat, we suggest you to connect the power supply of the receiver unit of the RF thermostat to the COMPUTHERM S200 Wi-Fi socket in- stead (Figure 2), as this way heating will be turned off in the OFF state of the Wi-Fi socket, while domestic hot water is still available.
  • Page 24 COMPUTHERM Wi-Fi apparatus equipped with a temperature sensor (e.g. COMPUTHERM S300 Wi-Fi thermostat) in your flat beside the COMPUTHERM S200 socket and connect them to the user account then arrange for frost prevention with the „Scene”...
  • Page 25 heating equipment (boiler) socket 230 V AC 50-60 Hz Figure 1. - 25 -...
  • Page 26 boiler thermostat thermostat receiver socket 230 V AC 50-60 Hz 230 V AC 50-60 Hz Figure 2. - 26 -...
  • Page 27 (e.g. infrared heating panels, watering pumps, refrigerators) Below the maximum loadability limit of the output socket the COMPUTHERM S200 Wi-Fi socket can perform remote control of any connected elec- tric device. Connect your electric device to be remote controlled to the 230V network through the COMPUTHERM S200 socket and turn on the main switch of the electric device to be remote controlled.
  • Page 28 7. PRACTICAL ADVICES Problems with the Wi-Fi connection If you are not able to control the device through the Internet because it can- not be reached through the application, then the connection between the device and the server has been broken. This can have multiple reasons. In most of the cases it is caused by the Wi-Fi router.
  • Page 29 You can still switch on/off the device manually even when it is not available through the internet using the button on the device. The use of the application The phone/tablet application is under constant development. It is advised to update it to the latest version, as the user experience is continuously en- hanced and there can be new functionalities available in the new versions.

  • Page 30: Technical Data

    8. TECHNICAL DATA Supply voltage for the socket: 90-230 V AC; 50/60 Hz Output voltage of the socket: 90-230 V AC (identical with the input voltage) Protection against environmental impacts: IP51 Output loadability of the socket: 10 A (2 A inductive) Standby power consumption: 0.1 W Operating frequency: Wi-Fi (b/g/n) 2.4 GHz Storage temperature: -40 °C …...
  • Page 32 RED 2014/53/EU and RoHS 2011/65/EU. QUANTRAX Kft. Manufacturer: H-6726 Szeged, Fülemüle u. 34. Telephone: +36 62 424 133 • Fax: +36 62 424 672 E-mail: iroda@quantrax.hu Web: www.quantrax.hu • www.computherm-hungary.hu Country of origin: China Copyright 2018 Quantrax Kft. All rights reserved. ©...
