Computherm S100 Operating Instruction

Computherm S100 Operating Instruction

S series wi-fi sensor centre
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

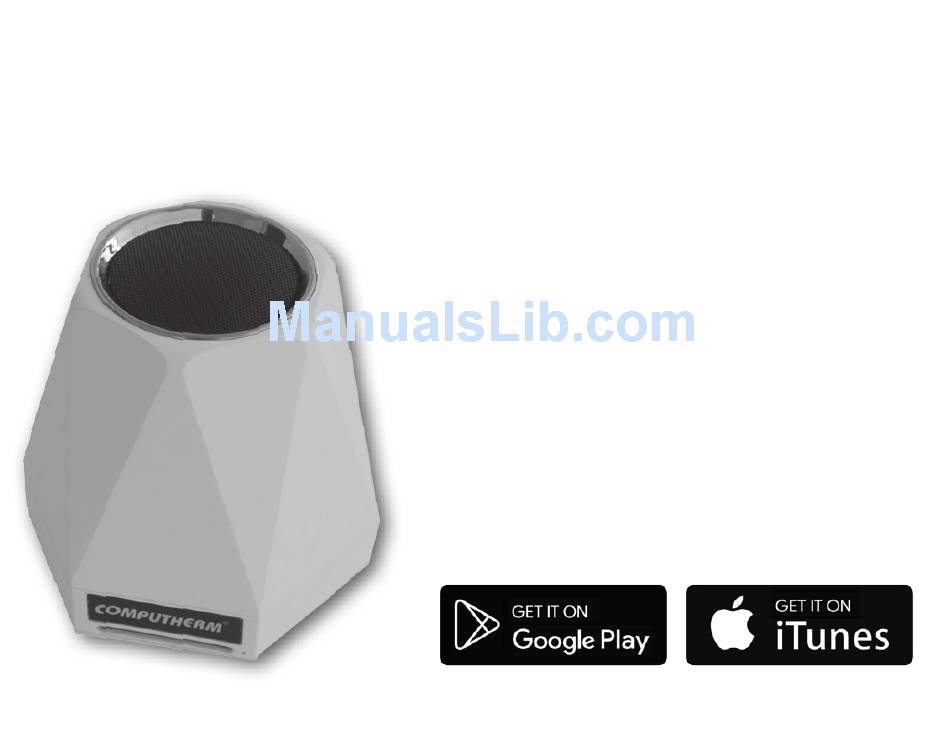

COMPUTHERM S100
Wi-Fi sensor centre
Operating instruction
COMPUTHERM S Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S100 and is the answer not in the manual?

Questions and answers

Related Manuals for Computherm S100

Summary of Contents for Computherm S100

  • Page 1 COMPUTHERM S100 Wi-Fi sensor centre Operating instruction COMPUTHERM S Series...
  • Page 3 TABLE OF CONTENTS 1. A general description of the sensor centre 2. Important warnings and safety recommendations 3. Meanings of the LED signals of the sensor centre 4. Putting the apparatus into operation 4.1. Downloading and installing mobile application 4.2. Connecting the sensor centre to the user account and establishing contact between the sensor centre and the Wi-Fi network 5.

  • Page 4: A General Description Of The Sensor Centre

    1. A GENERAL DESCRIPTION OF THE SENSOR CEN- TRE STATION The COMPUTHERM S100 Wi-Fi sensor centre is able to provide continu- ous information on environmental data (air temperature, humidity, noise level, luminous intensity) at the place of installation via the Internet, and, based on measured and set values, is able to control the paired COM- PUTHERM S200 socket and/or S300 thermostat via a Wi-Fi network.

  • Page 5: Important Warnings And Safety Recommendations

    ing can be prevented without having to lay a cable. The functions and services of the apparatus are described in detail in Chapters 5. 2. IMPORTANT WARNINGS AND SAFETY RECOM- MENDATIONS • Before starting to use the apparatus, please study carefully the instructions for use and follow strictly the instructions therein.
  • Page 6 • Before starting to use the COMPUTHERM S100 sensor centre matched with a COMPUTHERM S200 socket and/or a COMPUTHERM S300 ther- mostat, make sure that the pairing of the devices is working well and the apparatus is operating safely.

  • Page 7: Meanings Of The Led Signals Of The Sensor Centre

    4.1. Downloading and installing mobile application The sensor centre can be reached from devices using the Android or iOS operating system by means of an application called S Series. COMPUTHERM a) Download the free S Series application from App Store or COMPUTHERM Google Play store to the device (e.g.
  • Page 8 After the application has been installed, register a user account by means of your e-mail address. During the registration process give the e-mail ad- dress you wish to use then tap the „NEXT” button. On the appearing page tap the „SEND”...
  • Page 9 4.2.1. In case of devices using the Android operating system you can connect the sensor centre to the user account and the Wi-Fi net- work chosen by means of the following steps: a) Enable the Wi-Fi connection on your device using the Android operating system.
  • Page 10 This blinking indicates the alternative tuning mode) d) On the Android device open application „ COMPUTHERM S Series” and click on „+” at the bottom of the screen then on the „Next” button.
  • Page 11 The Wi-Fi network selected must have Internet access. b) On your iOS device open the „ Series” application COMPUTHERM S then tap „+” at the bottom of the screen then the „Next” button. c) Pressing the „Home” button of the iOS device send the applica- tion to the background then enter into menu item „Settings/Wi-...
  • Page 12 „Settings” menu. e) On your iOS device open again application „ COMPUTHERM S Se- ries” then tap the „Next” button at the bottom of the page. On the next screen give the name and password of the Wi-Fi network to which the sensor centre is to be connected then tap the „Next”...

  • Page 13: Use Of The Sensor Centre And Application, A Description Of Functions And Services

    tapping the button “Added successfully!” then „OK” that appears afterwards. Now the sensor centre can be seen with the name given in the application. 5. USE OF THE SENSOR CENTRE AND APPLICATION, A DESCRIPTION OF FUNCTIONS AND SERVICES Once you have successfully established a connection between the sen- sor centre and the Wi-Fi network selected (which must have the Internet access) and connected the sensor centre to your user account, you can check the sensor informations freely from a distance via the mobile ap-...
  • Page 14 tionalities of the devices connected to the user account can be accessed directly from the home screen of the Android device. The sensor centre will continue its pre-set function even in the absence of the Internet access. Besides, it will continue its pre-set function after the power is restored following a mains supply failure (power outage), except if the Internet is not accessible any longer when power supply is restored.
  • Page 15 „Scene”. You can manually control sev- eral devices simultaneously or, based on pre-set parameters, turn on/off one or more COMPUTHERM Wi-Fi devices that are not equipped with temperature sensor (e.g. COMPUTHERM S200 Wi- Fi sockets) with the help of the COMPUTHERM S300 Wi-Fi ther- mostat as a master device.
  • Page 16 When „Master device” control is chosen, the program offers the device(s) connected to the user account (e.g. the COMPUTHERM S100 Wi-Fi sensor centre), out of which one should be chosen to be a mas- ter device. Then out of the parameters offered for control you have to choose the one (e.g.

  • Page 17: Practical Advices

    COMPUTHERM S200 controlled by the „Scene” function from a sensor centre. COMPUTHERM S100 6. PRACTICAL ADVICES Problems with the Wi-Fi connection If you are not able to control the device through the Internet because it cannot be reached through the application, then the connection between the device and the server has been broken.
  • Page 18 should reset the router to the factory default settings, because it is possible that some settings of the router do not allow the device to connect to the internet. The use of the application The phone/tablet application is under constant development. It is advised to up- date it to the latest version, as the user experience is continuously enhanced and there can be new functionalities available in the new versions.

  • Page 19: Technical Data

    7. TECHNICAL DATA Temperature measuring range: 0 °C – +100 °C Temperature measurement accuracy: +/- 0.5 °C Humidity measuring range: 20 - 90 % RH Humidity measurement accuracy: +/- 5 % RH Type of the built-in microphone: electric condenser microphone Type of the built-in light sensor probe: GM5528 photoresistor Type of the built-in air pollution probe: GP2Y1010AU0F optical air pollution sensor...
  • Page 20 The COMPUTHERM S100 type Wi-Fi sensor centre complies with standards RED 2014/53/EU and RoHS 2011/65/EU. QUANTRAX Kft. Manufacturer: H-6726 Szeged, Fülemüle u. 34. Telephone: +36 62 424 133 • Fax: +36 62 424 672 E-mail: iroda@quantrax.hu Web: www.quantrax.hu • www.computherm-hungary.hu...
