Summary of Contents for Computherm Q1RX

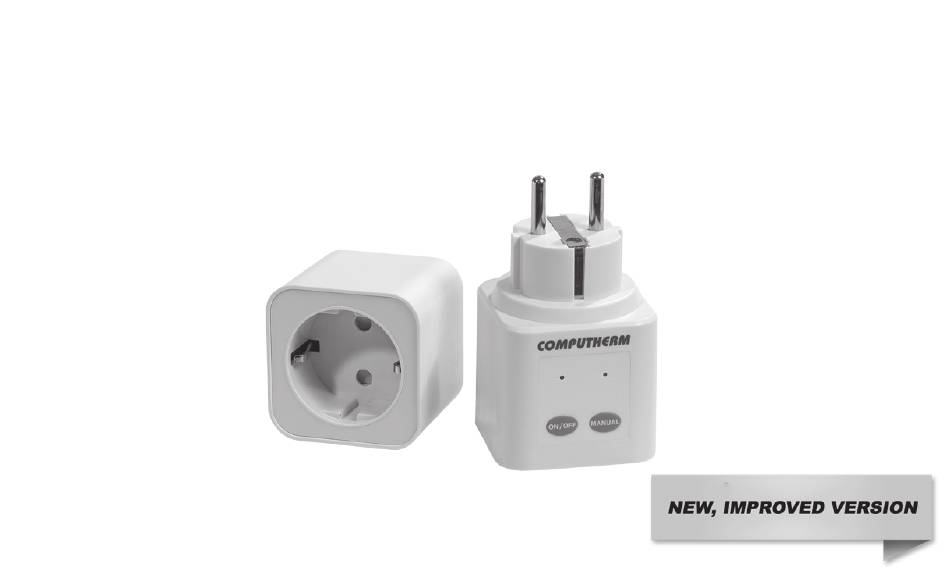

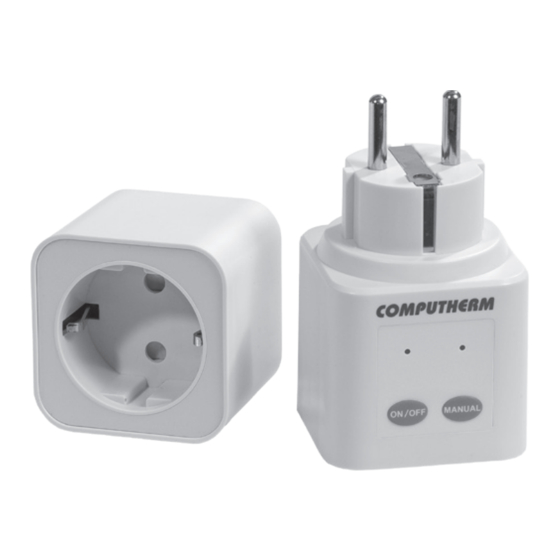

- Page 1 COMPUTHERM Q1RX Wireless (Radio-Frequency) Thermostat-Controlled Socket Operating Instructions...
- Page 3 Q1RX connected to the network, while the OFF command disconnects the device from the network. If more than one COMPUTHERM thermostat has been paired to the Q1RX socket, 230 V will be displayed on the output if any...
- Page 4 OFF signal to the socket. 2. PUTTING THE SOCKET INTO OPERATION It is advisable to install the COMPUTHERM Q1RX socket near the device to be controlled, in a place protected from moisture, dust, chemicals and heat. When choosing the location of the socket you should remember that bulky metal objects (e.g.
- Page 5 WARNING! Modifying the socket can cause electric shock or product failure. Plug the COMPUTHERM Q1RX device into a power socket near the location of the device to be controlled. A few seconds after the LED lights of the device flash once, the device becomes ready for operation.
- Page 6 3. TUNING THE SOCKET AND THE THERMOSTAT ( S ) TOGETHER ATTENTION! If you wish to use the COMPUTHERM Q1RX socket in addition to the receiver unit of the thermostat, then the socket, the receiver of the thermostat and the thermostat should be tuned together at the same time, so that they can operate simultaneously.
- Page 7 then start the tuning process on that receiver unit too, as described in its manual, so that its green LED light (or red LED light in case of the receiver of the Q5RF or Q8RF thermostat) starts flashing. After this, tune the devices together according to the manual of the thermostat.
- Page 8 Attention! When reset, both the Off and On delays return to the off state. 4. DELAY OF THE OUTPUT When designing heating zones - in order to protect the pumps - it is advisable to keep at least one heating circuit that is not closed by a zone valve (e.g.
- Page 9 the switch-on signal of the first thermostat. During this time, the valves open and then the pump connected to the socket starts. The delay is especially recommended if the zone valves are opened/closed by slow-acting electrothermal actuators, because their opening/closing time is approx.
- Page 10 Turn off delay In the activated state, if the output of the socket is switched on, in order to keep the valve(s) open of the given heating circuit during the pump circulation, the output of the socket switches off after a delay of 6 minutes from the switch-off signal of the last thermostat.
- Page 11 Activating/deactivating of the delay functions To activate/deactivate the Delay on and off functions, press and hold the “MANUAL” button on the socket for 5 seconds until the red and green LEDs flash three times alternately. You can activate/deactivate the functions by pressing the “ON/OFF” and “MANUAL” buttons. The green LED shows the Turn on delay status, while the red LED shows the Turn off delay status.
- Page 12 (the signal appears and disappears alternately on the display). If you want to use the Q1RX socket with a wireless COMPUTHERM room thermostat that does not have a „TEST” button, first press the + and - buttons to set the desired temperature higher than the room temperature and then lower it after 5 seconds.
- Page 13 COMPUTHERM Q2RF signal repeater to increase the communication distance of the thermostat. 6. MANUAL CONTROL OF THE SOCKET Pressing the “MANUAL” button separates the thermostat(s) from the socket. In this case, the device (e.g. pump) connected to the socket can only be turned on and off manually, without any temperature inspection.
- Page 14 Warning! The manufacturer does not assume responsibility for any direct or indirect damages and loss of income occurring while the appliance is being used.
-
Page 15: Technical Data
7. TECHNICAL DATA Power consumption: • 0,01 W Power supply voltage: • 230 V AC, 50 Hz • Output voltage: 230 V AC, 50 Hz • Loadability: 16 A (4 A inductive load) Operating frequency: • 868.35 MHz Duration of activable •... - Page 16 The COMPUTHERM Q1RX type wireless thermostat- controlled socket complies with the requirements of directives RED 2014/53/EU and ROHS 2011/65/EU. QUANTRAX Ltd. Manufacturer: H-6726 Szeged, Fülemüle u. 34. Telephone: +36 62 424 133 • Fax: +36 62 424 672 E-mail: iroda@quantrax.hu Web: www.quantrax.hu •...
