  • Page 1 COMPUTHERM GSM158 Power socket User manual...

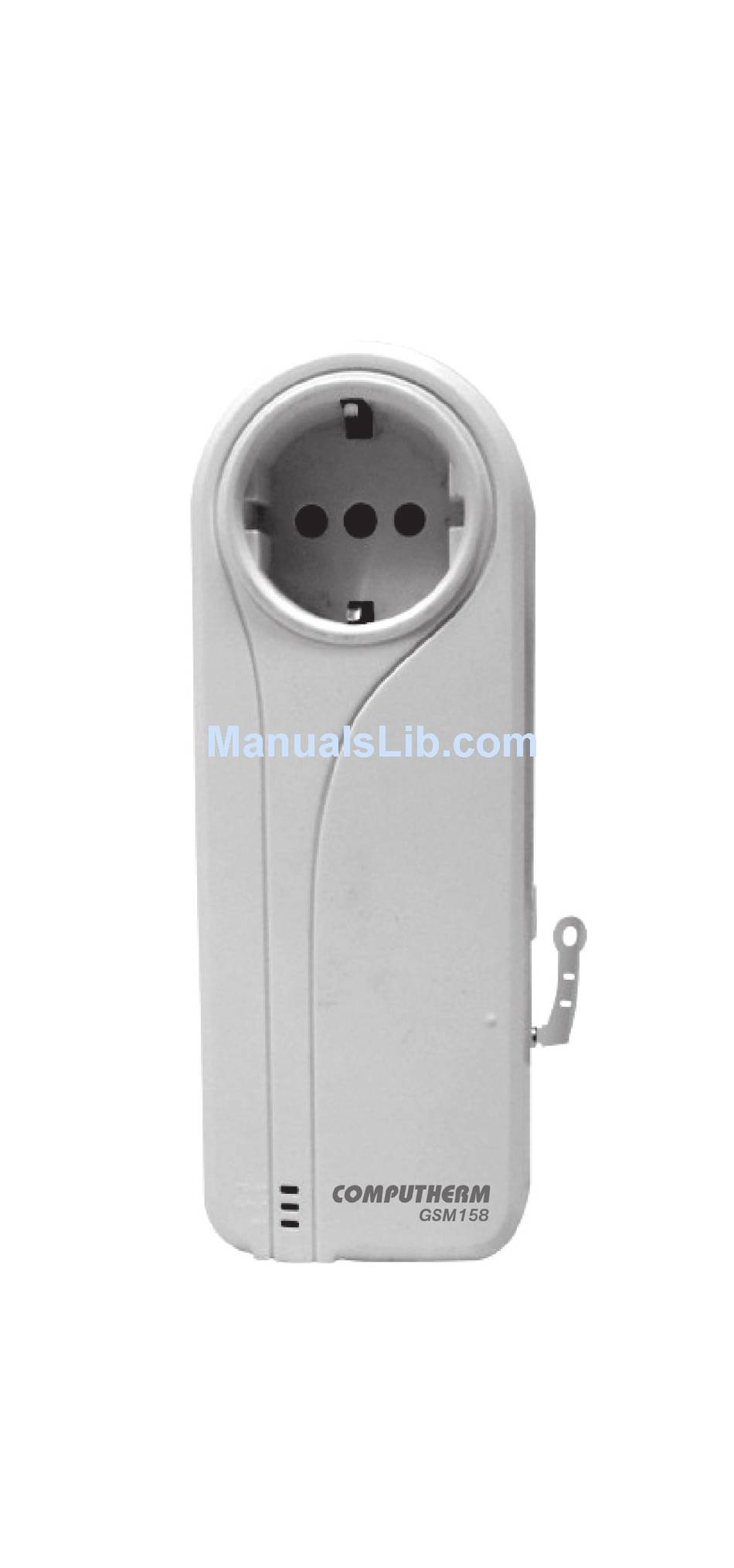

  • Page 3 Thank You for purchasing the COMPUTHERM GSM158. The COMPUTHERM GSM158 power socket is a remote controlled socket using a Pay as you Go contract SIM. The power supply output of the socket can be turned on or off remotely by the SMS (Short Message System) command or local controlled by its function buttons.

  • Page 4: Table Of Contents

    CONTENTS Safety recommendations ............04 Disclaimer Notice ..............05 Chapter 1 Features and Accessories 1.1 Main functionality .............. 07 1.2 List of contents ..............07 1.3 Sockets instructions ............07 1.4 Temperature sensor instruction ......... 08 1.5 Light indicators ..............08 Chapter 2 Quick Start 2.1 Install the SIM card and temperature sensor ....

  • Page 5: Safety Recommendations

    NB: Although we recommend PAYG SIMS for easy access and set up of the COMPUTHERM GSM158, contract SIMS can also be used but as we are only sending SMS messages as PAYG SIM is very cost effective.

  • Page 6: Disclaimer Notice

    detailed in this instruction book, please contact your supplier for technical support or a replacement prod- uct under warranty DISCLAIMER NOTICE 1. We operate on a policy of continuous development and therefore we reserve the right to make changes and improvements to any of the sockets described in this document without prior notice.

  • Page 7: List Of Contents

    • Supports 1 Master and 4 additional numbers/users • Automatic time/date synchronisation. • SMS notification on change external power supply. 1.2 List of Contents • 1 X COMPUTHERM GSM158 controlled power socket • 1 X External temperature sensor • 1 X User manual - 5 -...

  • Page 8: Temperature Sensor Instruction

    1.3 COMPUTHERM GSM158 Schematic Drawings Figure1 1 – Electrical Outlet 2 – Indicator light (Power, output, GSM); 3 – „ ” On/Off button 4 – Temperature sensor port 5 – Output jack 6 – Socket plug 7 – Power switch 8 –...

  • Page 9: Chapter 2 Quick Start

    Power on: 1. Turn the power switch to “On” position (see 7 on Figure 1) 2. Plug the GSM158 into AC power socket. The “Green” power light will illuminate and the “Blue” GSM light will flash for about 20 seconds before staying on constantly to confirm GSM sig- nal available.

  • Page 10: Add A Master Number To The Socket

    4. “ ” button (see 4 on figure 1) can be pressed for about 1 second to manually switch ON or OFF the socket power output. The socket is now ready to be programmed for remote use. Power off: 1. Turn the power switch to “off” position. The blue light turns off.

  • Page 11: Chapter 3 Advanced Settings

    GSM158 will send reminding SMS. CHAPTER 3 ADVANCED SETTINGS 3.1 Define the users 3.1.1 User authorization level All the settings of GSM158 can be set or adjusted via a SMS command. There are two mobile phone user controlling levels. - 9 -...

  • Page 12: About The Sims Command

    - No allow any space within the commands. 3.1.3 Add a master number to the socket Description: If GSM158 is being used for the first time, or GSM158 has been reset to factory settings, the Master user’s number must be programmed into the socket.

  • Page 13: Change The Master Number

    Method 1: The Master user sends following SMS message in order to: Change the master user’s number: #14#Newphone#oldphone#code# Method 2: The user reset GSM158 to factory settings to remove old Master number before setting the new one (Refer to Chapter 3.8). Successful SMS reply New master number set successfully.

  • Page 14: Check Additional User Numbers

    SMS notification, but the setting time range and temperature range parame- ters will be saved until GSM158 is reset to factory settings. - 12 -...

  • Page 15: Switching On/Off By Sms

    3.2.3 Switching on/off by calling Description: If the Master user calls GSM158, the socket output will be switched on or cut off automatically when the user hears the ring tone in the phone. The calling will be hung up automatically if the user doesn’t hang up the call.

  • Page 16: Delayed Switch On/Off The Socket Output

    Auxiliary output: ON/OFF . 3.3 Delayed-switch on/off the socket output Description: The output of GSM158 can be set to delay switch on or cut off for a period with SMS commands. The “delayed switch on/off the socket” function will be in- valid when the GSM indicator light is not constant lights;...
  • Page 17 3.4 Timed switching on the socket output 3.4.1 Enable timing switching on the output Description: The output of GSM158 can be set to switch on for a period like every Monday, or every day or every Monday to Friday, etc. Method:...

  • Page 18: Disable Timing Switching On The Output

    WorkDay: one digit, the values lie in the range of “0” to “8”. The following table contains the descriptions of each value. 0 - Monday to Friday 1 - Monday 2 - Tuesday 3 - Wednesday 4 - Thursday 5 - Friday 6 - Saturday 7 - Sunday 8 - Everyday...

  • Page 19: Auto-Control The Socket Output By Temperature

    3.5.1 Enable auto-controlled by temperature Description: The external temperature sensor must be inserted into the TEMP port of GSM158. The output status of the socket can be controlled by the environmental temperature automatically. For example: GSM158 is used for the power control of the heating apparatus.

  • Page 20: Disable Auto-Controlled By Temperature

    turned off. But the “Auto-controlled by temperature” feature is applied only when command 20 is set. Method: The user sends following SMS message in order to: Set temperature to switch on/off the output: #159#Mode#LowTemp#HighTemp# Mode is the control selection: For coldness, mode=0. For warmness, mode=1. Temp means temperature value, the range is –10C to 49C.
  • Page 21 3.6 Auto-control the socket output by temperature 3.6.1 Over-temperature alarm Description: The socket will auto-send the SMS alarm message to master user and “Beep” if the surrounding temperature is detected out in the pre-set temperature range or out of the pre-set temperature range.

  • Page 22: Sims Notification Upon The Socket Output Changing

    Delta: 4C Time: 2minutes 3.7 SMS notification upon the socket output changing Description: GSM158 will default notify the user when the socket output changing. A SMS notification will be sent. The Master user can enable/disable this SMS notification. - 20 -...
  • Page 23 SMS notification upon the socket output changing manually. NO SMS notification upon the socket output changing manually. 3.8 SMS notification upon power supply changing Description: GSM158 will default notify the user when the power supply changing. For example: Main electricity supply lost! Temp: 24C...

  • Page 24: Check Status

    3.10 “Check status Method: The master user sends following SMS command in order to: Check socket operating status: #07# (25) After receiving the SMS commands, GSM158 will reply one SMS message of socket status checking. For example: Number: xxxxxxxxx Status: ON/OFF...
  • Page 25 Check “timed switch on the socket” parameters: #128# (28) After receiving the SMS commands, GSM158 will reply one SMS message of “Timed switch on the socket” parameters. For example: Temp control: function ON/OFF Delay control: function ON/OFF Schedule control: function ON/OFF WorkDay, StartTime-EndTime.

  • Page 26: Resetting The Socket

    Method 1: Press the side “ ” button of the device for 15 seconds until you hear the long “beep” sound. Method 2: The Master user sends following SMS mes- sage to GSM158 in order to. Reset the socket: #08# Successful SMS reply Reset the socket to factory setting successfully.

  • Page 27: Chapter 5 Troubleshooting

    CHAPTER 5 TROUBLESHOOTING GENERAL TROUBLE POSSIBLE REASON SOLUTION Check the socket external AC Power indicator light turns o No power input power is available Can't nd or identify the SIM SIM card not installed properly card GSM indicator light turns o The power switch is OFF Set power to ON mode Check GSM 158 external AC...

  • Page 28: Chapter 6 Main Technical Parameters

    CHAPTER 6 MAIN TECHNICAL PARAMETERS • Input power socket: 110-250V/50Hz,CEE 7/7 Schuko plug • Output power socket relay: 110-250V/50Hz,230V/30A(30s), 15A long term • Store temperature: -10°C - +49°C • Relative humidity: -20°C - +60°C • Relative humidity: 10-90% without condensation •...
  • Page 29 on/o Enable switching on/o #18#1# output the output by calling Disable switching on/o #18#0# the output by calling CATEGORY FUNCTION COMMAND (Default) Add a Master number Switch on the auxiliary output #11#1# #99#phone#code# Switching to the socket on/o Change master password Switch o the auxiliary output #11#0# #04#oldpassword#newpassword# auxiliary output...
  • Page 30 Temperature rapid changing alarm rapid Set time period and changing #160#Temp#Time# temperature changing value alarm Disable the temperature #160#0# CATEGORY FUNCTION COMMAND rapid changing alarm Add a Master number SMS noti cation upon #99#phone#code# to the socket #130#1# the socket output changing (Default) Change master password #04#oldpassword#newpassword#...
  • Page 32 The COMPUTHERM GSM 158 type GSM-controlled socket complies with the requirements of standards EU EMC 2004/108/EC; LVD 2006/95/EC; R&TTE 1999/5/EC and RoHS 2011/65/EU. Manufacturer: QUANTRAX Kft. Fülemüle u. 34., Szeged, H-6726, Hungary Phone: +36 62 424 133 • Fax: +36 62 424 672 E-mail: iroda@quantrax.hu...
