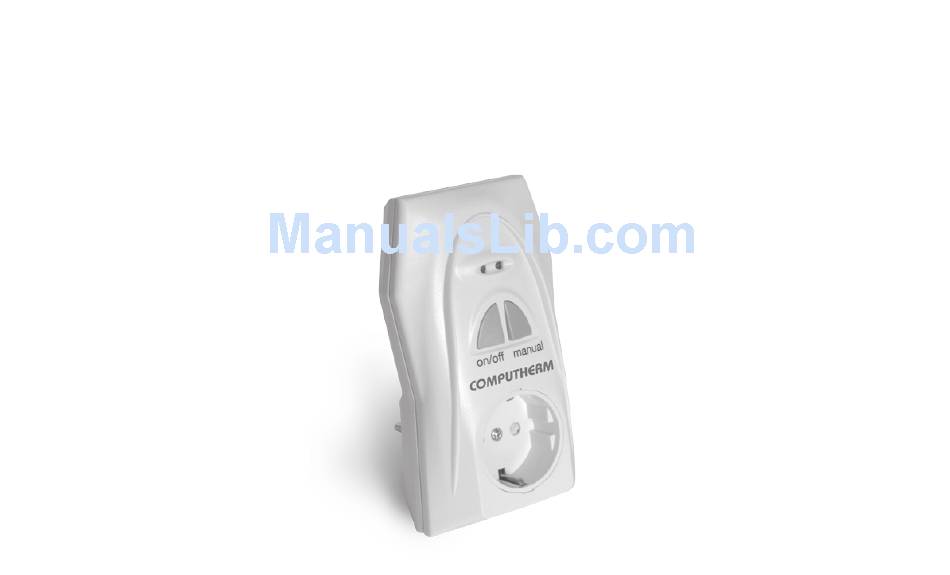

- Page 1 COMPUTHERM Q1RX Wireless (Radio-Frequency) Thermostat-Controlled Socket Operating Instructions...
- Page 2 In response to the ON command of COMPUTHERM Q3RF, Q7RF and Q8RF wireless thermostats, a supply voltage of 230V appears on the output socket of device Q1RX connected to the network, while the OFF command disconnects the device from the network.
- Page 3 Warning! Modifying the socket can cause electric shock or product failure. Plug the COMPUTHERM Q1RX device into a power socket near the location of the device to be controlled. A few seconds after the LED lights of the device flash once, the device becomes ready for operation.
- Page 4 together at the same time, so that they can operate simultaneously. Press the “on/off” button of the socket (for approximately 10 seconds) until the green LED light starts flashing. If you also wish to use the receiver unit of the thermostat, then start the tuning process on that receiver unit too, as described in its manual, so that its green LED light (or red LED light in case of the receiver of the Q8RF thermostat) starts flashing.
- Page 5 button for approximately 2 seconds. Following this, the thermostat will send, alternating every 5 seconds, switch-on and switch-off control signals for 2 minutes (the signal appears and disappears alternately on the display). When detecting the ON and OFF control signals, the red LED light on the socket switches on and off, respectively.
- Page 6 temperature inspection. The continuously illuminated green LED indicates “MANUAL” mode. Pressing the “on/off” button turns on or off the connected device. (The red LED is illuminated when the device is turned on). By pressing the “MANUAL” button again, the socket quits manual control and resumes automatic (thermostat- controlled) operation (the green LED goes out).
- Page 7 7. TECHNICAL DATA • Power consumption: • Power supply voltage: 230V AC, 50Hz • Output voltage: 230V AC, 50Hz • Loadability: 10A (3A inductive load) • Weight: 150g • Storage temperate: -10ºC ‒ +40ºC...
- Page 8 The COMPUTHERM Q1RX type wireless thermostat- controlled socket complies with the requirements of standards EU EMC 2004/108/EC; LVD 2006/95/EC; RoHS 2011/65/EU and R&TTE 1999/5/EC. QUANTRAX Kft. Manufacturer: Fülemüle u. 34., Szeged, H-6726, Hungary Tel: +36 62 424 133 • Fax: +36 62 424 672 Email: iroda@quantrax.hu...
