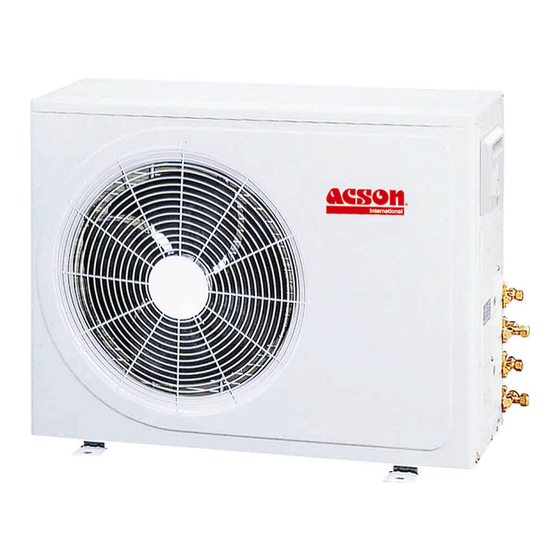

Acson AMSD-A/AR Manual

Multi-split systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

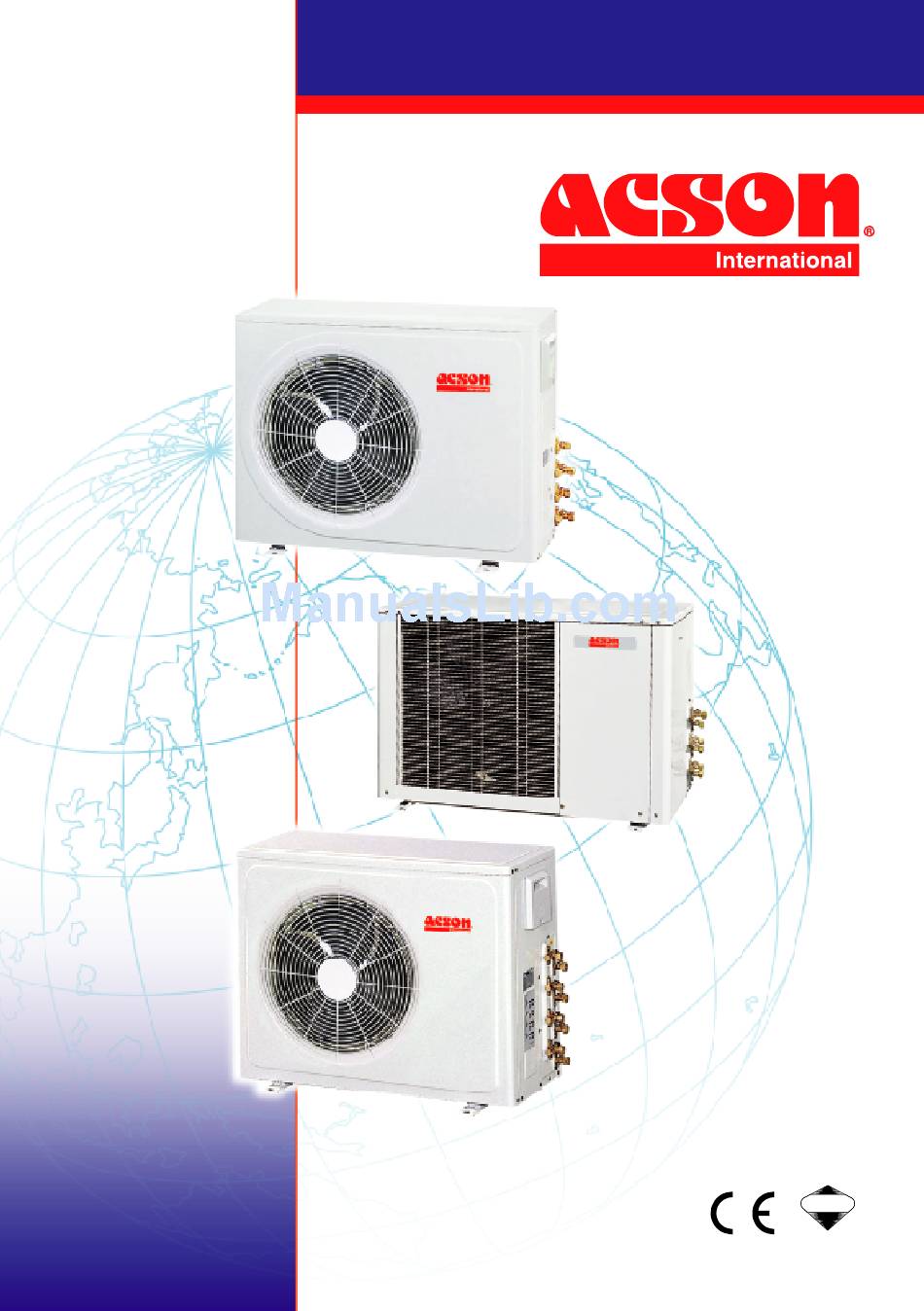

Model:
AMSD - A/AR
AMST - A/AR
AMSH - A/AR
Multi-Split Systems
REGISTERED
Manual No: TMA-AMS-AR-01080
ISO 9002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMSD-A/AR and is the answer not in the manual?

Questions and answers

Related Manuals for Acson AMSD-A/AR

Summary of Contents for Acson AMSD-A/AR

  • Page 1 Model: AMSD - A/AR AMST - A/AR AMSH - A/AR Multi-Split Systems REGISTERED Manual No: TMA-AMS-AR-01080 ISO 9002...
  • Page 2 CONTENTS 1. GENERAL INFORMATION ..................2 2. FEATURE ........................2 3. COUPLING VERSATILITY ...................3 4. SPECIFICATIONS .......................6 5. OUTLINES AND DIMENSIONS .................15 6. WIRING DIAGRAMS ....................19 7. REFRIGERANT CIRCUIT DIAGRAM ................ 25 8. SPECIAL PRECAUTION FOR R407C................29 9. INSTALLATION ......................31 10.

  • Page 3: General Information

    Example : 1010 A : Generation Double - R22 Generation R : Heatpump Compressor 4 R407C (Cooling only) Brand Name Product (A = ACSON) Multi Split Capacity 101010 - R22 Triple 4 R407C Generation Compressor (Cooling only) Brand Name Product...

  • Page 4: Coupling Versatility

    3. COUPLING VERSATILITY OUTDOOR INDOOR Cooling : AWMS 10/15F Heatpump : AWMS 10/15FR Cooling : AWMS 10/15F Heatpump : AWMS 10/15FR Cooling : AMSDA4MSD 1010/1015/1515A Heatpump : AMSD/A4MSD 1010/1015/1515AR Cooling : AWMS 10/15/20F Heatpump : AWMS 15FR Cooling : AWMS 20F Heatpump : AWMS 20FR Cooling : AMSD 1020/1520/2020A...
  • Page 5 OUTDOOR INDOOR COOLING : AMSH8K8A A : AWMS 10F B : AWMS 10F Double Compressor 2-Indoor Split System COMP COMP COOLING : AMSH8K66A A1 : AWMS 10F A2 : AWMS 10F Double Compressor 3-Indoor Split System B : AWMS 10F COMP COMP COOLING :...
  • Page 6 OUTDOOR INDOOR COOLING : AMSH66K555A A1 : AWMS 10F A2 : AWMS 10F A3 : AWMS 10F B1 : AWMS 10F B2 : AWMS 15F Double Compressor 5-Indoor Split System COMP COMP COOLING : AMSHK77A A1 : AWMS 10F A2 : AWMS 10F Single Compressor 2-Indoor Split System COMP...

  • Page 7: Specifications

    4. SPECIFICATIONS AMSD SERIES (50/60Hz) – COOLING ONLY AMSD1010A AMSD1015A AMSD1515A MODEL OUTDOOR UNIT AWMS10F AWMS10F AWMS10F AWMS15F AWMS15F AWMS15F INDOOR UNIT NOMINAL kcal/h 2,394 2,394 2,394 3,200 3,200 3,200 COOLING 2,784 2,784 2,784 3,721 3,721 3,721 9,500 9,500 9,500 12,700 12,700 12,700...
  • Page 8 A4MSD SERIES – COOLING ONLY A4MSD1010A A4MSD1015A A4MSD1515A MODEL OUTDOOR UNIT AWMS10F AWMS10F AWMS10F AWMS15F AWMS15F AWMS15F INDOOR UNIT NOMINAL kcal/h 2268 2268 2268 3024 3024 3024 2638 2638 2638 3517 3517 3517 COOLING 9000 9000 9000 12000 12000 12000 CAPACITY Btu/h 1035...
  • Page 9 AMSD SERIES (50/60Hz) – COOLING ONLY AMSD1020A AMSD1520A MODEL OUTDOOR UNIT AMSD2020A INDOOR UNIT AWMS10F AWMS20F AWMS15F AWMS20F AWMS20F (x2) 2,394 4,536 3,200 4,536 4,536 NOMINAL kcal/h 2,784 5,275 3,721 5,275 5,275 COOLING CAPACITY Btu/h 9,500 18,000 12,700 18,000 18,000 970 / 960 2,076 / 2,070 1,464 / 1,240...
  • Page 10 AMST SERIES (50Hz) – COOLING ONLY AMST101010A AMST101015A AMST101515A AMST151515A AMST101020A* MODEL INDOOR UNIT OUTDOOR UNIT 3 x AWMS10F 2 x AWMS10F AWMS15F AWMS10F 2 x AWMS15F 3 x AWMS15F 2 x AWMS10F AWMS20F 3 x 2,394 2 x 2,394 3,200 2,394 2 x 3,200...
  • Page 11 AMSH SERIES (50Hz) – COOLING ONLY AMSH8K66A AMSH66K555A MODEL OUTDOOR UNIT AMSH8K8A AMSH66K66A AMSHK77A AWMS10F (x2) AWMS10F (x3) AWMS10F (x4) AWMS10F (x4) AWMS15F (x1) AWMS15F (x2) INDOOR UNIT 220-240 / 1 / 50 POWER SOURCE V/Ph/Hz REFRIGERANT ANTI FUNGUS CROSS FLOW FAN FAN TYPE 300 / 142 AIR FLOW...
  • Page 12 COOLING CAPACITY – AMSH SERIES (50Hz) – COOLING ONLY AMSHK77A AMSH8K8A MODEL OUTDOOR UNIT INDOOR A,B: AWMS15F X2 INDOOR A, B : AWMS10F INDOOR UNIT ONE UNIT RUNNING TWO UNITS RUNNING ONE UNIT RUNNING TWO UNITS RUNNING NUMBER NOMINAL OF UNIT A OR B A OR B A + B...
  • Page 13 A4MSD SERIES – HEATPUMP UNIT A4MSD1010AR A4MSD1015AR A4MSD1515AR MODEL OUTDOOR UNIT INDOOR UNIT AWMS10FR AWMS10FR AWMS10FR AWMS15FR AWMS15FR AWMS15FR 2268 / 2268 2268 / 2268 2268 / 2268 2772 / 2646 2772 / 2646 2772 / 2646 NOMINAL kcal/h ONE / TWO UNIT RUNNING 2638 / 2638 2638 / 2638 2638 / 2638...
  • Page 14 AMSD SERIES (50Hz) – HEATPUMP AMSD1010AR AMSD1015AR AMSD1515AR MODEL OUTDOOR UNIT INDOOR UNIT AWMS10FR AWMS10FR AWMS10FR AWMS15FR AWMS15FR AWMS15FR NOMINAL kcal/h 2,343 / 2,293 2,343 / 2,293 2,343 / 2,293 3,024 / 2,898 3,024 / 2,898 3,024 / 2,898 ONE OR TWO UNIT RUNNING 2,726 / 2,667 2,726 / 2,667 2,726 / 2,667...
  • Page 15 AMSD SERIES (50Hz) – HEATPUMP AMSD 1520AR MODEL OUTDOOR UNIT AWMS15FR AWMS20FR INDOOR UNIT NOMINAL kcal/h 2,898 / 2,772 4,536 / 4,536 COOLING ONE/TWO UNIT RUNNING 3,370 / 3,224 5,275 / 5,275 CAPACITY Btu/h 11,500 / 11,000 18,000 / 18,000 NOMINAL kcal/h 3,175 / 3,024...

  • Page 16: Outlines And Dimensions

    5. OUTLINES AND DIMENSIONS OUTDOOR UNIT MODEL : AMSD 1010 / 1015 / 1515 A/AR A4MSD 1010 / 1015 / 1515 A/AR MODEL : AMSD 1020A / 1520 A/AR MODEL : AMSD 2020A...
  • Page 17 MODEL : AMST 101010A / 101015A / 101515A / 151515A / 101020A MODEL : AMSH8K8A MODEL : AMSH8K66A...
  • Page 18 MODEL : AMSH66K66A MODEL : AMSH66K555A MODEL : AMSHK77A...
  • Page 19 INDOOR UNIT MODEL: AWMS 10/15 F/FR Note : Dimension in mm INDOOR UNIT MODEL : AWMS 20 F/FR Note : Dimension in mm...

  • Page 20: Wiring Diagrams

    6. WIRING DIAGRAMS OUTDOOR UNIT – COOLING ONLY MODEL : AMSD 1010A/ 1015A/ 1515A MODEL : AMSD 1020A/ 1520A MODEL : AMSD 2020A...
  • Page 21 OUTDOOR UNIT – COOLING ONLY MODEL : AMST 101010A/ 101015A/ 101515A/ 151515A MODEL : AMST 101020A...
  • Page 22 OUTDOOR UNIT – COOLING ONLY MODEL : AMSH8K8A MODEL : AMSH8K66A MODEL : AMSH66K66A...
  • Page 23 OUTDOOR UNIT – COOLING ONLY MODEL : AMSH66K555A MODEL : AMSHK77A...
  • Page 24 OUTDOOR UNIT – HEATPUMP MODEL : AMSD 1010 / 1015 / 1515 AR MODEL : AMSD 1520AR...
  • Page 25 INDOOR UNIT COOLING ONLY MODEL : AWMS 10F/ 15F/ 20F (AUTO RANDOM RESTART) HEATPUMP UNIT MODEL : AWMS 10FR/ 15FR/ 20FR HEATPUMP UNIT MODEL : AWMS 10FR/ 15FR/ 20FR (AUTO RANDOM RESTART)

  • Page 26: Refrigerant Circuit Diagram

    7. REFRIGERANT CIRCUIT DIAGRAM MODEL : AMSD 1010/ 1015/ 1515/ 1020/ 1520/ 2020A A4MSD 1010/ 1015/ 1515A MODEL : AMST 101010/ 101015/ 101515/ 151515/ 101020A MODEL : AMSD 1010/ 1015/ 1515/ 1520AR A4MSD 1010/ 1015/ 1515A...
  • Page 27 MODEL : AMSHK77A MODEL : AMSH8K8A...
  • Page 28 MODEL : AMSH8K66A MODEL : AMSH66K66A...
  • Page 29 MODEL : AMSH66K555A...

  • Page 30: Special Precaution For R407C

    8. SPECIAL PRECAUTIONS FOR R407C SPECIAL PRECAUTIONS WHEN DEALING WITH REFRIGERANT R407C UNIT 1) WHAT IS NEW REFRIGERANT R407C? R407C is a zeotropic refrigerant mixture which has zero ozone depletion potential and thus conformed to the Montreal Protocol regulation. It requires Polyol ester oil (POE) oil for its compressor's lubricant. Its refrigerant capacity and performance are about the same as the refrigerant R22.
  • Page 31 c) Ensure that the compressor is not expose to open air for more than the recommended time specified by its manufacturer (typically less than 10 minutes). Removed the seal-plugs only when the compressor is about to be brazed. d) The system should be thoroughly vacuumed to 1.0 Pa (-700mmHg) or lower. This vacuuming level is more stringent than R22 system so as to ensure no incompressible gas and moisture in the system.

  • Page 32: Installation

    9. INSTALLATION LOCATION FOR INSTALLATION OF THE CONDENSING UNITS As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve maximum cooling capacity, the location selected for outdoor unit should fulfill the following requirements : • Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air).
  • Page 33 INSTALLATION IN ZONE EXPOSED TO STRONG WIND OR HIGH SNOW FALLS (FOR HEATPUMP MODEL)
  • Page 34 MAXIMUM PIPE LENGTH AND MAXIMUM NUMBER OF BENDS When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases, system piping resistance to the refrigerant flow increases, thus lowering the cooling capacity, and as a result the compressor may become defective.
  • Page 35 3) AMSH INSTALLATION CLEARANCE SINGLE CONDENSING UNIT INSTALLATION Outdoor units must be installed such that there is no short circuit of the hot discharge air or obstruction to smooth air flow. Select the coolest possible place where intake air should not be hotter than the outside temperature (max 45 °C). All Models Minimum Distance 300 mm...

  • Page 36: Vacuuming And Charging

    FLARING TECHNIQUE (FOR FLARE CONNECTION) • Cut the pipe stages by stages, Advancing the blade of pipe cutter slowly. Extra force and a deep cut will cause more distortion of pipe and therefore extra burr. • Remove burr with the burr remover. This will avoid unevenness on the flare face which will cause gas leak. Hold the flaring end down to prevent burr from dropping inside pipe.
  • Page 37 5) After evacuation, unscrew the spindle (diagram 2B) for the gas to run to indoor unit. ADDITIONAL CHARGE (FOR FLARE CONNECTION) The refrigerant gas is charged in the outdoor unit and, if the piping length to every indoor is 5m, additional charge of the refrigerant after vacuuming is not necessary.

  • Page 38: Servicing And Maintenance

    10. SERVICING AND MAINTENANCE The design of the AMSD & AMST outdoor series allows servicing to be carried out readily and easy. The removal of the top, side, front and back panel make almost every part accessible. Model : Cooling – AMSD/A4MSD 1010A / 1015A / 1515A Heatpump –...
  • Page 39 MODEL : AMSD2020A MODEL : AMST101010A – 101020A Under normal circumstance, these outdoor units require a check and cleaning of air intake coil surface once quarterly. However, if a unit is installed in areas subjected to much oil mist and dust, the coils must be regularly cleaned by qualified Air Conditioner Service Technicians to ensure sufficient heat exchange and proper operation.

  • Page 40: Operation

    11. OPERATION ELECTRICAL CONNECTIONS Wiring regulations on wire diameters differ from country to country. Please refer to your LOCAL ELECTRICAL CODES for field wiring rules. Be sure that installation comply with such rules and regulations. GENERAL PRECAUTIONS Ensure that the rated voltage of the unit corresponds to the name plate before carrying out proper wiring according to the wiring diagram.
  • Page 41 Generally, there are two kinds of common problems, i.e. starting failure and insufficient cooling. “Starting failure” is caused by electrical defect while “insufficient cooling” is caused by improper application or defects in refrigerant circuit. DIAGNOSIS OF STARTING FAILURE Starting failure Preliminary causes :- Voltage not within +/- 10% or rated...

  • Page 42: Part List

    13. PART LIST MODEL : AMSD / A4MSD 1010 / 1015 / 1515 A/AR 1. BACK PANEL 14. SQUARE WASHER 2. TOP PANEL 15. FAN BLADE 3. CONDENSER COIL ASSEMBLY 16. RING WASHER 4. COMPRESSOR NUT M8 17. FAN MOTOR 5.
  • Page 43 MODEL : AMSD 1020A / 1520 A 1. ROTARY COMPRESSOR 2 (1.0/1.5HP) 14. SUCTION TUBE 2 2. ROTARY COMPRESSOR 1 (2.0HP) 15. FAN GUARD 3. DISCHARGE TUBE 1 16. ORIFICE FOR 18” PROPELLER 4. SUCTION TUBE 1 17. FAN BLADE 18” 5.
  • Page 44 MODEL : AMSD 1020A / 1520 AR 1. PANEL, TOP 16. ASSEMBLY, FLARE VALVE PLATE 2. ASSEMBLY, CONDENSER COIL 17. VALVE, FLARE 3 WAY ½” 3. TUBE, 4WV ‘E’ – GAS TO VALVE COMP. 1 18. VALVE, FLARE 3 WAY 5/8” 4.
  • Page 45 MODEL : AMSD 2020A 1. ROTARY COMPRESSOR 1 14. DISCHARGE TUBE 1 2. ROTARY COMPRESSOR 2 15. FAN GUARD 3. SUCTION TUBE 2 16. ORIFICE FOR 19” PROPELLER 4. DISCHARGE TUBE 2 17. FAN BLADE 19” 5. SUCTION TUBE 1 18.
  • Page 46 MODEL : AMST 101010A – 101020A 1. ROTARY COMPRESSOR 2 16. SIDE PANEL LEFT 2. ROTARY COMPRESSOR 1 17. SUCTION TUBE 2 3. ROTARY COMPRESSOR 3 18. DISCHARGE TUBE 2 4. SUCTION TUBE 1 19. FAN GUARD 5. SUCTION TUBE 3 20.
  • Page 47 MODEL : AMSH8K8A 1. BACK PANEL 14. SQUARE WASHER 2. TOP PANEL 15. FAN BLADE 3. CONDENSER COIL ASSY 16. RING WASHER 4. HEXAGON NUT 17. FAN MOTOR 5. FLAT WASHER 18. FAN MOTOR BRACKET 6. ROTARY COMPRESSOR A 19. BASE PAN ASSEMBLY 7.
  • Page 48 MODEL : AMSH8K66A / AMSH66K66A / AMSH66K555A 1. BACK PANEL 14. SQUARE WASHER 2. TOP PANEL 15. FAN BLADE 3. CONDENSER COIL ASSY 16. RING WASHER 4. COMPRESSOR NUT M8 17. FAN MOTOR 5. FLAT WASHER 18. FAN MOTOR BRACKET 6.
  • Page 49 MODEL : AMSHK77A 1. BACK PANEL ASSY 14. BASE PAN ASSY 2. TOP PANEL ASSY 15. CAPILLARY TUBE ASSY 3. CONDENSER COIL ASSY 16. PARTITION ASSY 4. MOTOR MOUNTING BRACKET 17. TERMINAL BOX ASSY 5. FAN MOTOR 18. SIDE PANEL ASSY 6.
