GPO Display NSV series User Manual

Video wall
Hide thumbs Also See for NSV series:
Table of Contents

Advertisement

Quick Links

Download this manual

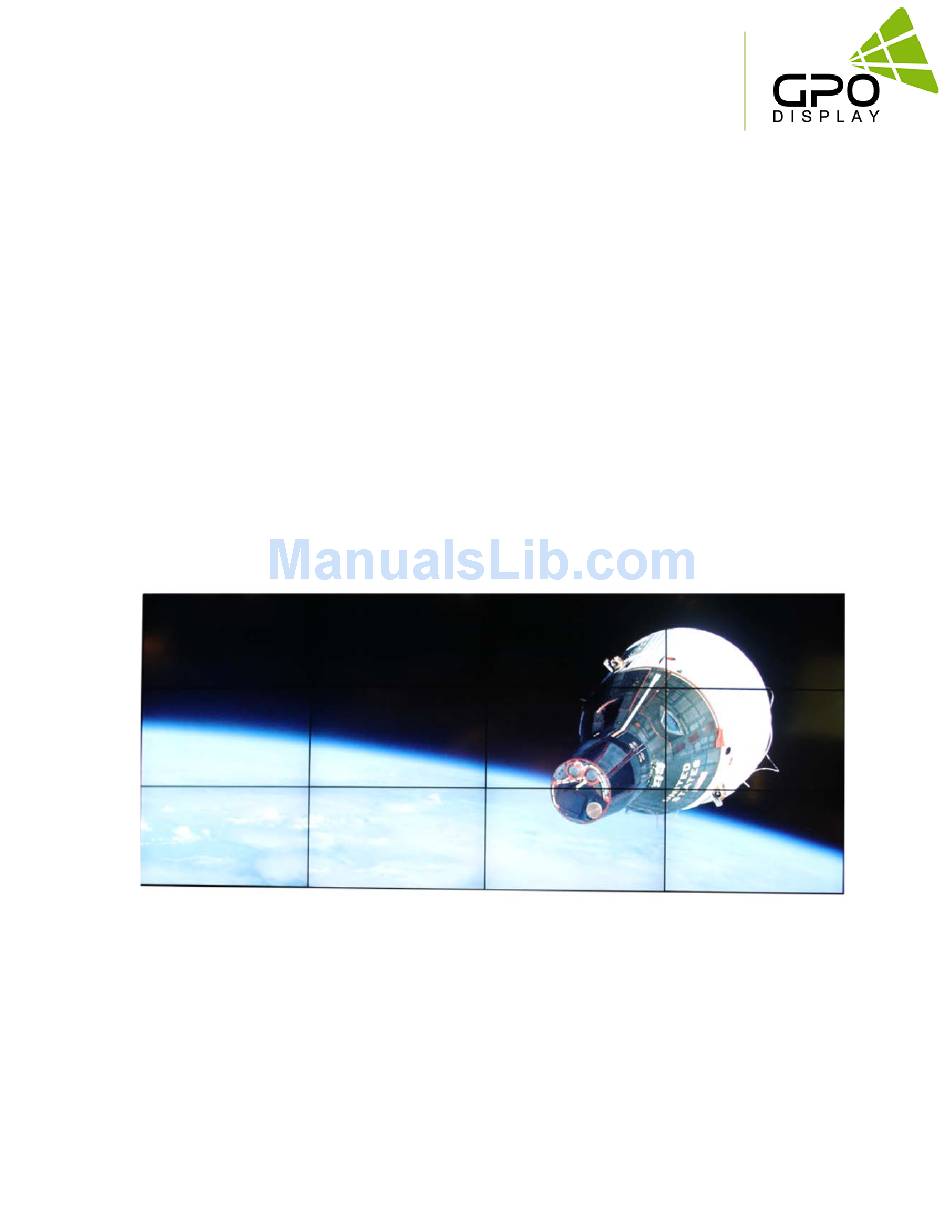

NSV-Series
Video wall
NSV-Series Video Wall

User Guide

www.gpodisplay.com
NSV-series Video wall
Before operating the unit, please read this manual thoroughly, and retain it for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSV series and is the answer not in the manual?

Questions and answers

Related Manuals for GPO Display NSV series

Summary of Contents for GPO Display NSV series

  • Page 1: User Guide

    NSV-Series Video wall NSV-Series Video Wall User Guide www.gpodisplay.com NSV-series Video wall Before operating the unit, please read this manual thoroughly, and retain it for future reference...
  • Page 2 NSV-Series Video wall  Table of Contents Instructions Safety precautions for “NSV”-series systems Mechanical Layout Connections SICP Remote Control Viewing the Menus ACR Agent Network ACR Monitor 10. Specifications www.gpodisplay.com NSV-series Video wall...

  • Page 3: Instructions

    NSV-Series Video wall Notice 1. When disconnecting the display from an electrical outlet, the plug must be pulled out from the socket. Do not remove power cord from outlet by pulling from the cord. Pull from the plug head. 2. WARNING – To reduce the risk of fire or electric shock, do not expose this appliance to rain or other forms of moisture.

  • Page 4: Important Safety Instructions

    NSV-Series Video wall Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this product near water. 6. Clean only with dry microfiber cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 5 Video wall  Instructions Thank You for Purchasing a GPO Display NSV-Series Video Wall This manual describes how to use the product and provides safety guidelines and best practices. Please read the manual carefully before installing or using the product.

  • Page 6: Clearance For Ventilation

    NSV-Series Video wall  Cautions For Consisting Series System Environmental conditions for installation  Since the panel is very sensitive to physical impact, installation requires considerable caution.  Minimum clearance (4 inches) on top/bottom/right/left of video wall array must be secured for proper ventilation.

  • Page 7: Precautions For Installation

    NSV-Series Video wall Mounting on a wall surface Please secure minimum clearance as shown in the picture for adequate ventilation and technical service. Ventilation space in front of NSV-Series displays must be furnished for heat dispersion. If the area in front of NSV-Series displays must be sealed, there must be consideration for the heat dispersion on the rear side of NSV-Series to compensate.
  • Page 8 NSV-Series Video wall Please ensure alignment on the Z-axis for a level plane across adjacent panels (as shown in the diagram below). If precautions are not heeded, GPO US will not accept responsibility for any Failure due to such installation errors. ...

  • Page 9: Handle With Caution

    NSV-Series Video wall Please retain the following instructions for panel protection This product can be damaged even with minor impact to sensitive areas. Please keep following instructions for future reference when carrying or storing the products. Panel Cushion Panel  If you need to stand LCD ...

  • Page 10: Application Information

    NSV-Series Video wall How to carry the product  At least two people are required to carry the display. When carrying the product upright, please hold the handles on the rear as well as the bottom of the display simultaneously for stability. ...

  • Page 11: Mechanical Layout

    NSV-Series Video wall  Mechanical Layout 1. DisplayPort Input 2. HDMI Input 3. DVI Input 4. DVI Output (DisplayPort, HDMI Output) 5. D-Sub Input 6. D-Sub Output 7. RS232 Input 8. RS 232 Output 9. AC Power In (100V ~ 240V) 10.

  • Page 12: Connections

    NSV-Series Video wall  Connections DVI and HDMI distributor instructions In the event that a DVI or HDMI signal distributor/distribution amplifier does not support EDID, first connect the cables to the input of the master set (monitor) and then connect the cable from the output of the master (monitor) to the distributor/splitter to the input of the slave set (Monitors) as shown below: *Input...
  • Page 13 NSV-Series Video wall Cable Connections (DVI)   Cable Connections (HDMI)  Cable Connections (DisplayPort) www.gpodisplay.com NSV-series Video wall...
  • Page 14 NSV-Series Video wall  Cable Connections (VGA)  Cable Connections (RS232) www.gpodisplay.com NSV-series Video wall...

  • Page 15: Remote Control

    NSV-Series Video wall  Remote Control 1. SOURCE : Selects Input Source 2. POWER : Turns the LCD Display On and Off 3. UP : Controls the UP cursor in the menu 4. LEFT : Controls the LEFT cursor in the menu 5.

  • Page 16: Viewing The Menus

    NSV-Series Video wall  Viewing the Menus Press the MENU button. The OSD menu is then displayed on the screen. Left side has five icons: Picture, Sound, Setup and PIP. Changing the Picture Standard 1. Press the MENU button to display the menu. 2.
  • Page 17 NSV-Series Video wall Customizing the Picture Settings Displays feature several setting options that allow you to control the picture quality. 1. Press the MENU button to display the menu. 2. Press the ENTER button. 3. Press the ▲ or ▼ button to select Custom, then press the ENTER button. 4.
  • Page 18 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...
  • Page 19 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...
  • Page 20 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...
  • Page 21 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...
  • Page 22 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...
  • Page 23 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...
  • Page 24 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...
  • Page 25 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...
  • Page 26 NSV-Series Video wall www.gpodisplay.com NSV-series Video wall...

  • Page 27: Sicp

    NSV-Series Video wall  SICP (Serial Interface Communication Protocol) This document defines all the commands and messages exchanged between the Master (a PC or the other controller) and the Slave (the displays). It also describes the ways to send or read the commands or the messages. 1.

  • Page 28: Remote Control

    NSV-Series Video wall  How to Install SICP 1. Introduction This manual booklet describes how to manage and utilize the product (Video Wall set) through remote control via RS232 protocol. This will introduce SICP V3.01 (Software that enables you to control the Video Wall via serial) and various applications will be possible with this software.
  • Page 29 NSV-Series Video wall 3. Running SICP V3.01 and Structure Go to “Start” Menu -> Programs -> SICP V3.01 to run the program. 1. Progress Bar: Shows the status of RS-232 communication 2. Horizontal & Vertical: Select Horizontal & Vertical count of sets in array. 3.
  • Page 30 NSV-Series Video wall 4. Connect & Disconnect - Users can connect RS-232 input and control from your PC using an RS232 Cable. - Select the Port into which PC is connected (refer to ③ in the image on previous page) and click “connect”...
  • Page 31 NSV-Series Video wall 2) Virtual Remocon (Remote Controller) - Select the “Remocon” Tab as shown to the left. - This virtual remote controller controls sets (displays) via RS-232 in the same manner that a physical remote controller would. Note: Functions in Slide Tab will be described in “6.
  • Page 32 NSV-Series Video wall 4) Edge Setting - Users can access “Edge Setting” only if after entering Supervisor Mode. In order to enter Supervisor mode, go to “Control Mode” in the tool bar (top) and select “Setting Mode” - Hot key: Ctrl+F3. - Click “OK”...
  • Page 33 NSV-Series Video wall - H-Set Count (Horizontal Set Count): Number of displays in array horizontally (counting left-to-right) E.g. Diagram of array on previous page shows H-Set Count of “3” V-Set Count (Vertical Set Count): ): Number of displays in array vertically (counting top-to-bottom) E.g.
  • Page 34 NSV-Series Video wall - HDMI Video Input format: Select video format of HDMI input data 0: RGB444 1: YPbPr444 2: YPbPr422 *HDMI Video Input format issues often manifest themselves in the form of a magenta/pink tint on display panels. If this issue arises, check the type of source being used. If, for example, a Blu-Ray player is being used, the HDMI Input Format on the displays must be set to “1”...
  • Page 35 NSV-Series Video wall 6. Slide Function 1) Edit Example> When users wish to display a 5X5 background from DVI input and display 3X3 (in the center) from VGA input. - Click on Edit box as described in ① on the image above. - Select PC as described in ②...
  • Page 36 NSV-Series Video wall # Add & Delete in Slide Schedule Slide (Layout) scheduling: Users set intervals/schedules for each “slide”/layout separately. Users cannot change the sequence of play after initial scheduling is activated, so the schedule must be arranged and finalized prior to clicking “Start”. “Add”...
  • Page 37 NSV-Series Video wall 5. Transmission Formats This is the format that the computer will send to the display to execute commands. The format for this command transmission is as follows (total 13 byte): ex) <STX>001PWRWOFF0<ETX> ( Set ID : 1 , Power Off Send ) 0x0f 0x0d ASCII (capital letter)

  • Page 38: Command List

    NSV-Series Video wall 8. How to choose display ID number ♦ Read Set ID Number * Attention : “Read Set ID” Function requires serial connection to only one display (1 pc : 1 display) 0x0f 0x0d ASCII (capital letter) - ID1 ~ ID3 : “FFF” ( Set ID ) - DA1 ~ DA3 : “000”...
  • Page 39 NSV-Series Video wall ♦ Remote Control Lock On/Off (RML) 0x0f 0x0d ASCII (capital letter) -ID1 ~ ID3 : Set ID (“001” ~ “100”) -DA1 ~ DA3 : “-ON” : Lock On / “OFF” : Lock Off Ex) <STX>001RMLW-ON0<ETX> ( Lock On ) Acknowledgement =>...
  • Page 40 NSV-Series Video wall ♦ Virtual Remote Control (RMT) 0x0f 0x0d ASCII (capital letter) -ID1 ~ ID3 : Set ID (“001” ~ “100”) -DA1 ~ DA3 : “MEN” (Menu) “SOU” (Source) “LEF” (Left & Volume-) “RIG” (Right & Volume+) “ENT” (Enter) “-UP”...
  • Page 41 NSV-Series Video wall ♦ Vertical Set Count (VSC) 0x0f 0x0d ASCII (capital letter) - ID1 ~ ID3 : Set ID (“001” ~ “100”) - DA1 ~ DA3 : “001” ~ “010” Ex) <STX>001VSCW0100<ETX> ( V-Set Count 10 ) Acknowledgement => <STX>001VSC#010#<ETX> ♦...
  • Page 42 NSV-Series Video wall ♦ Vertical Edge Adjust (VEG) 0x0f 0x0d ASCII (capital letter) - ID1 ~ ID3 : Set ID (“001” ~ “100”) - DA1 ~ DA3 : “000” ~ “200” Ex) <STX>001VEGW0400<ETX> ( V-Edge Adjust 40 ) Acknowledgement => <STX>001VEG#040#<ETX> ♦...
  • Page 43 NSV-Series Video wall ♦ Color Adjust VGA (D-SUB) (FCP) 0x0f 0x0d ASCII (capital letter) - ID1 ~ ID3 : Set ID (“001” ~ “100”) - DA1 ~ DA3 : “000” ~ “255” ( Color Value ) - R/W : “W” (Write) “R”...
  • Page 44 NSV-Series Video wall ♦ Power On/Off Status (PWS) 0x0f 0x0d ASCII (capital letter) - ID1 ~ ID3 : Set ID (“001” ~ “100”) - DA1 ~ DA3 : “-ON” : Power On “OFF” : Power Off Ex) <STX>001PWSR0000<ETX> ( Set ID: 1 Read Power Status ) Acknowledgement =>...

  • Page 45: Specifications

    NSV-Series Video wall Input/Output Port Description Items Specifications H Frequency Range : 20 ~ 80 kHz V Frequency Range : 55 ~ 75 Hz DP (Display Port) Maximum resolution : 1920x1080 60Hz DP 1.1a Maximum pixel rate : 162 MHz DP 1.1a H : 20 ~ 80 kHz V : 55 ~ 75 Hz...

  • Page 46: Timing Modes

    NSV-Series Video wall Timing Modes Horizontal Vertical Pixel Clock Sync Polarity Display Mode Frequency(KHz) Frequency(Hz) (MHz) (H/V) IBM, 640 x 480 31.469 59.940 25.175 IBM, 720 x 400 31.469 70.087 28.322 VESA, 640 x 480 37.861 72.809 31.500 VESA, 640 x 480 37.500 75.000 31.500...
