GPO Display DN46HE User Manual

Easy-4k virtual skylight display
Hide thumbs

Advertisement

Quick Links

Download this manual
NSV Series
Virtual
Skylight

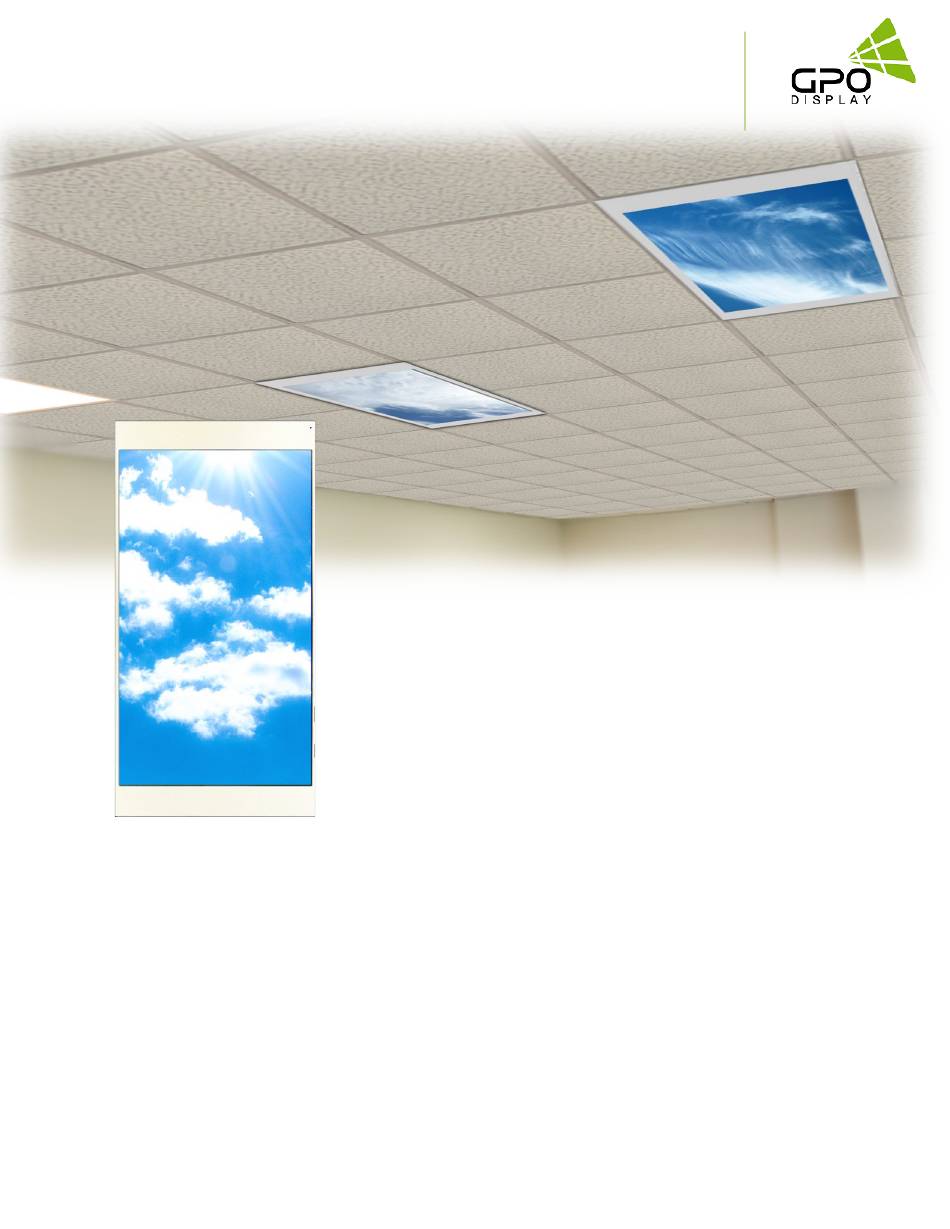

DN46HE
Display

User Manual

Easy-4K
Virtual Skylight Display
The all-new 46" 4K Virtual Skylight turns any office space into a
calming, natural setting
www.gpodisplay.com
DN46HE
Before operating the unit, please read this manual thoroughly, and retain it for future reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the DN46HE and is the answer not in the manual?

Questions and answers

Related Manuals for GPO Display DN46HE

Summary of Contents for GPO Display DN46HE

  • Page 1: User Manual

    NSV Series Virtual Skylight DN46HE Display User Manual Easy-4K Virtual Skylight Display The all-new 46” 4K Virtual Skylight turns any office space into a calming, natural setting www.gpodisplay.com DN46HE Before operating the unit, please read this manual thoroughly, and retain it for future reference...
  • Page 2 Do not remove ground prong from three-pronged plugs. If your outlet will not accept three-pronged plugs, consult an electrician for replacement. 22. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions 23. This is a Class A digital device www.gpodisplay.com DN46HE...
  • Page 3 Instructions Display Thank You for Purchasing a DN46HE display This manual describes how to use the product and provides safety guidelines and best practices. Please read the manual carefully before installing or using the product. After reading this manual, please retain for future reference. If you have any questions or a problem occurs, please contact either the company you purchased this product from, or an authorized service center.
  • Page 4 - Be careful not to scratch any parts of the display when placing the display upright. (Fig. 3) - Stand the display vertically to make sure the its weight spread evenly throughout the bottom bezel. * Do not rest on corners or lean forward/back. (Fig.4) [Fig. 4] www.gpodisplay.com DN46HE...

  • Page 5: To Install In A Portrait Layout

    • Facility to control the screen via RS232 protocol Input • Facility to control the screen via RS232 protocol Output - Please control by using SET ID RS-232 OUT • Download - software update (Not available/active for DN46HE Model) ETHERNET (RS-232) • RS-232C Communication Port via the Ethernet www.gpodisplay.com...
  • Page 6 Executes function by OSD help commands in main OSD menu. ► Increases values of user menu in main OSD menu. IR LED Status Status Color Status Power Off Normal Green No signal Green Blink DPMS Blink Download Green Fast Blink www.gpodisplay.com DN46HE...
  • Page 7 If any further information or support is needed from GPO Display, please contact us in advance to ensure ample time for support. We will be glad to help with any recommendations or information.
  • Page 8  Connect the signal input cable and tighten it by turning any associated locking screws clockwise.  Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on the screen  A wireless communication device near your monitor can affect the image. www.gpodisplay.com DN46HE...
  • Page 9 This display is intended for use in ceiling-mounted applications with the LCD panel facing downward. Ventilation is specifically designed for this type of mounting. Consult with GPO Display in cases where the display will not be placed in a downward-facing mount position in a ceiling. Refer to Premier PBM-UNI mount (or equivalent) instructions.
  • Page 10  Front facing IR remote sensor.  Internal AC outlets for media player and display .  Two sets of mounting holes for media players within the DN46HE.  Cable pass-through for power and LAN cable. Cables Cable and Media Player...
  • Page 11 To install media player, remove the cable housing.  Remove the screws around the perimeter of the cable housing cover. There are twelve (12) screws in total. These can be found in the area shown in the red dotted lines to the left. www.gpodisplay.com DN46HE...
  • Page 12  There are two sets of mounting holes (outlined in green), which will allow for the mounting of a majority of media players within DN46HE. If an alternative media player with a different mounting pattern from those provided below is desired, ask GPO Display for the desired mounting pattern.
  • Page 13  Connect cables in the input and outputs from the media player to the DN46HE display.  Connect AC power cable from the DN46HE display and media player to the internal AC outlets.  Run the LAN cable and internal AC outlet cord through the cable pass-through holes.
  • Page 14 HDMI Out HDMI IN HDMI Out HDMI IN HDMI Out HDMI IN HDMI Out RS232 Note.  If the signal cable between the product and your PC is too long, make sure to use signal amplification or optical cable. www.gpodisplay.com DN46HE...
  • Page 15 Set ID #2 Set ID #1 RS232 RS232 RS232 RS232 Set ID #4 Set ID #3 RS232 RS232 RS232 RS232 RJ45 Input OR RS232 input www.gpodisplay.com DN46HE...
  • Page 16 Supports up to 16 units. is not recommended 1920x1080@60Hz Supports up to 25 units. Set ID #2 Set ID #1 HDMI HDMI HDMI HDMI Set ID Set ID #3 HDMI HDMI HDMI HDMI OUTT Up to 3840 x 2160 @60Hz www.gpodisplay.com DN46HE...
  • Page 17 : Maximum number of column tiles to divide video image. (Support up to 10step) Y Max : Maximum number of row tiles to divide video image. (Support up to 10step) X position : Coordinate of video image’s column position. Y position : Coordinate of video image’s row position. www.gpodisplay.com DN46HE...
  • Page 18 On, and the previous video source selection is not active, the display will automatically search the different video input sources for active video. Check the color space of the input signal, to adjust the screen. [ RGB / YPbPr422 (YPbPr444)] www.gpodisplay.com DN46HE...
  • Page 19 ► Activates OSD of aspect ratio control. ► Deactivates OSD of aspect ratio control. ► Toggles picture status between motion and still image. STILL ► Enter digit value to Active SET ID ► Set Active SET ID BLUE ► Delete Active SET ID www.gpodisplay.com DN46HE...
  • Page 20 To use, press the source key and the arrow Keys to select each video source. Press the OK button to go to desired video source (HD-SDI is not available for DN46HE model) To fine-tune the picture mode Contrast / Brightness /Sharpness Adjust the picture appearance to suit your preference and viewing situations.
  • Page 21 (Light Ambient Sensor Option only) • ECO : Adjust the dimming level of 50. To set Dimming Manually adjust the brightness of the screen. (Auto Dimming Mode – Off / Only applies to certain models) Picture → Dimming → Adjustment www.gpodisplay.com DN46HE...
  • Page 22 Check the color space of the input signal, to adjust the screen. [0~255, 16~235] Color → Color Range→ Adjustment This function is internally automatically converted, please do not be adjusted without special reason [ Auto Select, 0-255, 16-235 ] www.gpodisplay.com DN46HE...
  • Page 23 Board without the use of a network. • Enable : Communication connection using a network Network Setting-Load Network Setting Network → Load Network Setting → Adjustment • Enter : Get the network information that is stored in the LAN board www.gpodisplay.com DN46HE...
  • Page 24 Network Setting – Save current Setting Network → Save current setting → Adjustment • After assigning Network info (IP Address, Gateway, Subnet), select “Save Current Setting” and then “Enter”. If you do not select “Enter”, the settings will not be saved. www.gpodisplay.com DN46HE...
  • Page 25 Timer → Off time→ Adjustment • On Time : Set the time to start automatically. • Off Time : Set the power off time automatically. Network Setting – Save current Setting Network → Save current setting → Adjustment www.gpodisplay.com DN46HE...
  • Page 26 Other Setting → Language → Adjustment Other Setting – Menu Transparency Other Setting → Menu Transparency → Adjustment Set the OSD transparency Other Setting – OSD Timeout Other Setting → OSD Timeout → Adjustment Set the screen duration time of OSD www.gpodisplay.com DN46HE...
  • Page 27 Other Setting – Local Dimming Other Setting → Local Dimming → Adjustment Set the Local dimming for the particular panel. (DN46HE) Other Setting – Reset Other Setting → Reset→ Adjustment Set the screen duration time of OSD www.gpodisplay.com...
  • Page 28 USB stick to ensure that it is plugged in. If the file for download is not in the USB stick, Please check download file. Other Setting – Version Other Setting → Version → Check Check the Firmware information of the current software www.gpodisplay.com DN46HE...
  • Page 29 * Set to warm to enhance hotter colors such as red, • Set to cool to see less intense colors with more blue [ 5700K, 6500K, 9300K, User ] If you change the GAIN value, automatically switches to the User mode. www.gpodisplay.com DN46HE...
  • Page 30 After-image appears when the When a dark image is displayed on the screen after an image with high contrast product is turned off. (black and white or gray), this may cause image sticking. This is normal for LCD screen products. www.gpodisplay.com DN46HE...
  • Page 31 During this process, a previously displayed image remains visible. This phenomenon is referred to as image sticking. TFT Layers Glass ITO or MoTi Pixel Layer www.gpodisplay.com DN46HE...
  • Page 32 NSV Series Virtual Skylight Virtual Skylight Display Control Program Display Virtual Skylight Display Control PROGRAM www.gpodisplay.com DN46HE...
  • Page 33 • Microsoft .NET Framework 4 must be installed. (or later) - Double-click on the setup icon - Follow setup wizard instructions - After installation is completed, a shortcut button will be shown on the PC and in the start menu. www.gpodisplay.com DN46HE...
  • Page 34 Menu Bar 1 Menu Save: Saves current settings (User1, User2, User3) Load: Loads saved settings (Default, User1, User2, User3) Save File: Save the current setting to a file. Load File: Load the file setting of a save file. www.gpodisplay.com DN46HE...

  • Page 35: Menu Bar

    Host IP Address: Shows IP address of the PC where the program is running (Only if the TCP/IP selected will it be enabled) Target IP Address: Shows IP address of the monitor (Only if the TCP/IP selected will it be enabled) Search: Looks for the IP address of the connected monitor (See pic#1) [Serial Port setting] [TCP/IP setting] [pic#1] www.gpodisplay.com DN46HE...
  • Page 36 User can control multiple or all displays in a video wall array in a single operation by right-clicking (Read Status, Read All Parameters, Set Coordinate, Source, Set ID) [Video Wall _ Single mode] [Video Wall _ Multi mode] www.gpodisplay.com DN46HE...
  • Page 37 Select the input source to drive the monitor. c. Select the time to drive the monitor. d. User can make settings such as adding and removing. e. User can see the set schedule. Time display and control buttons display www.gpodisplay.com DN46HE...
  • Page 38 Conduct control on all monitors in video wall at once Connection The same function as Menu Bar 1. Video wall The same function as Menu Bar 1 Set up The same function as Menu Bar 1 Schedule The same as the Schedule item in Menu Bar 1. www.gpodisplay.com DN46HE...
  • Page 39 Used when loading previously-saved settings. Wall Mode Expands input source signal across entire video wall array. Clone Mode Shows input source signal on each individual display (signal duplicated on each screen). [Wall Mode-Video wall Mode] [Clone Mode-Single Mode] www.gpodisplay.com DN46HE...
  • Page 40 Right-click in the video wall window and then select “read status”. Schedule - b This shows any schedules set for the monitor. Please refer to the schedule function for more info on scheduling. Log - c Shows past control functions visited on monitor. www.gpodisplay.com DN46HE...
  • Page 41 Press the right button of the mouse in the video wall window, and then select read status. Schedule - b The user can check the schedule state of the monitor. Please refer to the schedule function. Log - c The user can confirm the record of the execution of the program www.gpodisplay.com DN46HE...
  • Page 42 NSV Series Virtual Skylight Virtual Skylight Display Control Program Display Menu Bar 5 – Control function Control Function See below for a look at each control tab: [Screen] [Remote control] [Picture] [Setup] [Sound] [Color] www.gpodisplay.com DN46HE...
  • Page 43 Virtual Skylight Display Control Program Display Example Control Procedure 3) Connection 2) Video Wall Configuration 1) Setup Select connection method (Serial or TCP/IP) Select desired configuration Select the model 4) SET ID 5) Control Start Assign Set ID #’s to monitors www.gpodisplay.com DN46HE...
  • Page 44 User Manual Specifications Support Signals Items Specifications H Frequency Range : 20~82 kHz V Frequency Range : 55 ~ 90 Hz (VESA standard) UHD INTERFACE HDMI, DP Maximum resolution : 3840x2160@60Hz Supported Signals Maximum pixel rate : 594 MHz HD-SDI : 2.970Gbps SD-SDI HD-SDI (Optional) : 270Mbps Supported 4K Format...

  • Page 45: Serial Interface

    NSV Series Virtual Skylight Protocol Display Serial Interface Communication Protocol [Virtual Skylight_Rev2.0] www.gpodisplay.com DN46HE...
  • Page 46 User Manual  SICP (Serial Interface Communication Protocol) This document defines all the command and messages exchanged between the Master (a PC or the other controller) and the Slave (the displays). It also describes the ways to send or read the commands or the messages. 1.
  • Page 47 5. Protocols Formats by DSUB 9Pin RS232 Serial Port This is the format that the computer will send to the display to execute commands. The format for this command transmission is as follows ♦ Setting Command to Display (5bytes) Value Set ID 0xF5 0x88...
  • Page 48 5. Protocols Formats by DSUB 9Pin RS232 Serial Port ♦ Virtual Remote Control(4bytes) Value Set ID 0xF4 0x88 0xFD KEY CODE (0x00~0x63) STX : Start of Text ( 0xFX ) F = Command Start Sending, X = Number of Byte to Send Example (0xF4) : Start Sending 4 Bytes of Packet Data (Using for Parameter Reading or Virtual Remote Control) (0xF5) : Start Sending 5 Bytes of Packet Data...
  • Page 49 6. Protocols Formats by Ethernet Port To set up the parameters to Displays, transfer the following instruction. Transport Layer : TCP Port : 5000 Command : *Ethernet Command + **Serial Command * Ethernet CMD : ASCII : DCOM HEX : 0x44 0x43 0x4F 0x4D ♦...
  • Page 50 6. Protocols Formats by Ethernet Port ♦ Read Command from Display Ethernet CMD Serial CMD DA 1 Set ID 0xF4 0x89 0xFE 0xXX (0x00~0x63) ASCII * Ethernet Command DA1~DA4: Ethernet Command ASCII Code: DCOM Hex Code: 0x44 0x43 0x4F 0x4D * Serial Command STX: 0xF4 (start sending 4 bytes of packet data ) R/W: Read and Write Protocol...
  • Page 51 6. Protocols by Ethernet Port ♦ VIRTURAL remote Ethernet CMD(4bytes) Serial CMD(4bytes) DA 1 Set ID 0xF4 0x88 0xFD KEY CODE (0x00~0x63) ASCII * Ethernet Command ASCII Code: DCOM Hex Code: 0x44 0x43 0x4F 0x4D * Serial Command STX : Start of Text ( 0xFX ) F = Command Start Sending, X = Number of Byte to Send Example (0xF4) : Start Sending 4 Bytes of Packet Data (Using for Parameter Reading or Virtual Remote Control)

  • Page 52: Command List

    7. Command List 7.1 Main Function Settings ♦ Set Power On/Off (0xFE ) Value 0xF5 0x88 0x00 – 0x63 0xFE 0xFE 0xXX STX : Start of Text ( 0xFX ) 0xF5 : Start Sending 5 Bytes of Packet Data R/W : Read and Write Protocol 0x88 = Write (Command for writing Protocol) ID : SET ID Number (Set ID 0~99) 0x00 = Wildcard (All Sets)
  • Page 53 ♦ Remote Control Lock On/Off Value 0xF5 0x88 0x00 – 0x63 0xFE 0x36 0xXX CMD: 0x36 for command of Remote Control Lock Value: 0x00 for OFF 0x01 for ON ♦ Source Change Value 0xF5 0x88 0x00 – 0x63 0xFE 0x01 0xXX CMD: 0x01 for command of Video Input Source Value: 0x01 for Display Port...
  • Page 54 7.2 Video wall Settings (Multi Vision) ♦ Write Set ID Number * Attention : Write Set ID Function must be only one connect Monitor (1 pc : 1 monitor) Value 0xF5 0x88 0x00 – 0x63 0xFE 0x2A 0xXX ID : SET ID Number (Set ID 0~99) 0x01 ( Set ID# 1 ), 0x02 ( Set ID# 2), 0x0C ( Set ID# 12 ), 0x10 ( Set ID# 16 )R/W: 0xFE (Set Parameter Value) CMD: 0x2A for SETID Value: 0x00 –...
  • Page 55 ♦ Horizontal Gap Adjust Value 0xF5 0x88 0x00 – 0x63 0xFE 0x46 0xXX CMD: 0x46 for X GAP Value: 0x03 for UNB (3.5mm B2B) 0x02 for ENB (1.8mm B2B) Active ♦ Vertical Gap Adjust Value 0xF5 0x88 0x00 – 0x63 0xFE 0x47 0xXX...
  • Page 56 Example) 55” UNB Videowall Display (2x2) SetID#1 SetID#2 SetID#3 SetID#4 Set ID must be set before Videowall Display installation Set Videowall mode for 2x2 configuration Command set for Set ID 1 • 0xF5 0x88 0x01 0xFE 0x44 0x02 (X Max=2) •...
  • Page 57 7.3 Picture Control Settings ♦ Contrast Value 0xF5 0x88 0x00 – 0x63 0xFE 0x04 0xXX CMD: 0x04 for Contrast Value: 0x00 – 0x64 (0 – 100 ♦ Brightness Value 0xF5 0x88 0x00 – 0x63 0xFE 0x05 0xXX CMD: 0x05 for Brightness Value: 0x00 –...
  • Page 58 ♦ Dimming Control Value 0xF5 0x88 0x00 – 0x63 0xFE 0x3B 0xXX CMD: 0x3B for DIM LEVEL control Value: 0x00 – 0x64 (0 – 100) 0 -> Min Brightness 100 -> Max Brightness ♦ Max Ambient Illuminance Value 0xF5 0x88 0x00 –...
  • Page 59 7.4 Color Control Settings ♦ Color Temperature Value 0xF5 0x88 0x00 – 0x63 0xFE 0x03 0xXX CMD: 0x03 for Color Temperature Control Value: 0x00 ( 3200K ), 0x01 ( 5600K ), 0x02 ( 6500K ), 0x03 ( 7800K ), 0x04 ( 9300K ), 0x05 ( USER ) : user setting will use RGB gain setting values.

  • Page 60: Timer Setting

    7.5 Timer Setting ♦ Current Hour Value 0xF5 0x88 0x00 – 0x63 0xFE 0x32 0xXX CMD: 0x32 for Current Time Hour Value: 0x00 – 0x17 ( 0 – 23 ) ♦ Current Minute Value 0xF5 0x88 0x00 – 0x63 0xFE 0x33 0xXX CMD: 0x33 for Current Time Minute...
  • Page 61 ♦ Off Time Hour Value 0xF5 0x88 0x00 – 0x63 0xFE 0x27 0xXX CMD: 0x27 for Off Time Hour Value: 0x00 – 0x23 ( 0 – 17 ) ♦ Off Time Minute Value 0xF5 0x88 0x00 – 0x63 0xFE 0x28 0xXX CMD: 0x28 for Off Time Minute Value: 0x00 –...
  • Page 62 User Manual Specifications Supported Timing: UHD (HDMI, DP) H –Frequency V-Frequency Pixel Frequency Resolution Comment ( kHz) ( Hz ) ( MHz ) 640x480 31.469 59.94 25.175 640x480 37.500 75.0 31.5 800x600 37.879 60.317 40.0 800x600 46.875 75.0 49.5 1024x768 48.780 60.001 64.11...
  • Page 63 User Manual Specifications Support Signals Items Specifications H Frequency Range : 20~82 kHz V Frequency Range : 55 ~ 90 Hz (VESA standard) UHD INTERFACE HDMI, DP Maximum resolution : 3840x2160@60Hz Supported Signals Maximum pixel rate : 594 MHz HD-SDI : 2.970Gbps HD-SDI (Optional) SD-SDI : 270Mbps Supported 4K Format...
  • Page 64 User Manual Specifications Screen Size (Diag.) 46” Panel Technology Commercial-grade Direct-LED backlight Resolution 1920 x 1080 Pixel Pitch (mm) 0.53025 (H) x 0.53025 (V) Surface Treatment Anti-Glare coating (3H), Haze 11% (Typ.) Brightness (Typ.) 700nit Contrast Ratio (Typ.) 4,000:1 Displayable Colors 10bit(D), 1073,7 Million colors Viewing Angle 178 °...
