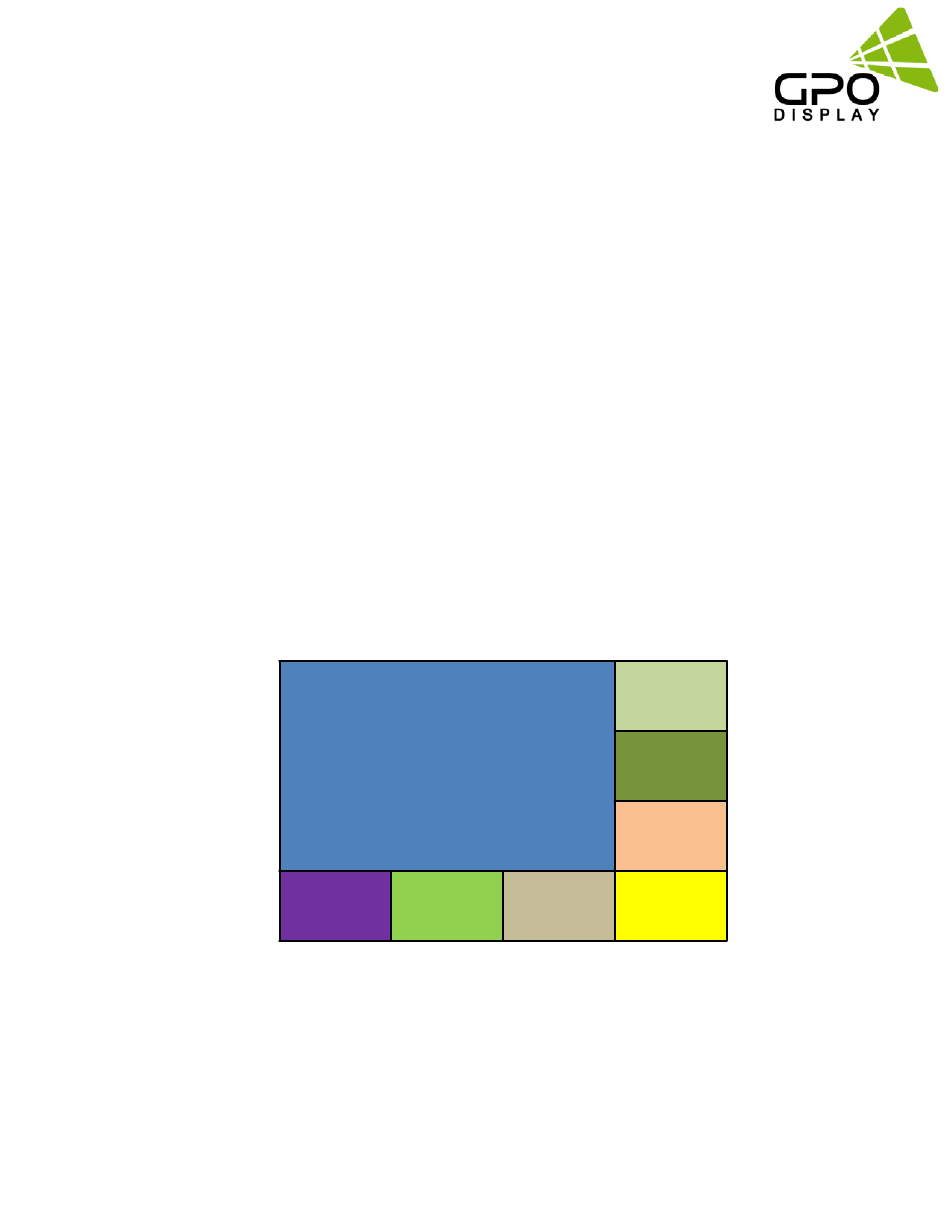

- Page 1 Quick Preset Serial command [M-SICP Protocol v2.1] Models: NSV / ZEN / G2T Series www.gpodisplay.com Serial Command-Quick Preset...
-
Page 2: Protocol Definition
Multi-window SICP M-SICP (Multi-window Serial Interface Communication Protocol) This document defines all the command and messages exchanged between the Master (a PC or the other controller) and the Slave (the displays). It also describes the ways to send or read the commands or the messages. 1. -
Page 3: Error Acknowledgement
5. Transmission Formats This is the format that the computer will send to the display to execute commands . The format for this command transmission is as follows: ( total 13 byte ) ex) <STX>001PWRWOFF0<ETX> ( Set ID : 1 , Power Off Send ) 0x0f 0x0d ASCII (capital letter) -
Page 4: Command List
Multi-window SICP 8. Command List ♦ Zoom IN/OUT(ZOM) CM3 R/W 0x0f 0x0d ASCII (capital letter) - ID1 ~ ID3 : “000” ( Set ID ) - R/W : “W” (Write) - MH : “1”, “2”, ”3” … “9”,”0” ( H-Set Count Of Main Window ) - MV : “1”, “2”, ”3”... - Page 5 Multi-window SICP Ex) <STX>000ZOMW44I0<ETX> ( 4x4, Zoom IN, DVI ) ♦ Multi Window (MLW) * Before sending the Multi Window Command, set the display to “Zoom Out” (Individual Display). CM1 CM2 CM3 R/W MH 0x0f 0x0d ASCII - LT1 ~ LT3 : “001” ~ “100” (Left Top Edge Of Sub window ) - R/W : “W”...
- Page 6 Multi-window SICP Example (4x4 configuration) Preset 1 . [4x4, Zoom OUT, DVI] <STX>000ZOMW44O0<ETX> Preset 2. [4x4, Zoom IN, DVI] <STX>000ZOMW44I0<ETX> www.gpodisplay.com Serial Command-Quick Preset...
- Page 7 Multi-window SICP Preset 3. [Left top 6 , Main 4x4 , Sub 2x2] <STX>006MLWW4422<ETX> Preset 4. [Left top 1 , Main 4x4 , Sub 3x3] <STX>001MLWW4433<ETX> www.gpodisplay.com Serial Command-Quick Preset...
- Page 8 Multi-window SICP Preset 5. [Left top 1 , Main 4x4 , Sub 2x2] , [Left top 3 , Main 4x4 , Sub 2x2] [Left top 9 , Main 4x4 , Sub 2x2] , [Left top 11 , Main 4x4 , Sub 2x2] <STX>001MLWW4422<ETX>...
- Page 9 Multi-window SICP Example (2x2 configuration) Preset 1 . [2x2, Zoom OUT, DVI] <STX>000ZOMW22O0<ETX> Preset 2. [2x2, Zoom IN, DVI] <STX>000ZOMW22I0<ETX> www.gpodisplay.com Serial Command-Quick Preset...
- Page 10 Multi-window SICP Preset 3. Side by side portrait [Left top 1 , Main 2x2 , Sub 1x2] [Left top 2 , Main 2x2 , Sub 1x2] <STX>001MLWW2212<ETX> <STX>002MLWW2212<ETX> Preset 4. a quad (four images), <STX>000ZOMW22O0<ETX> www.gpodisplay.com Serial Command-Quick Preset...
- Page 11 Multi-window SICP Preset 5. a single (1 image) <STX>000ZOMW22I0<ETX> www.gpodisplay.com Serial Command-Quick Preset...
