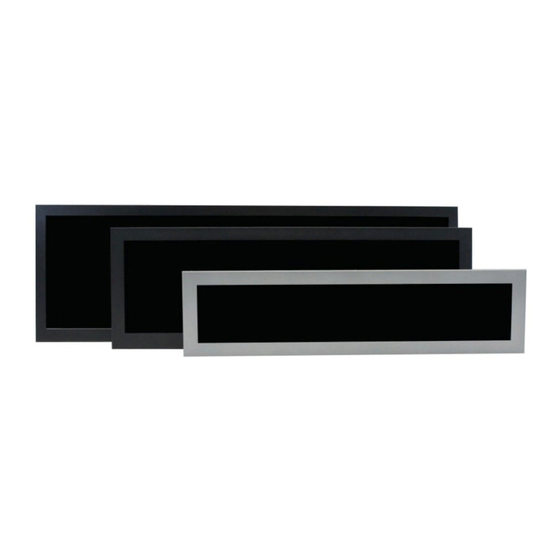

Panoramic Display
User Guide
[3.0]
Before operating the unit, please read this manual thoroughly, and retain it for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA12H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GPO Display PA12H

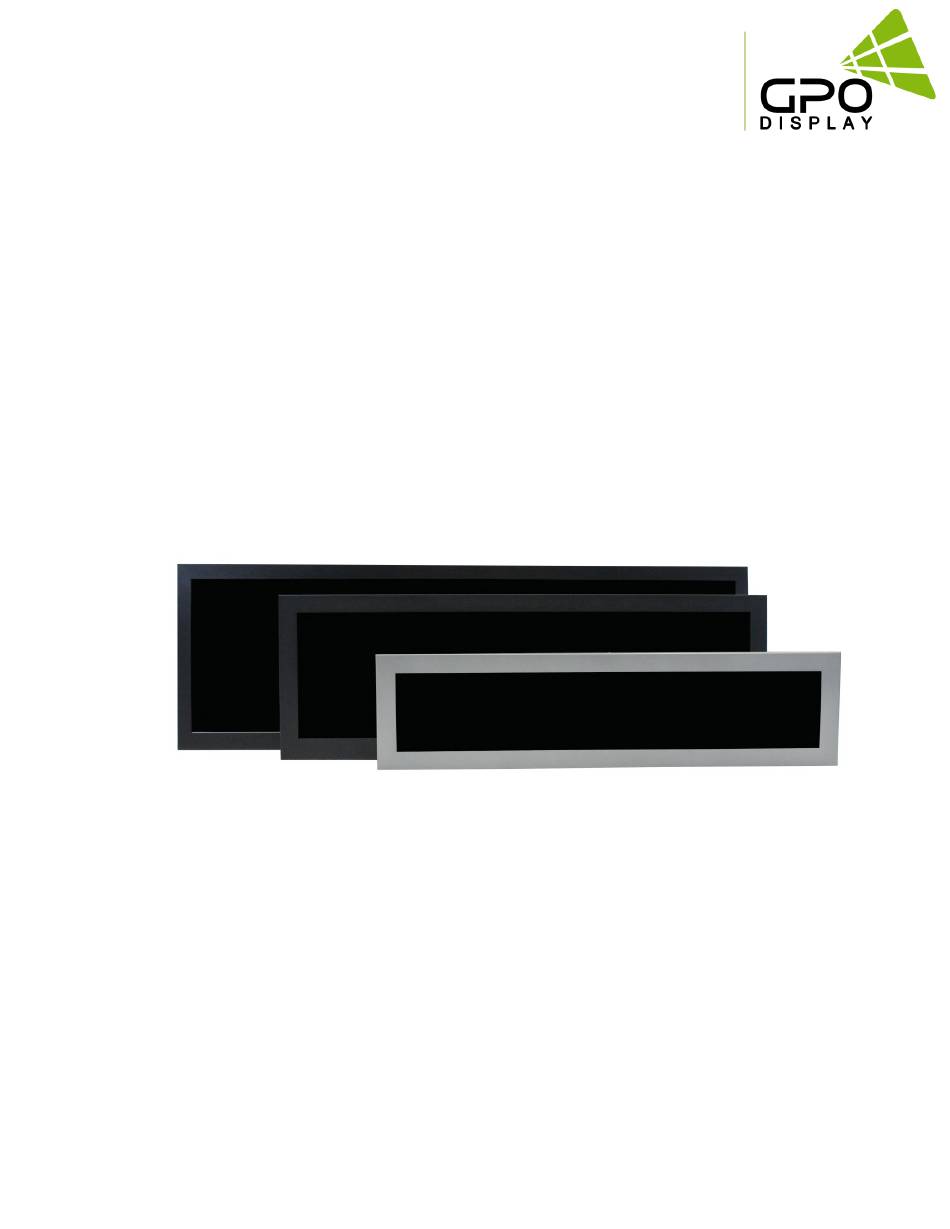

  • Page 1 Panoramic Display User Guide [3.0] Before operating the unit, please read this manual thoroughly, and retain it for future reference...
  • Page 2 User manual Notice 1. When disconnecting the display from an electrical outlet, the plug must be pulled out from the socket. Do not remove power cord from outlet by pulling from the cord. Pull from the plug head. 2. WARNING – To reduce the risk of fire or electric shock, do not expose this appliance to rain or other forms of moisture.
  • Page 3: Important Safety Instructions

    User manual Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this product near water. 6. Clean only with dry microfiber cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 4: Remote Controller

    User manual Accessories Batteries (AAA x 2) Remote Controller HDMI Cable RS232 Cable  Wall Mount  Trim  Adapter Bracket Power cord AC/DC Power Adapter NOTE: Images not provided as appearance of above items varies by screen size/model Remote controller Function Data Code POWER...
  • Page 5 User manual OSD Controls Button Function Status Green : Normal Operation Indicates operation status Off : Off Mode Green Blinking : No Signal POWER Turn on or turn off the power Display the OSD menu on no menu status MENU Exit a menu of sub-menu SELECT Select highlighted function...
  • Page 6 User manual Content Layout Model Size Optimal Input Resolution Content Res Content Position Native Portion PA12H 12” 1024 x 768 1024 x 256 Content is created using PA14H 14” 1280x960 1280 x 398 the top or bottom half of the optimal input PA16H 16”...
  • Page 7: Supported Timing

    User manual Supported Timing Horizontal Timing Vertical Timing Pixel Freq. Freq. Total Active Freq. Total Active Mode Pixel Pixel Line Lind 640*350@70Hz 25.144 31.43 70.00 640*400@56Hz 21.043 24.80 56.40 640*400@60Hz 25.200 31.50 60.00 720*400@70Hz 28.287 31.50 70.00 640*480@50Hz 23.831 24.60 49.60 640*480@60Hz 25.175...
  • Page 8 User manual OSD MENU OVERVIEW (for PA19H-PA50H) In this menu system, there are several ways to adjust the menu settings provided. The OSD menu interface depicted on the left below is the main menu tree. The submenus are depicted below to the right: ...
  • Page 9: Display Setting

    User manual  Display Setting www.gpodisplay.com Panoramic Display...
  • Page 10: Color Setting

    User manual  Color setting www.gpodisplay.com Panoramic Display...
  • Page 11: Advance Settings

    User manual  Advance Settings www.gpodisplay.com Panoramic Display...
  • Page 12 User manual  Advance Settings (cont.) www.gpodisplay.com Panoramic Display...
  • Page 13 User manual  Input Source Select  Other settings www.gpodisplay.com Panoramic Display...
  • Page 14: Osd & Structure

    User manual OSD & Structure for PA12H, PA14H, and PA16H www.gpodisplay.com Panoramic Display...
  • Page 15 User manual OSD MAIN MENU www.gpodisplay.com Panoramic Display...
  • Page 16: Osd Structure

    User manual OSD Structure ITEM Sub Menu Description Value Brightness Adjust the backlight level of screen 50(0~100) Contrast Increase/ decrease picture contrast 50(0~100) Sharpness Control the clarity of details of pictures 2(0 ~ 4) Picture H Position Adjust picture horizontal position 50(0~100) V Position Adjust picture vertical position...

This manual is also suitable for:

Pa14hPa16hPa19hPa20hPa27hPa28h ... Show all
