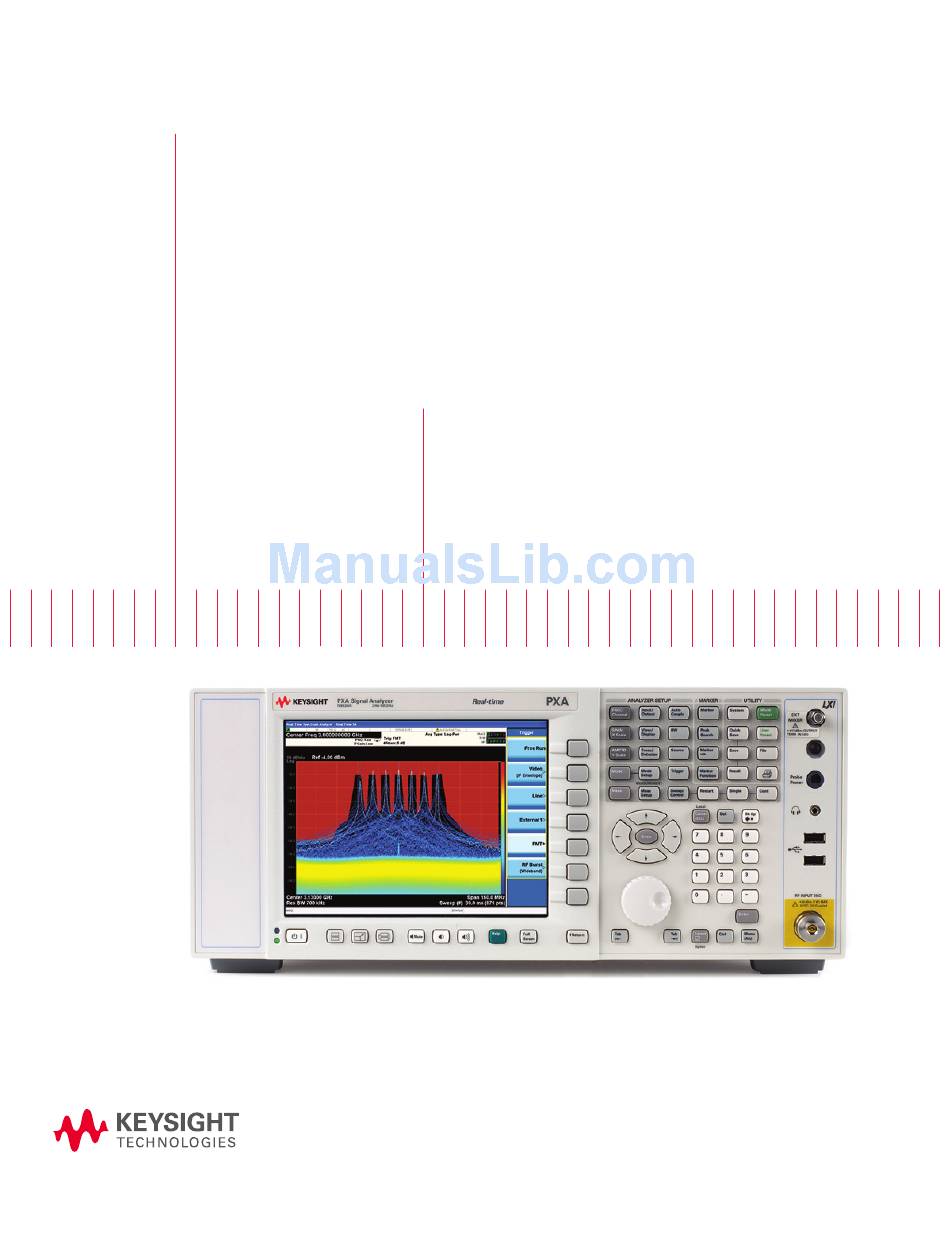

Keysight PXA
X-Series Signal Analyzer
N9030A
Configuration Guide
This PXA configuration guide will help you
determine which performance options,
measurement applications, accessories,
and services to include with your new PXA
or to add as upgrades to an existing PXA.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Keysight N9030A-503
Summary of Contents for Keysight N9030A-503
- Page 1 Keysight PXA X-Series Signal Analyzer N9030A Configuration Guide This PXA configuration guide will help you determine which performance options, measurement applications, accessories, and services to include with your new PXA or to add as upgrades to an existing PXA.
- Page 2 02 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Configure Your Keysight N9030A PXA Signal Analyzer This step-by-step process will help you configure your new PXA X-Series signal analyzer. Tailor the performance to meet your require- ments. For detailed specifications, refer to the specifications guide (N9030-90017). For a summary of detailed specifications, refer to the data sheet (5990-3952EN).
- Page 3 03 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Step 2. Add a preamplifier Description Option number Additional information Preamplifier, 100 kHz to 3.0 GHz N9030A-P03 Compatible with frequency range options: N9030A-503, N9030A-508, N9030A-513, N9030A-526, N9030A-543, N9030A-544, and N9030A-550 Preamplifier, 100 kHz to 8.4 GHz...
- Page 4 Prevents the saving/recall of measurement results or user configurations to/from instrument’s data storage When used with the Keysight 11970 Series external mixers, an external diplexer is required. Recommended diplexer can be purchased from Keysight as N9029AE13, or from OML Inc. as DPL313B.
- Page 5 Note: The last two letters of the ordering numbers indicate the license type—FP stands for fixed perpetual, TP for transportable perpetual; it is recom- mended that you configure each application with the same license type; visit www.keysight.com/find/X-Series_transportable for more information...
- Page 6 06 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Step 11. Choose measurement application or software and license type, continued Transportable Description Fixed license Additional information license Wireless connectivity Mobile WiMAX™ N9075A-2FP N9075A-2TP Standard-based, one-button Mobile WiMAX measurements;...
- Page 7 07 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Step 11. Choose measurement application or software and license type, continued Transportable Description Fixed license Additional information license General purpose, continued Basic signal analysis package; adds MATLAB software environment and the...
- Page 8 08 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Step 12. Choose accessories, continued Description Option number Additional information W-band waveguide harmonic mixer, 75 to 110 GHz M1970W Requires Option EXM; USB mixer with smart features E-band waveguide harmonic mixer, 60 to 90 GHz M1971E-001 Requires Option EXM;...
- Page 9 For more information on accessories go to: www.keysight.com/find/accessories Other calibration options may be available; for more information on calibration go to: www.keysight.com/find/calibration For more information on training and application support services go to: www.keysight.com/find/training...
-
Page 10: Instrument Upgrades
Fast license-key upgrades for performance options that do not require You can upgrade! additional hardware: 1. Place an order for the upgrade with Keysight and request to receive the Options can be option upgrade entitlement certificate and a one-time software upgrade... - Page 11 11 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Requirements (PXA must Description Upgrade Number Additional Information already include the following) Increase analysis bandwidth N9030AK-B25 None Also enables 25 MHz per channel baseband bandwidth if from 10 to 25 MHz...
- Page 12 12 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Requirements (PXA must Description Upgrade Number Additional Information already include the following) Upgrade operating system to Windows Embedded Standard 7 From 32-bit processor N9094AK-W7X Upgrade the existing 32-bit processor with...
-
Page 13: Related Literature
13 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Description Upgrade Number Requirements Additional Information Add precompliance EMI features N9030AK-EMC None Compliant with CISPR 16-1-1 2007 detectors and BWs Add enhanced display package N9030AK-EDP None Add external source control... - Page 14 14 | Keysight | N9030A PXA X-Series Signal Analyzer - Configuration Guide Evolving Since 1939 For more information on Keysight For more information on Keysight Technologies’ products, applications or Technologies’ products, applications or Our unique combination of hardware, software, services, and people can help you...
