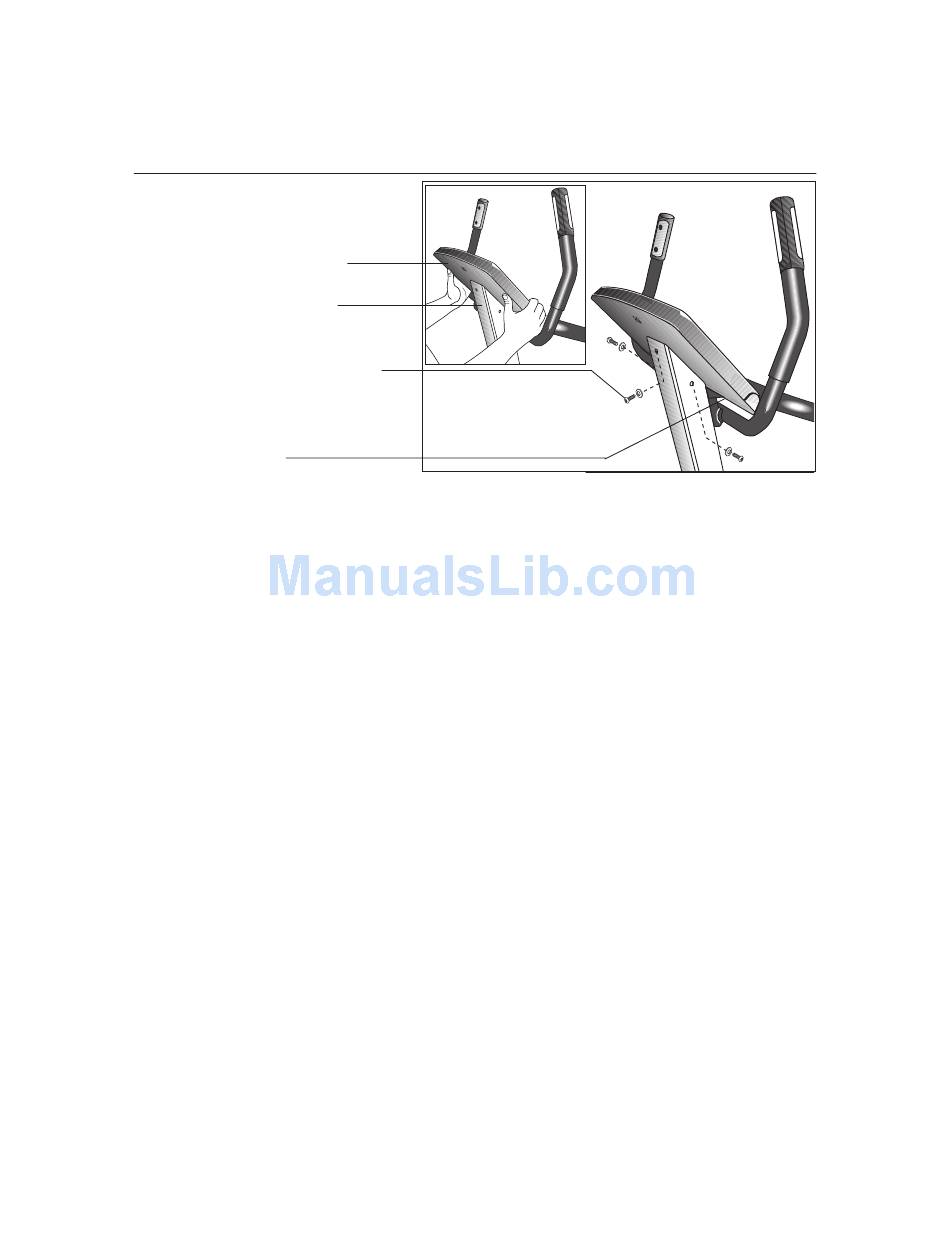

Diagram 10 Secure the display
console to the upper
column.
Display console
Upper column
Screws (C), lock washers
(D), and washers (E)
Make sure that the base
of console is parallel to
the top of the handrail
clamp.
d. Remove three screws (C), lock washers (D) and washers (E) from the
Hardware kit. Place the lock washers and then the washers onto the
screws. Align the mounting holes on the display with the upper column
and insert the screws so that the washers are against the upper column.
Diagram 10.
Note: Be sure that the bottom of the display is parallel with the top of the
handrail clamp.
e. Alternately tighten each screw using the appropriate hex key. Do not
overtighten.
