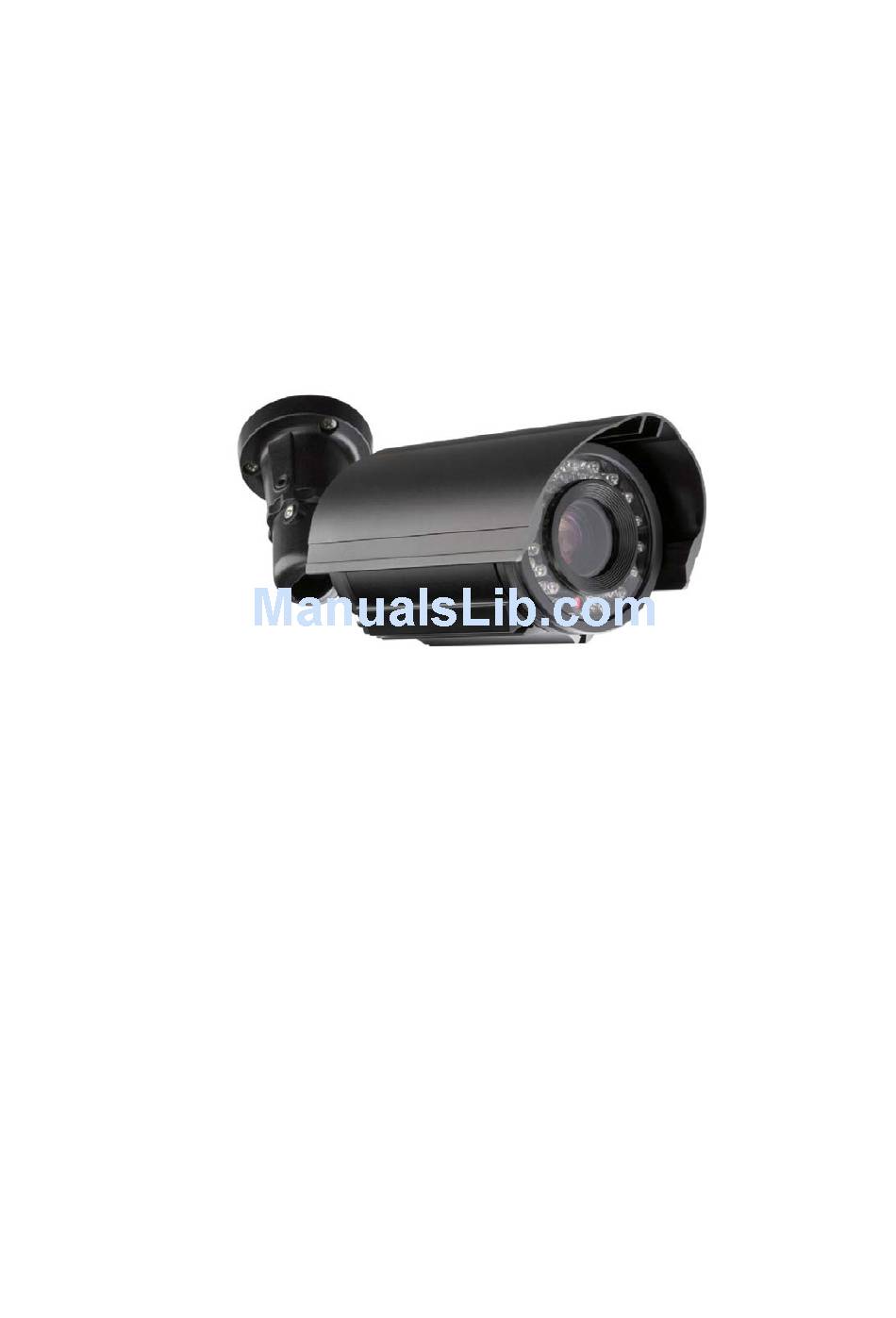

- Page 1 Day & Night IR 10X Zoom Camera Filter Changeable Manual Manual CC 5451 IR...
- Page 2 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 3 Features 10x Optical Zoom Lens High Sensitivity The built-in 10X optical zoom lens is The built-in high sensitivity SONY very reliable, If features manual focus, COLOUR zoom and auto iris function. CCD enables clear images down to 0.7Lux (0.1Lux in B/W Horizontal Resolution 500 TV Lines DNR (Digital Noise Reduction)
- Page 4 Warning The camera requires periodic inspection. Contact an authorised technician to carry out the inspection. Stop using your camera when you find it malfunctioning. If the camera emits smoke or is unusually hot for a long period, a fire may be caused. Do not install the camera on a surface that can not support it.
-
Page 5: Table Of Contents
Contents Precautions Names and Functions of Parts Dimensions Installation Cable Connections Camera Operation Menu Configuration Settings WHITE BALANCE BACKLIGHT (Backlight Compensation) AGC (Automatic Gain Control) DNR (Digital Noise Reduction) SENS UP (Low illuminance) SPECIAL MIRROR SHARPNESS EXIT Troubleshooting Specifications Manual CC 5451 IR... -
Page 6: Precautions
Precautions Do not install the camera in extreme temperature conditions. Only use the camera under conditions where temperatures are between -10°C and +50°C. Be especially careful to provide ventilation when operating under high temperatures. Do not install the camera in an environment where the humidity is high. It can cause the image quality to be poor. -
Page 7: Names And Functions Of Parts
• Names and Functions of Parts 1. Sunshield 2. IR-LED: 33 pieces 3. Lens: 10X Optical Lens 4. Remote Controller :OSD Modus → Cursor up in the menu screen . Zoom Modus → Zoom control :OSD Modus → Cursor down in the menu screen. Zoom Modus →... -
Page 8: Dimensions
• Names and Functions of Parts Service connector for easy installation of the camera. - A service monitor can be connected to the camera, allowing the operator to easily atjust camera angles and settings locally during installation. Dimensions Manual CC 5451 IR... -
Page 9: Installation
Installation 1. Bracket & Camera Mounting - Affix the bracket to the mounting surface. - Use the supplied screws to attach to the mounting surface using the pre-drilled holes in the bracket. 2. Power Connect & Monitor Impedance - Use a DC12V/1A regulated PSU or AC24V 1A. - To avoid fire or shock hazard, always use a CE marked PSU. -
Page 10: Cable Connections
Cable Connections Camera Operation Menu Configuration Main Setup Menu LENS (selection) AUTO MANUAL Shutter MANUAL White Balance Manual Backlight MIDDLE HIGH MIDDLE HIGH MIDDLE HIGH SENS UP AUTO Special Function CAM Title Day/Night Sync CAM.ID Privacy Morror Digital Zoom Sharpness Reset Return Exit... -
Page 11: Settings
Settings Settings can be made adjusted using the remote controller. 1. Press the Setup button - Settings can now be made. The SETUP menu is displayed on the monitor. 2. Select a menu item from the list available by using the UP and DOWN buttons. - The cursor can be moved up or down by using the UP and DOWN buttons. - Page 12 Camera Operation 3. When the LEFT or RIGHT button is pressed, available values and modes are displayed in order. Keep pressing the button until you get to the mode you wish to select. 4. Select 'EXIT' and then press the SETUP button to exit the set up Menu. Note appears at the mode selected, it means that there is a sub-menu which can be selected by pressing the SETUP button.
- Page 13 Note • The brightness of the screen can be adjusted in AUTO mode. The brightness can be adjusted within the range of 1 ~ 70. The optimum level of brightness for the user can be achieved by using this adjustment. •...
-
Page 14: White Balance
Note • While using the internal synchronous system, if the shutter setting is on 'ESC' and the camera is directly facing bright fluorescent lights the image on the screen can be adversely affected - therefore choose the installation location carefully. •... -
Page 15: Backlight (Backlight Compensation)
Camera Operation BACKLIGHT (Backlight Compensation) When there is a strong backlight behind the object, clear images of the background as well as the object can still be obtained by using the Backlight function. 1. Please position the arrow to point to 'BACKLIGHT' on the SETUP menu by using the UP and DOWN buttons. -
Page 16: Agc (Automatic Gain Control)
AGC (Automatic Gain Control) 1. Position the cursor to point to AGC on the SETUP menu by using the UP and DOWN buttons. 2. Select the value required by pressing the LEFT or RIGHT button. As the level of gain increases the screen gets brighter but the level of noise will also increase. -
Page 17: Sens Up (Low Illuminance)
OFF: There is no reduction in noise level. LOW: There is a small reduction in noise level with almost no ghost image. MIDDLE: The most effective mode. There is a sufficient reduction in noise levels without causing significant ghosting. HIGH: The level of noise is reduced greatly, however there is an increase in ghosting. Note When AGC is turned off, DNR does not operate. -
Page 18: Special
Note The maximum storage magnification in low light level movement situations can be adjusted by pressing the SETUP button in AUTO mode. (x2~x128) As the magnification increases the screen gets brighter; however the after image also increases. Of storage magnification is increased while SENS UP is operational, it may cause noise and spots may appear;... - Page 19 3. Press the SETUP button. 4. Up to 15 characters can be used for the camera TITLE. - Move the cursor to the letter required by using the UP and DOWN button. - Select an ID from A,B~Y,Z, a,b~y,z, 0,1~8,9 by using the UP, DOWN, LEFT and RIGHT buttons.
- Page 20 • The TITLE will appear in the top left corner. • Select the position where the TITLE is to be displayed by using the 4 directional buttons, and then press the SETUP button. Move the cursor to ‘POS’ and press SET button. 6) Select 'END' and press the SETUP button to complete TITLE input.
- Page 21 Note • When the mains frequency is 50Hz, the line-lock mode (NTSC Models) cannot be used. • When the mains frequency is 60Hz, the line-lock mode (PAL Models) cannot be used. CAMERA ID: The Zoom and Focus functions can be remotely controlled by RS-485 communication. •...
-
Page 22: Mirror
• Select the area to be masked from the 4 areas in AREA SEL mode. • Select ON mode for the chosen area. • Adjust the size and position of the area to be concealed by using the UP, DOWN, LEFT and RIGHT buttons. -
Page 23: Troubleshooting
Troubleshooting If there are problems in operation, please refer to the items below. If the problem persists, please contact the agent you purchased this product from. Problems Troubleshooting • Please check the power connection. Nothing appears on the screen. • Please check the video signal line connection. •... -
Page 24: Specifications
Specifications ITEM NTSC Power Supply DC 12V / AC 24V Dual Power Power Consumption 800mA (Max) at IR LED ON (DC 12V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Image Sensor 1/4 inch interline transfer CCD Scanning System 2:1 Interlace Synchronization INT/LL selectable sync...
