Dynojet Power Commander V Installation Instructions page 4

FIG.D
Unplug
FIG.E
TPS
11-014
Posi-tap
www.powercommander.com

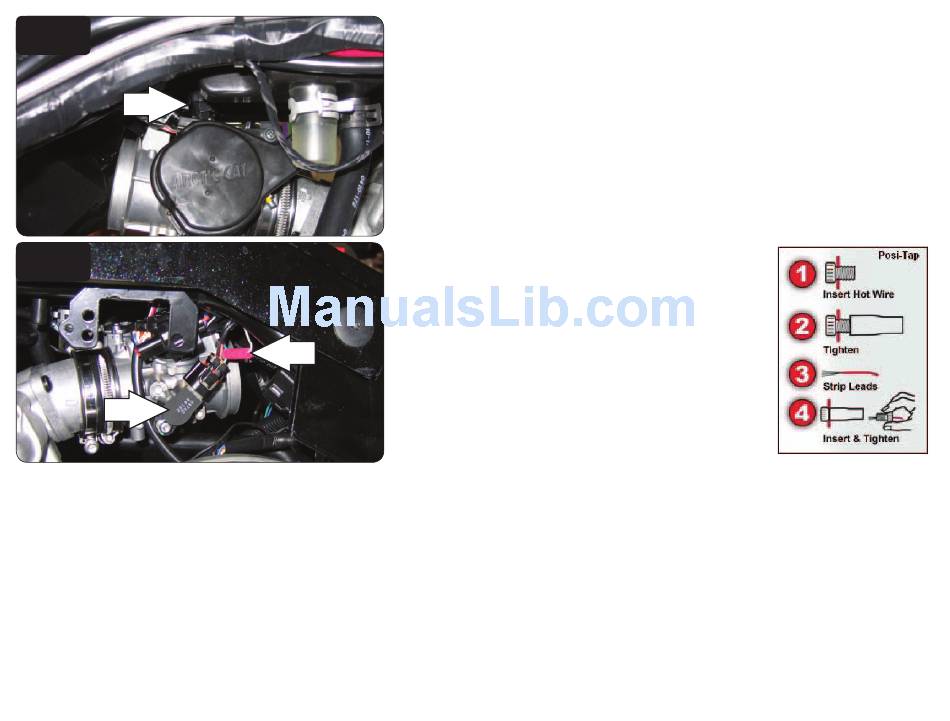

9 Disconnect the stock wiring harness from the fuel injector (Fig. D).
10 Plug the PCV wiring harness in-line of the fuel injector and the stock wiring
harness.
11 Locate the Throttle Position Sensor (TPS) on the
left hand side of the throttle body.
12 Using the supplied posi-tap, attach the GREY wire
from the PCV to the stock GREEN/BLACK wire
from the TPS.
13 Replace the storage bin, cover, tool kit, side panel,
and seat.
2013 Arctic Cat 700cc H1 ATV - PCV - 4
