Operator Manual
All personnel shall carefully read, understand and follow all safety rules,
operating instructions and the Scaffold Industry Association's MANUAL OF
RESPONSIBILITIES before performing maintenance on or operating any

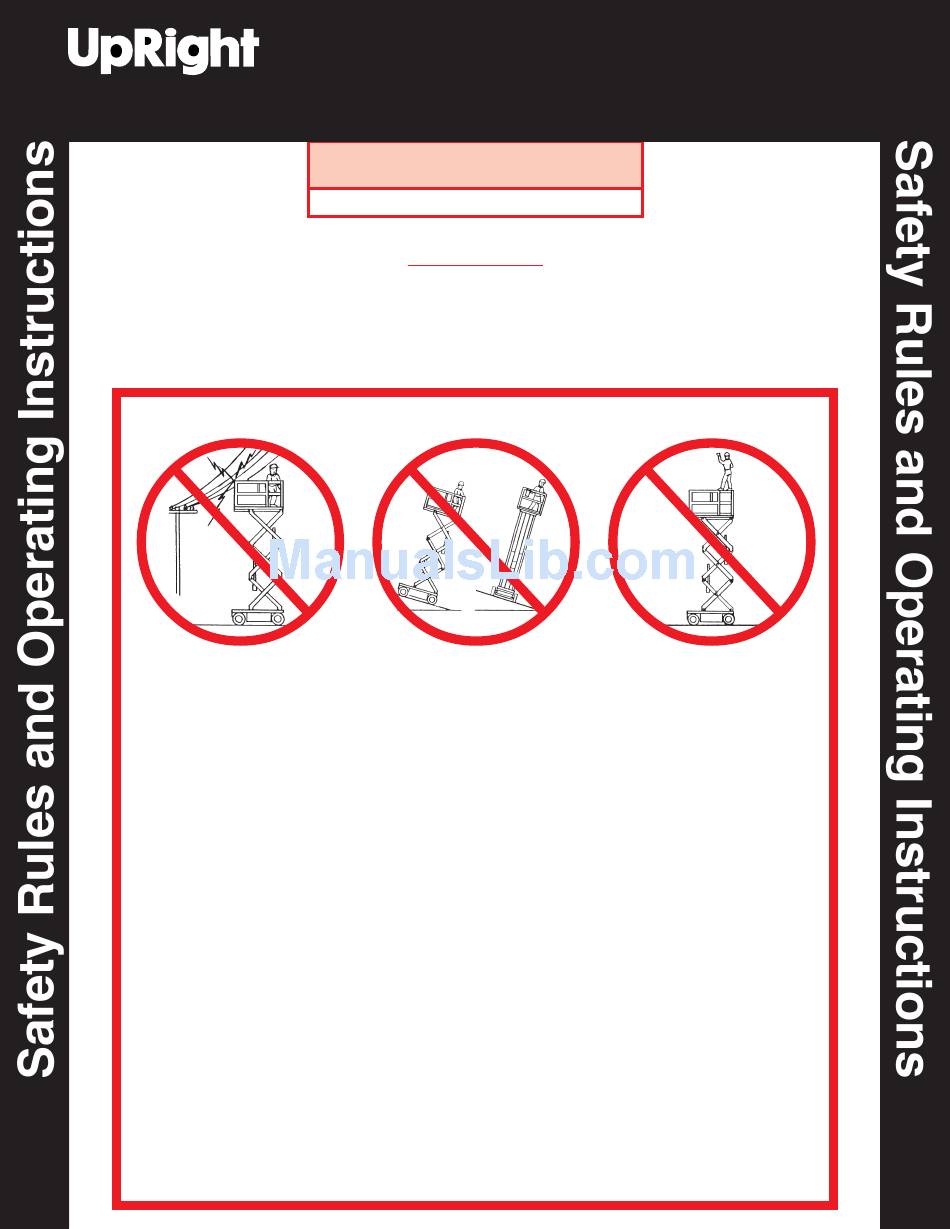

NEVER operate the machine
within ten feet of power lines.
THIS MACHINE IS NOT INSU-
LATED.
NEVER operate the machine without first surveying the work area for surface hazards such as
holes, drop-offs, bumps and debris.
NEVER operate the machine if all guardrails are not properly in place and secured with all
fasteners properly torqued.
SECURE chain across entrance after mounting platform.
NEVER use ladders or scaffolding on the platform.
NEVER attach overhanging loads or increase platform size.
LOOK up, down and around for overhead obstructions and electrical conductors.
DISTRIBUTE all loads evenly on the platform. See the back cover for maximum platform loads.
NEVER use damaged equipment. (Contact UpRight for instructions. See toll free number on
back cover.)
NEVER change operating or safety systems.
INSPECT the machine thoroughly for cracked welds, loose hardware, hydraulic leaks, damaged
control cable, loose wire connections and wheel bolts.
NEVER climb down elevating assembly with the platform elevated.
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
NEVER recharge batteries near sparks or open flame; batteries that are being charged emit
highly explosive hydrogen gas.
AFTER USE secure the work platform against unauthorized use by turning key switch off and
removing key.
NEVER replace any component or part with anything other than original UpRight replacement
parts without the manufacturer's written consent.
MX15/19
MX15/19
SERIAL NO. 1600-Current
WARNING

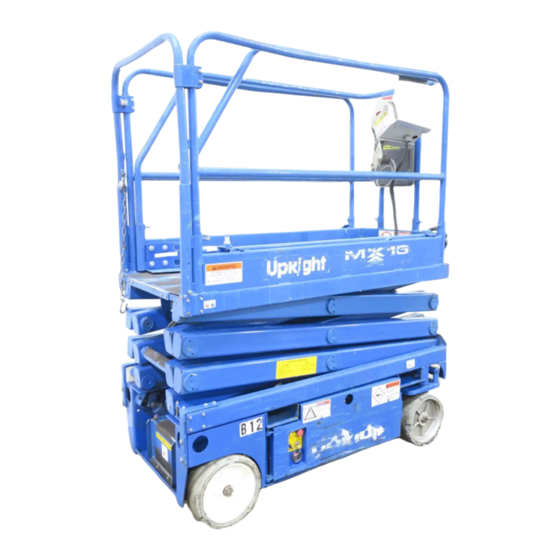

UpRight aerial work platform.
NEVER elevate the platform or
drive the machine while el-
evated unless the machine is
on firm level surface.
1
NEVER sit, stand or climb on
guardrail or midrail.
