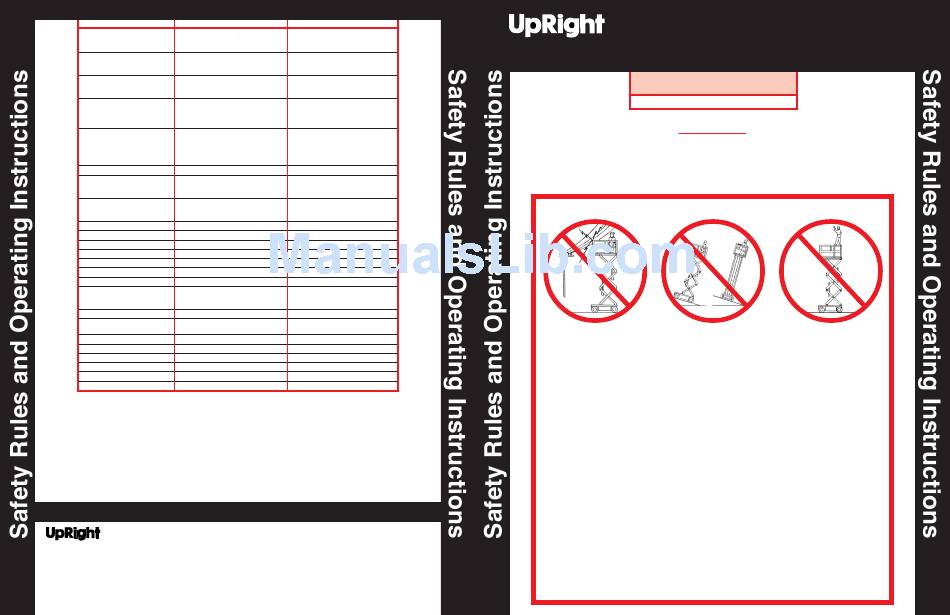

Upright MX15 Operator's Manual

Specifications*
ITEM MX15
Platform Size (Inside min.)
Standard w/Deck 22.5 in. x 98.5 in. (.57 m x 2.5 m)
Optional w/o Deck 26 in. x 62 in. (.66 m x 1.57 m)
Maximum Platform Capacity (Distributed)
Standard w/Deck 550 lbs. (250 kg)
Optional w/o Deck 660 lbs. (300 kg)
Maximum Number of Occupants
Standard w/Deck Two people, only one person on Deck
Optional w/o Deck Two people
Height
Working Height 20 ft. 9 in. (6.32 m)
Maximum Platform Height 14 ft. 9 in. (4.5 m)
Minimum Platform Height 36.2 in. (920 mm)
Dimensions
Weight 1,962 lbs. (890 kg)
Overall Width 30 in. (760 mm)
Overall Height (Lowered) 76 in. (1.93 m)
Overall Length (Deck in) 63 in. (1.60 m)
Driveable Height 14 ft. 9 in. (4.5 m)
Surface Speed
Platform Lowered 2.75 mph (4.43 km/h)
Platform Raised .75 mph (1.2 km/h)
Energy Source 24V battery pack (4-220 ampere hour, 6 Volt
batteries, min. wt. 62 lbs (28.12 kg) each), 4 HP
DC electric motor
System Voltage 24 VDC
Battery Charger 20 AMP, 120 VAC 60 Hz, Automatic
Battery Duty Cycle 25% for 8 Hours
Hydraulic Tank Capacity 3.4 gal (12.9 L)
Maximum Hydraulic System Pressure 2500 psi (172 Bar)
Lift System One Single Stage Lift Cylinder
Drive Control Proportional
Control System Proportional Joystick Controller with Interlock
Lever, Toggle Selector Switch, and Red
Mushroom Emergency Stop Switch
Horizontal Drive Dual Front Wheel
Tires 12 in. (30.5 cm) diameter solid rubber,
Non-marking
Parking Brakes Dual, Spring Applied, Hydraulic Release
Turning Radius 1 in. (25 mm) Inside
Maximum Gradeability 25% (14°)
Wheel Base 48.5 in. (1.23 m)
Guardrails 39 in. (1.02 m) or 43.5 in. (1.10 m)
Toeboard 6 in. (152 mm)
* Specifications subject to change without notice.
Meets or exceeds all applicable requirements of OSHA and ANSI A92.6-1990
Refer to Service Manual for complete parts and service information.
FOR MORE INFORMATION
USA
TEL: (1) 800-926-5438 or (1) 559-662-3900
FAX: (1) 559-673-6184
Parts FAX: (1) 800-669-9884
801 South Pine Street
Madera, California 93637
http://www.upright.com
MX19
22.5 in. x 98.5 in. (.57 m x 2.5 m)
26 in. x 62 in. (.66 m x 1.57 m)
500 lbs. (225 kg)
550 lbs. (250 kg)
Two people, only one person on Deck
Two people
25 ft. (7.62 m)
19 ft. (5.8 m)
40.15 in. (1020 mm)
2,160 lbs. (980 kg)
30 in. (760 mm)
80 in. (2.03 m)
63 in. (1.60 m)
19 ft. (5.8 m)
2.75 mph (4.43 km/h)
.75 mph (1.2 km/h)
24V battery pack (4-220 ampere hour, 6 Volt
batteries, min. wt. 62 lbs (28.12 kg) each), 4 HP
DC electric motor
24 VDC
20 AMP, 120 VAC 60 Hz, Automatic
25% for 8 Hours
3.4 gal (12.9 L)
2700 psi (186 Bar)
One Single Stage Lift Cylinder
Proportional
Proportional Joystick Controller with Interlock
Lever, Toggle Selector Switch, and Red
Mushroom Emergency Stop Switch
Dual Front Wheel
12 in. (30.5 cm) diameter solid rubber,
Non-marking
Dual, Spring Applied, Hydraulic Release
1 in. (25 mm) Inside
25% (14°)
48.5 in. (1.23 m)
39 in. (1.02 m) or 43.5 in. (1.10 m)
6 in. (152 mm)
Local Distributor:
8
060570-010
07-02
Operator Manual
MX15/19 w/PPE MX15/19 w/PPE
SERIAL NO. 1600-Current
WARNING
All personnel shall carefully read, understand and follow all safety rules,
operating instructions and the Scaffold Industry Association's MANUAL OF
RESPONSIBILITIES before performing maintenance on or operating any
UpRight aerial work platform.
NEVER operate the machine NEVER elevate the platform or
within ten feet of power lines. drive the machine while el-
THIS MACHINE IS NOT INSU- evated unless the machine is
LATED. on firm level surface.
NEVER operate the machine without first surveying the work area for surface hazards such as
holes, drop-offs, bumps and debris.
NEVER operate the machine if all guardrails are not properly in place and secured with all
fasteners properly torqued.
SECURE gate across entrance after mounting platform.
NEVER use ladders or scaffolding on the platform.
NEVER attach overhanging loads or increase platform size.
LOOK up, down and around for overhead obstructions and electrical conductors.
DISTRIBUTE all loads evenly on the platform. See the back cover for maximum platform loads.
NEVER use damaged equipment. (Contact UpRight for instructions. See toll free number on
back cover.)
NEVER change operating or safety systems.
INSPECT the machine thoroughly for cracked welds, loose hardware, hydraulic leaks, damaged
control cable, loose wire connections and wheel bolts.
NEVER climb down elevating assembly with the platform elevated.
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
NEVER recharge batteries near sparks or open flame; batteries that are being charged emit
highly explosive hydrogen gas.
AFTER USE secure the work platform against unauthorized use by turning key switch off and
removing key.
NEVER replace any component or part with anything other than original UpRight replacement
parts without the manufacturers written consent. 1
NEVER sit, stand or climb on
guardrail or midrail.
