Dermalux Tri-Wave User Manual page 14

First Time Setup
Follow the step by step guide to assemble your Dermalux
system.

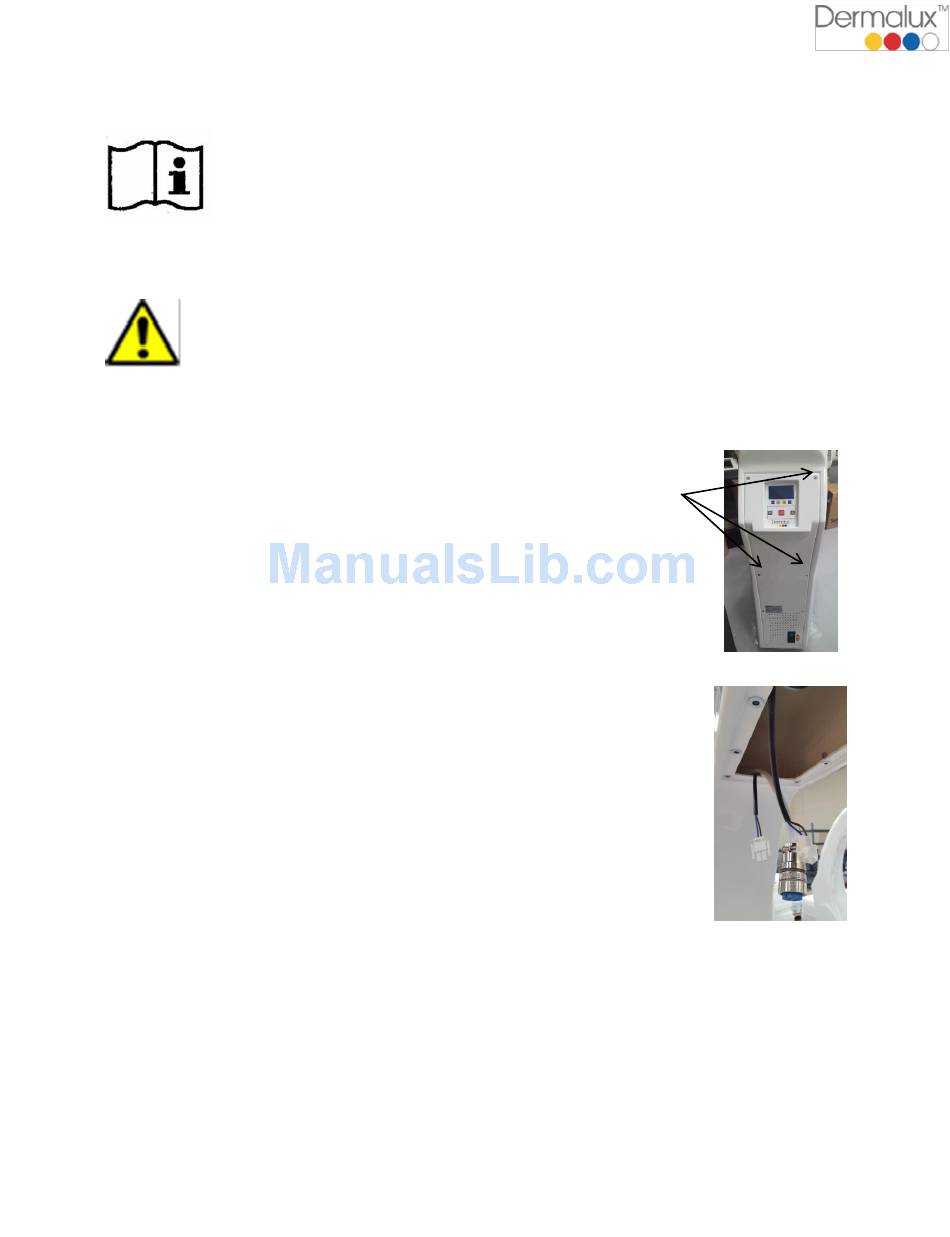

STEP 1. Connecting the Neck section to the Base unit.
DO NOT Plug the Dermalux
until Steps 1 - 2 (below) are completed. Plugging the Dermalux
system into a wall socket before Steps 1 - 2 (below) are completed may
expose you to dangerous voltages or other risks.
1. Stand the Base unit upright and lock the wheels by pressing down on the locking
flange.
2. Remove rear panel from the Base Unit by unscrewing the 10
3mm Hex screws that secure the panel.
3. Remove the base panel from the neck section by unscrewing the
3mm Hex screws that secure the panel.
4. Align the neck section on top of the base unit. Using the 17mm
spanner, secure the neck section to the base unit from the inside
with the 4 x 17mm nuts provided.
5. Take the white cable from the base unit that has a 4 pin end
connector and feed it up the neck section and out of the hole in
under panel of the top of the neck section.
6. Take the black cable from the neck section that has a 2 pin end
connector and connect this to the black power supply unit in the
Base Unit.
7. Replace the base panel of the neck section and secure with the
3mm Hex screws provided.
8. Replace the rear panel of the Base Unit and secure with the
3mm Hex screws provided (10).
