Dermalux® Tri-Wave User Guide

Dermalux Triwave User Guide 2015

Table of Contents

Need help?

Do you have a question about the Tri-Wave and is the answer not in the manual?

Questions and answers

Summary of Contents for Dermalux Tri-Wave

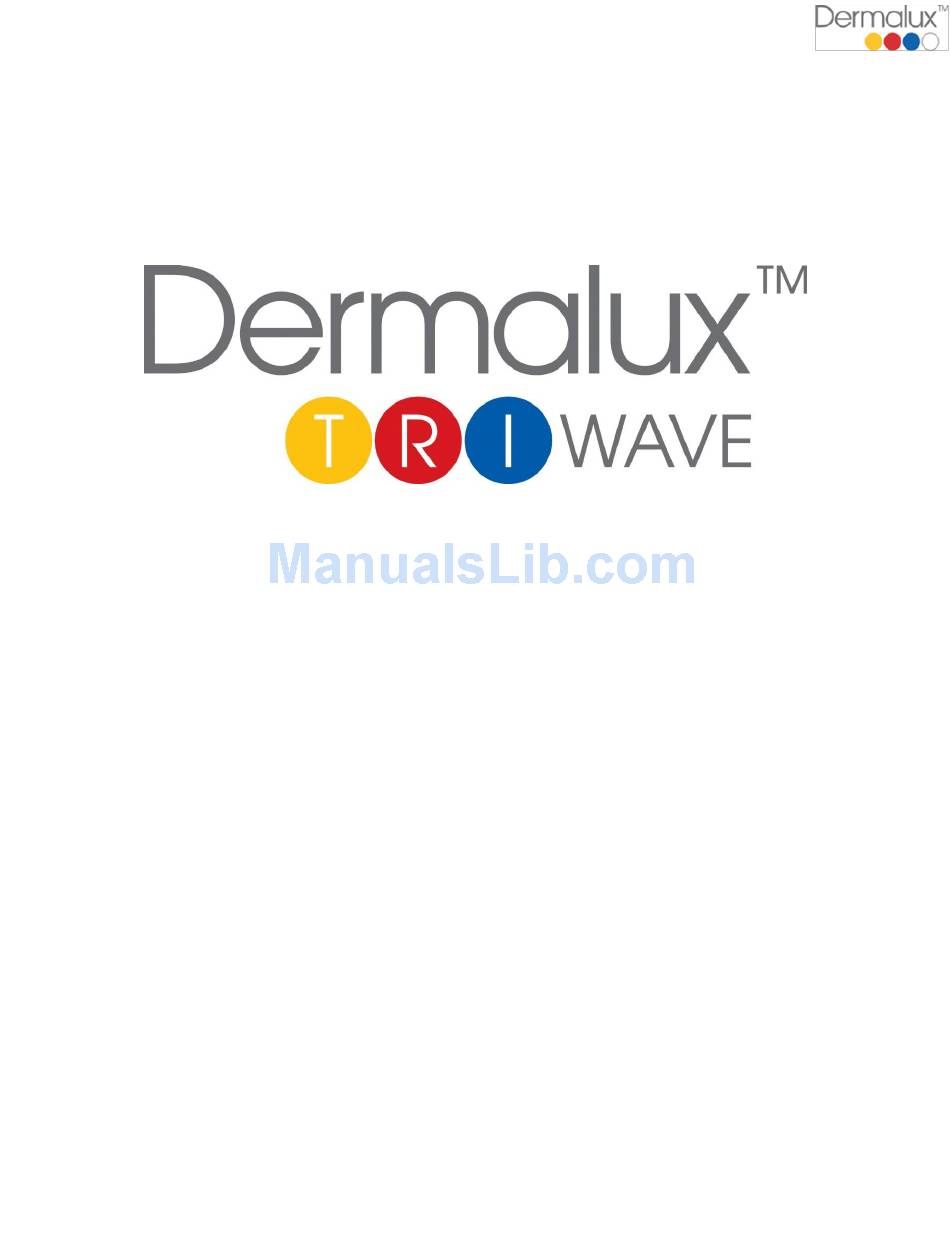

Page 1 Dermalux® Tri-Wave User Guide Dermalux Triwave User Guide 2015...
Page 2 You must follow all the instructions in the User Manual. Please feel free to contact us on our Customer Services number (see below) if you have any ® comments about Dermalux Tri-Wave LED systems or this User Guide. Dermalux ® is a registered trademark of;...
Page 3: Table Of Contents
Precautions First time setup: Receiving Assembly guide Operating Information: Controls Operating Information: Carrying out a Treatment Switching the system ON/OFF Stopping a treatment Dermalux® Tri-Wave Operating System Manual mode Preprogrammed mode Cleaning Instructions Care and Maintenance Disposal Technical specification General safety...
Page 4: Intended Use
® the face, musculoskeletal pain and general dermatological conditions. The Dermalux Tri-Wave LED system is intended to be used by physicians and suitable qualified personnel. Device Description...

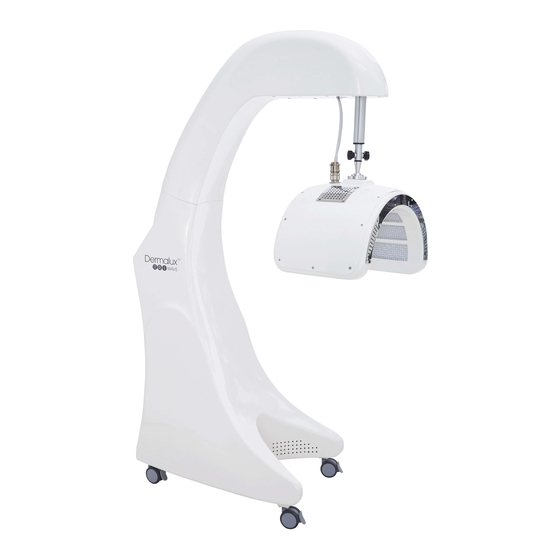

Page 5 Device Description ® The Dermalux Tri-Wave system is a floor standing device whose purpose is to produce an even, cool, narrow-band of light for the treatment of cosmetic and dermatological conditions. The system consists of a main body that contains the power supply (100-264Vac (47- 63Hz)) power switch and control panel and a treatment head that contains light emitting diodes (LEDs).
Page 6: Indications For Use
Tri-Wave LED system to treat any other condition that has not been listed in the ‘Indications for Use’ section. The Dermalux ® Tri-Wave LED system has not been tested for any other conditions and the risk is unknown.  DO NOT use Dermalux ®...
Page 7: Risks
Skin should return to normal with 1 to 2 hours.  Temporary headaches immediately following the light treatment. Headaches can be treated with an appropriate pain killer and rehydration. Dermalux Triwave User Guide 2015...
Page 8: Warnings And Precautions
® Tri-Wave LED system in any way that is not ® exactly as specified in these instructions for use. Use of the Dermalux Tri-Wave LED system other than exactly as specified in these instructions for use has not been tested and the risk is unknown.
Page 9: Common Types Of Medications That May Cause Photosensitivity
Exposure to light at far UV can cause the skin to grey. At discretion of practitioner. Treatment can be administered as long as the Anti Arrythmic drugs Codarone, Aratac, chlorpromazine medication has not been taken in the last 8 days. Dermalux Triwave User Guide 2015...
Page 10: Other Substances Not Listed Above Can Also Cause Photosensitivity
Epidermal growth factor Cetuximab, panitumumab, Consult a physician before receptor inhibitors (treatment erlotinib, gefitinib, lapatinib, commencing a course of Dermalux ® for lung cancer) vandetanib If yes the treatment cannot be Anti-arthritic Ridaura, Gold 50...
Page 11: Other Warnings
Tri-Wave LED system near water or where water can be spilt onto the equipment.  NEVER use the Dermalux ® Tri-Wave LED system if you think any part of the equipment may have come into contact with water.  DO NOT attempt to modify the Dermalux ®...
Page 12: First Time Setup: Receiving
6. Client Goggles 7. 3mm Hex key and 17mm socket spanner ® 8. Dermalux TRI-WAVE User Manual If the any individual components are missing or damaged, please contact Aesthetic Technologies Ltd or your local representative. Dermalux Triwave User Guide 2015...
Page 13: Assembly Guide
Follow the step by step First time set up guide to assemble the ® Dermalux Tri-Wave LED system. ® You will require the following tools supplied with the Dermalux Tri-Wave LED system. 1. 3mm Hex key 2. 17mm socket spanner Dermalux Triwave User Guide 2015...
Page 14 Tri-Wave LED system into a wall socket ® until Steps 1 - 2 (below) are completed. Plugging the Dermalux system into a wall socket before Steps 1 - 2 (below) are completed may expose you to dangerous voltages or other risks.
Page 15 ® STEP 3. Connecting the Dermalux Tri-Wave LED system to the mains 13. Plug the black Power Cable into the 3 pin input socket in the rear of the Base unit 14. Plug the Power Cable into a suitable wall socket.
Page 16: Operating Information: Controls
LED treatment head up and down by moving the Lift arm up or down. Press the button up to raise the LED treatment head or down to lower the LED treatment head. 6. START/STOP activates or stops a treatment. Dermalux Triwave User Guide 2015...
Page 17: Operating Information: Carrying Out A Treatment
Tri-Wave treatments consists of 6 to 10, 20 minute treatment ® sessions. The recommended frequency based on 6 to 10 sessions is 2 Dermalux treatments a week for 3 to 5 weeks. A 24 hour time period between treatments is generally recommended Always ensure the client is wearing the safety goggles supplied before ®...
Page 18: Stopping A Treatment
® Dermalux Tri-Wave Operating System ® Dermalux Tri-Wave software allows the user to select either i. Treatment parameters such as wavelength and treatment time (Manual mode). ii. Preset treatment programs (Pre-programmed Mode). i. Manual Mode ® Activating the Dermalux Tri-Wave System is a 3 step process.
Page 19 Over extension of the lift arm may cause temporary disconnection of the treatment head ® STEP 3. ACTIVATING the Dermalux Tri-Wave System 12. Press the START/STOP button, the selected LEDs will illuminate 13. The timer will count down in 1 minute intervals showing the time remaining for each selected wavelength.
Page 20: Ii. Preprogrammed Mode
Preprogrammed Mode ® The Dermalux Tri-Wave system has 11 preprogrammed treatment settings. Treatment Indication Blue Red time Notes (minutes) Skin Rejuvenation Mild/Moderate Acne Severe Acne 10minutes of Blue and NIR light, followed by 10 minutes of Blue, Red and NIR light...
Page 21 Do NOT Position the treatment head less than the recommended distance from the treatment area. Over extension of the lift arm may cause temporary disconnection of the treatment head ® STEP 3. ACTIVATING the Dermalux Tri-Wave System 7. Press the START/STOP button, the selected LEDs will illuminate 8.
Page 22: Cleaning Instructions
 The Dermalux ® Tri-Wave LED system contains no serviceable parts Disposal  Do NOT dispose of any part of the Dermalux ® Tri-Wave LED system at a domestic waste facility.  For protection of the environment, please package and return this unit to Aesthetic Technologies Ltd or their representative at the end of its working life.
Page 23: Technical Specification
Electrical Output: 24V General Safety ® The Dermalux Tri-Wave system is an electrical device, which under certain circumstances could present an electrical shock hazard to the user. Please read the accompanying user manual thoroughly and follow directions stated in the manual to assure maximum safety during operation.
Page 24: Troubleshooting
NO light connected to the top of the LED output from the LED treatment head. treatment head when the unit Plug the power cable into the wall outlet is activated. socket. Switch the unit ON Dermalux Triwave User Guide 2015...
Page 25 Aesthetic Technologies Ltd or your service provider to arrange servicing of your ® Dermalux LED system.  Do NOT attempt to investigate any further.  Do NOT remove the back panel cover.  ® The Dermalux LED System has NO parts you can repair yourself Dermalux Triwave User Guide 2015...
Page 26: Warranties
Accident, misuse, abuse or alteration • Servicing by unauthorised persons • Connection to incorrect power sources • Use with unauthorised accessories The warranty is VOID if the serial number has been modified, defaced or removed from the product. Dermalux Triwave User Guide 2015...
Page 27 This warranty is given in lieu of all other warranties, written or oral, whether expressed by affirmation, promise, description, drawing, model or sample. Any and all warranties other than this one, whether expressed or implied, including implied warranties of merchantability and fitness for a particular purpose are hereby disclaimed. Dermalux Triwave User Guide 2015...
