Mckenzie 3- drawer desk

Advertisement

Model #
2400GACd
2400CAFd

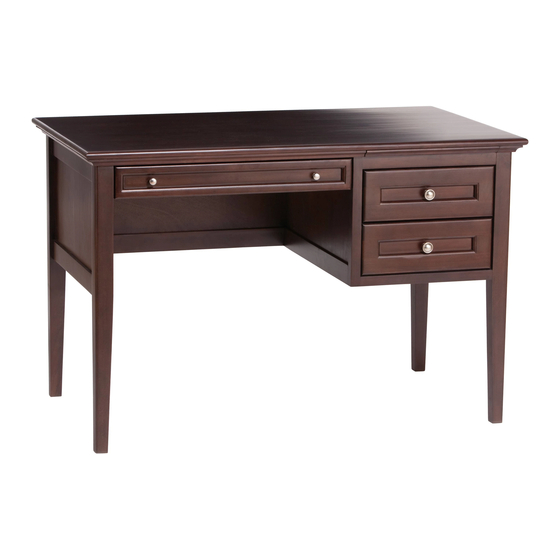

McKenzie
3-Drawer Desk
GAC = Glazed Antique Cherry finish
CAF = Caffè finish
Assembly
Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Do not climb, sit or stand on this piece of furniture.
• Use a protective pad when you use the top of this piece as a writing
surface.
• Do not overload the drawers.
• Unload items before you move this unit.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
05/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2400GACd and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whittier Wood 2400GACd

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2 2400GACd 2400CAFd McKenzie 3-Drawer Desk Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity Case Assembly...
  • Page 3 2400GACd 2400CAFd McKenzie 3-Drawer Desk Parts List Part Description Quantity #12 x 2-1/2" Pan Head Screw (inserted) #8 x 1-1/4" Black Screw (inserted) #8 x 2" Black Screw (inserted) Wood Dowel (inserted) 3/8" x 1" Insert Nut (inserted) 5/16" Flat Washer 3/8"...
  • Page 4 2400GACd 2400CAFd McKenzie 3-Drawer Desk Assembly Instructions Tool Required: Phillips Screwdriver, 9/16" or Adjustable Wrench, Mallet or Padded Hammer Remove the drawers from the Case Assembly (Ac). To do that, pull up on the left Drawer Release Lever while pushing down on the right Drawer Release Lever and pull out the drawer.
  • Page 5 2400GACd 2400CAFd McKenzie 3-Drawer Desk Assembly Instructions Attach the Left Side Assembly (C) to the drawer side of the case assembly with four 3/8"x 2-1/2" Hex Bolts (ZF) and four 5/16" Flat Washers (ZE). Fasten securely. Make sure the dowel is correctly seated in place by tapping the Left Side Assembly with a rubber mallet.
  • Page 6 2400GACd 2400CAFd McKenzie 3-Drawer Desk Assembly Instructions Turn the table upright and insert the Drawers. Fig. 5 This desk features a Pull-out (Ic) that is above the two drawers on the right side. To access this feature, push firmly on the end of the pull-out. This releases the Push Lock. Grab on to the underside hand groove and gently pull.
  • Page 7 2400GACd 2400CAFd McKenzie 3-Drawer Desk Assembly Instructions The center drawer (G) can be used as a keyboard tray or utility drawer. To use it as a keyboard tray, open the drawer and pull down on the front. This unlocks the roller catches. To lock it back into place, push up on the drawer front.
