Model #
2171AST

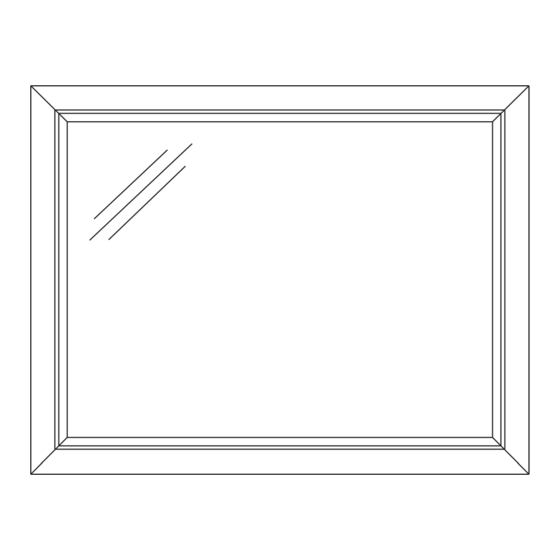

Ellison Rectangular Mirror
AST = Astoria Sky finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
For normal household use only. Not recommended for commercial use.
Handle the mirror with care. Glass is fragile.
Before you begin your project, completely read the Assembly
Instructions.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
06/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ellison 2171AST and is the answer not in the manual?

Questions and answers

Summary of Contents for Whittier Wood Ellison 2171AST

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2: Parts List

    2171AST Ellison Rectangular Mirror Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity Mirror Assembly Mirror Frame Mirror (attached) Mirror Retainer (attached)
  • Page 3 2171AST Ellison Rectangular Mirror Assembly Instructions Tools Required: Phillips Screwdriver, Tape Measure, Pencil You have the option of attaching your Mirror to the wall or to selected Ellison Dressers. To attach your Mirror to the wall, follow steps 1 – 4. To attach the Mirror horizontally to a compatible Ellison Dresser, follow steps 5 –...
  • Page 4 2171AST Ellison Rectangular Mirror Assembly Instructions Locate two studs in the wall behind the space where you want to hang your Mirror. Affix the Mirror Wall Bracket (L) into the studs with two #8 x 1-3/4" Pan Head Screws (H). If you cannot locate two studs, purchase the proper wall attachment hardware for your type of wall and secure the bracket.
  • Page 5 2171AST Ellison Rectangular Mirror Assembly Instructions To attach the Mirror to an Ellison Dresser, remove the Mirror Wall Bracket (L) that is attached to the Mirror Frame (B) as shown in Figure 5. Keep these Mirror Wall Brackets (L) and the four #6 x 3/4"...
  • Page 6 2171AST Ellison Rectangular Mirror Assembly Instructions Using the predrilled holes on the back of the Dresser as guides, attach the two Mirror Supports (E) with four M4 x 41 Machine Screws (J). For Dresser (#2137 & #2139), The upper screws will be inserted into the 3 hole from the top and the lower screws will be inserted into the 2 hole from the bottom of the Mirror Supports.
  • Page 7 2171AST Ellison Rectangular Mirror Assembly Instructions Vertical Mount Option Using the predrilled holes on the back of the Dresser as guides, attach the two Mirror Supports (E) with four M4 x 41 Machine Screws (J). For Dresser (#2137 & #2139), The upper screws will be inserted into the 3 hole from the top and the lower screws will be inserted into the 2 hole from the bottom of the Mirror Supports.
  • Page 8 2171AST Ellison Rectangular Mirror Assembly Instructions Peel off the backing on the Velvet Pads (K) and apply them to the bottom of the Mirror Assembly (A). See Figures 9 and 9a. Vertical Mirror Fig. 9 Horizontal Mirror Fig. 9a 10. Place the Mirror on top of the Dresser and attach it to the Mirror Supports (E) with four #7 x 1-1/2"...
  • Page 9 2171AST Ellison Rectangular Mirror Assembly Instructions 11. To attach the Mirror vertically to #2136 Dresser, use the predrilled holes in the back of the dresser as guides. See Figures 11 and 11a. Attach the two Mirror Supports (E) with four M4 x 41 Machine Screws (J).
