Model #
2319GACc;
2319CAFc
McKenzie King

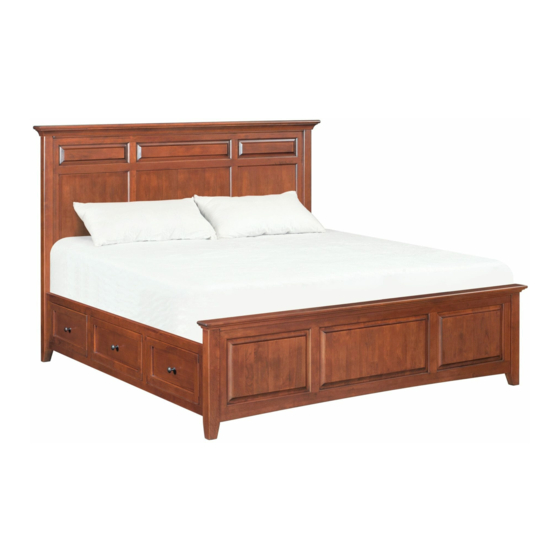

Mantel Storage Bed
GAC = Glazed Antique Cherry finish
CAF = Caffè finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Remove items before you move this unit.
• Do not overload the drawers.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
02/17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood 2319GACc
Summary of Contents for Whittier Wood 2319GACc
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. 1318GACe; 1318CAFe Pedestal Kit (x2)
- Page 3 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Parts List 2320GACa; 2320CAFa King Mantel Headboard/Footboard Kit (x1) Part Description Quantity Headboard Assembly Footboard Assembly Center Deckboard Top Assembly #8 x 1-1/4" Pan Head Screw (4 inserted) Cam Connector (inserted) Cam Housing #8 x 1"...
- Page 4 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Parts List 2321Wc King Mantel Assembly Kit (x1) Part Description Quantity Trestle With T-Nuts #8 x 1-1/4" Black Screw (9 inserted) 1/4" x 1-3/4" Hex Bolt 1/4" Flat Washer Assembled Foot Adjustable Glide (installed) #6 x 1/2"...
- Page 5 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver, 7/16" open end or box end wrench and Tape measure Remove the Center Deckboard (Rb) from the back of the Headboard (Aa) and place to the side.
- Page 6 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. Attach the Top Assembly (YH) to the Headboard Assembly (Aa) by inserting two #8x1-1/4" Pan Head Screws (YI) into the predrilled holes in the block that is attached to the Headboard Assembly (Aa).
- Page 7 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. To attach the Footboard (B) to the Pedestal Assembly (Id), align the Brackets and slide the Pedestal Assembly down on to the Footboard (B). See Figures 5 and 5a.
- Page 8 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the Headboard (Aa). See Figure 7. Fig. 7 2319GACc_2319CAFc — Page 8 — 02/17...
- Page 9 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. Open the drawers. Face the Footboard and stand in between the first and second braces. Place a Trestle with T-Nuts (Da) on the outside surfaces of the first upper left and right braces so that the T-Nuts (ZU) sit near the top.
- Page 10 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. Face the Headboard and stand in between the third and fourth braces. Place a Trestle with T-Nuts (Da) on the outside surfaces of the third upper left and right braces so the T-nuts sit near the top.
- Page 11 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. 10. NOTE: There are blocks mounted on the back side of the Footboard to support the end of the pedestal eliminating the need for an Assembled Foot in this position where it would be easily visible.
- Page 12 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. 11. NOTE: There are blocks mounted on the back side of the Footboard to support the end of the pedestal eliminating the need for an Assembled Foot in this position where it would be easily visible.
- Page 13 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. 12. Facing the Footboard, attach the Pedestal Assembly to the Footboard with a 90º Bracket (YG) and four #6 x 1/2" Philtruss Screws (YD). Repeat for the other side. See Figures 12 and 12a.
- Page 14 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. 13. To make sure the bed is square, measure the distance between opposing corners. If one of the measurements is larger, tap on a footboard leg until the measurement is equal. See Figure 13.
- Page 15 2319GACc; 2319CAFc McKenzie King Mantel Storage Bed Assembly Instructions This assembly requires two people. 15. Place the Center Deckboard (Rb) as shown in Figure 15 and secure with twelve #8 x 1-1/4" Black Screws (E). If you need to readjust the center feet, remove the Center Deckboard, adjust the glides and reattach the deckboard.
- Page 16 CAM - LOCK SYSTEM INSTRUCTIONS Face of Optimum NOTE: To avoid scratching the surface of the Cam Housing tightness wood, assemble the unit and place face-down on a clean, protected surface. Cam Connector Shoulder must be Correct way to tighten flush with the surface your Cam-Lock system.
