Model #
2403AFGAC;
2403AFCAF

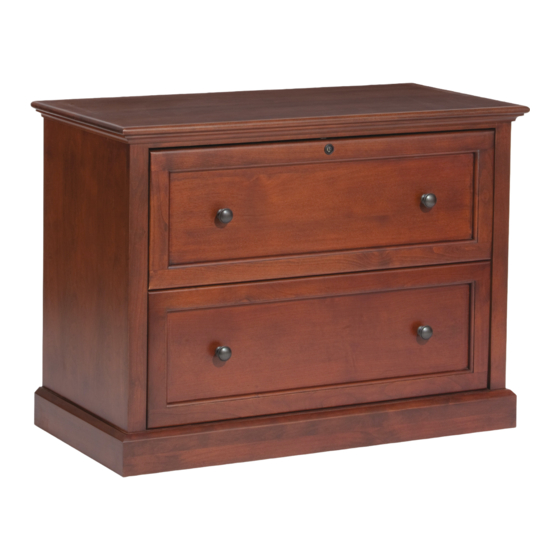

McKenzie Lateral
File Cabinet
AFGAC = Glazed Antique Cherry finish
AFCAF = Caffè finish
Assembly Instructions
Congratulations!
This fine piece of furniture will make a gorgeous
addition to your home. For the best results, read the
Assembly Instructions before you begin your project.
CALL US FIRST!
Service Policy: We will replace any part that is
defective, missing or damaged during assembly.
For a replacement part, contact Whittier Wood
Products customer service department by phone,
fax, mail or email.
Hours: Our friendly customer service staff can be
reached Monday-Friday 7:00 a.m. to 5:00 p.m.
(Pacific Time). You may leave a message
24 hours a day, seven days a week.
800-653-3336
www.whittierwood.com • P.O. Box 2827 • Eugene, Oregon 97402, U.S.A.
P.O. Box 2827
Eugene, OR 97402 USA
Do not return this item to the store.
To Order: Provide the finish and furniture model number
(upper portion of this page), the part letter, production
code, quantity needed, reason for replacement and your
full name, address and telephone number.
Parts ship from our Eugene, Oregon factory within one
or two business days from the time we receive your
request. Please allow five to ten business days for delivery.
• Outside the U.S. or Canada: 541-687-0213 • Fax: 541-687-2060
Production Code:
VN
Serious or fatal crushing injuries can occur
from furniture tip-over. To help prevent tip-over:
Place heaviest items in the bottom drawers.
Unless specifically designed to accommodate,
do not set TVs or other heavy objects on top of
this product.
Never allow children to climb or hang on drawers,
doors or shelves.
Never open more than one drawer at a time.
Use of tip-over restraints may only reduce
but not eliminate the risk of tip-over.
IMPORTANT NOTES:
For normal household use only. Not recommended
to use commercially.
Use a protective pad when using your furniture
as a writing surface.
Do not climb, sit or stand on this piece of furniture.
Do not overload the drawers.
Unload items before you move this unit.
Before you load or move this unit, tighten all screws
and supports.
Before you begin your project, completely read the
Assembly Instructions.
Store this item: 1- in its box; 2- in a dry place; 3- in
temperatures that range from 40°F to 90°F (not on a
cold and possibly damp cement floor).
Periodically inspect your furniture for any loose
glue joints, screws or any other problem that might
affect the stability of your furniture. Tighten or
repair as needed.
.
01/11
Advertisement
Table of Contents
Related Manuals for Whittier Wood 2403AFGAC
Summary of Contents for Whittier Wood 2403AFGAC
- Page 1 To Order: Provide the finish and furniture model number defective, missing or damaged during assembly. (upper portion of this page), the part letter, production For a replacement part, contact Whittier Wood code, quantity needed, reason for replacement and your Products customer service department by phone, full name, address and telephone number.
- Page 2 2403AFGAC; 2403AFCAF McKenzie Lateral File Cabinet — Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and model name. Part Description...
- Page 3 2403AFGAC; 2403AFCAF McKenzie Lateral File Cabinet Assembly Instructions Tool Required: Phillips Screwdriver Fig. 1a Fig. 1 Drawer Release Lever Remove the drawers from the Case (A). To do that, pull up on the left Drawer Release Lever while pushing down on the right Drawer Release Lever and pull out the drawer. See Figure 1a.
- Page 4 Choice #2 Wall Fig. 4 4. Using three #8 x 2-3/4" Black Screws (U), secure the file cabinet to the floor. Tighten the Nylon Restraint Strap (T2) so there is no slack. Fig. 5a Fig. 5c Pull tight Fig. 5d Fig.
- Page 5 Fig. 6 Fig. 6a Fig. 6b The file drawers arrive configured to accommodate letter/letter sized files. But each drawer has the flexibility to be configured as letter/letter, letter/legal or legal/legal. To set up a section to hold legal files, remove a drawer. Remove one #8 x 1-5/8" Black Screw (S) from the drawer back and one from the bottom.
