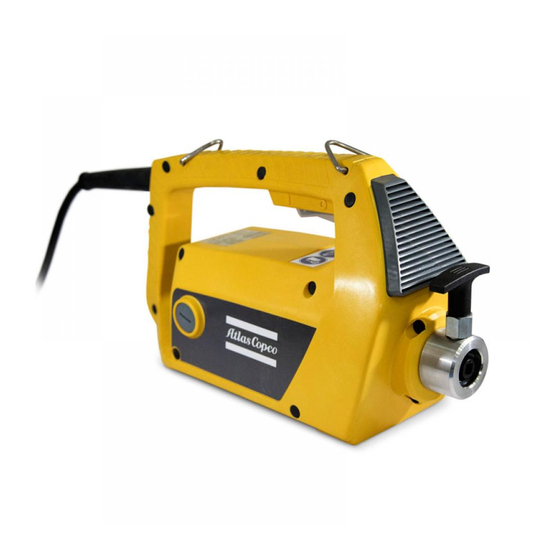

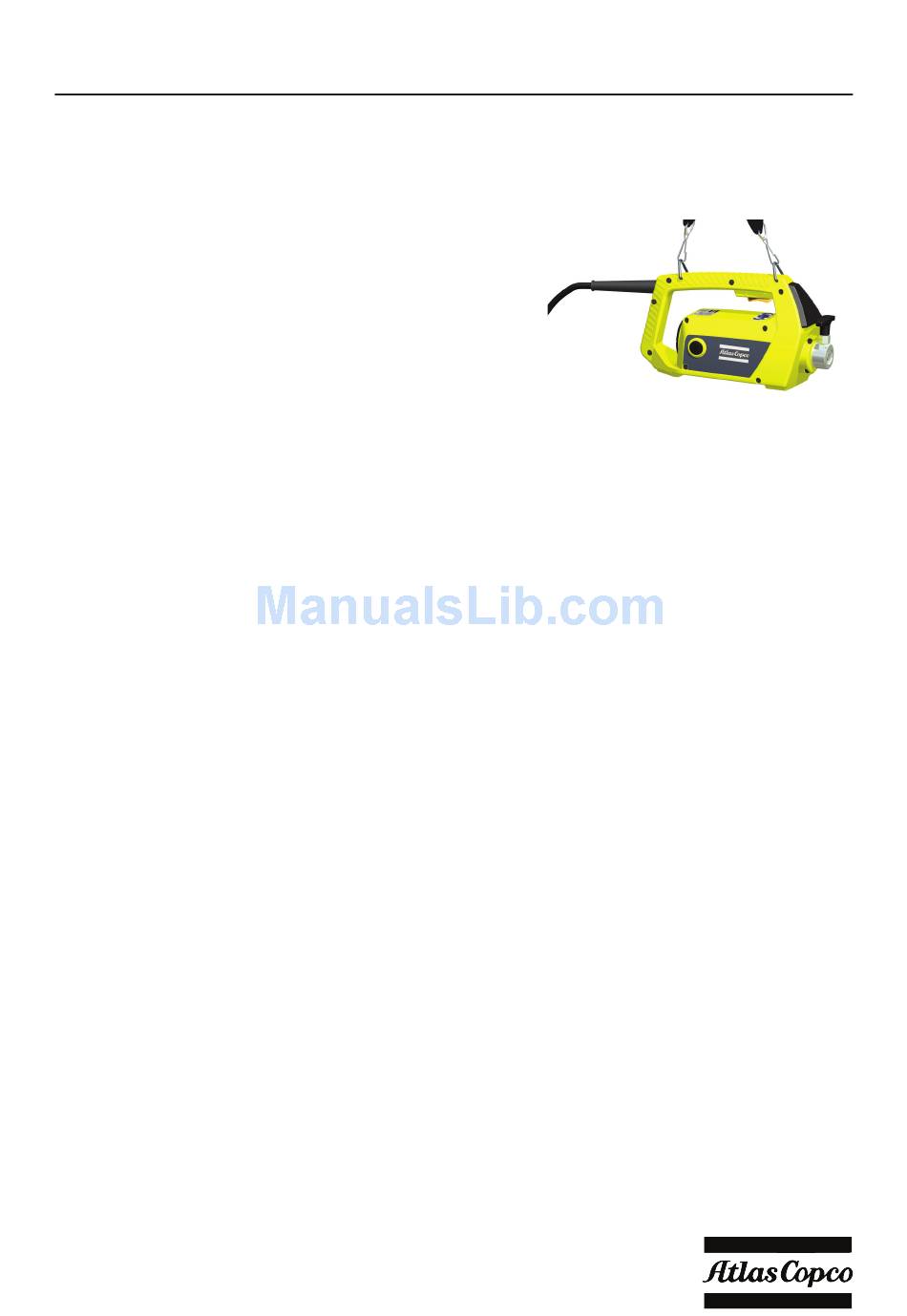

- Page 1 1600 Safety and operating instructions Poker vibrator © 2015 Construction tools PC AB | No. 9800 1713 01 | 2015-04-07 Original instructions...
-
Page 3: Table Of Contents
AME 1600 Contents Contents Introduction ........................5 About the Safety and Operating Instructions ..............5 Safety instructions ......................6 Safety signal words ..................... 6 Work area ........................6 Electrical safety ......................6 Personal safety ......................7 Operating, precautions ....................8 Maintenance, precautions .................. -
Page 5: Introduction
Safety and operating instructions Introduction Thank you for choosing a product from Atlas Copco. Since 1873, we have been committed to fi nding new and better ways of fulfi lling our customers’ needs. Through the years, we have developed innovative and ergonomic product designs that have helped customers improve and rationalize their daily work. -
Page 6: Safety Instructions
Safety and operating instructions AME 1600 Safety instructions ► Maintain adequate lighting in the working area. To reduce the risk of serious injury or death Only qualifi ed and trained persons may operate to yourself or others, read and understand the or maintain the machine. -
Page 7: Personal Safety
AME 1600 Safety and operating instructions ► Remove adjusting keys or switches before ► Always make sure that the electrical cable is starting the machine. kept away from water, oil and sharp edges ► Do not expose the power tool to rain or wet conditions. -
Page 8: Operating, Precautions
Safety and operating instructions AME 1600 ► Wear, maintain and correctly use respiratory ► Use the machine, accessories and tools in protection as instructed by your employer accordance with the safety instructions. and as required by occupational health and ►... -
Page 9: Maintenance, Precautions
► Always use original parts and accessories must have are your hands on the handle or approved by Atlas Copco. handles. Avoid any other contact, for example supporting any part of the body against the ►... -
Page 10: Overview
Safety and operating instructions AME 1600 Overview Labels To reduce the risk of serious injury or death to yourself or others, read the Safety instructions Data plate section found on the previous pages of this manual before operating the power tool. -
Page 11: Vibrating
AME 1600 Safety and operating instructions Connect the shaft on the drive unit 3. Insert the poker vibrator vertically at a distance of 8-10 times the tube diameter between 1. Lift the locking piston (A) on the drive unit (D). -
Page 12: Maintenance
Safety and operating instructions AME 1600 Maintenance NOTICE Do not grease the inner shafts too extensively. Greasing too much can cause overload of the electric drive unit and trip the circuit Regular maintenance is a basic requirement for the breaker. Run the unit for two minutes continuously continued safe and effi... -
Page 13: Wiring Diagram
AME 1600 Safety and operating instructions Wiring diagram 1. Remove the protective cap (C) to reach the carbon brushes (B). Use a large fl at bladed screwdriver to remove the cap. A. Main B. Switch C. Rotor D. Brush E. Stator... -
Page 14: Storage
Safety and operating instructions AME 1600 Storage 2. Loosen the square screw cap on the drive side by locking the eccentric. Use a screwdriver to lock the eccentric, place the screwdriver into ♦ Clean the machine properly before storage, the groove at the end with the end cap. -
Page 15: Troubleshooting
AME 1600 Safety and operating instructions Troubleshooting Problem Cause Solution The power tool does not start. The plug is not connected. Connect the electrical plug into a power socket. Start switch is in off position. Turn the switch on. The carbon brushes are worn out. -
Page 16: Technical Data
Safety and operating instructions AME 1600 Technical data Machine data AME1600 UK / US-CAN AME1600 EU Electrical drive unit Voltage, (V) Phases Frequency, (Hz) 50/60 50/60 Power, kW (hp) 1.6 (2.25) 1.6 (2.25) Amperage, (A) Protection IP44 IP44 Insulation Class* Speed, r.p.m. -
Page 17: Vibrating Poker
AME 1600 Safety and operating instructions Vibrating poker AT29 AT39 AT49 AT59 Tube diameter, mm (in.) 29 (1.125) 39 (1.5) 49 (2) 59 (2.375) Tube length, mm (in.) 332 (13) 315 (12.375) 311 (12.25) 306 (12) Tube weight, kg (lb) 1.30 (2.875) -
Page 18: Ec Declaration Of Conformity
Safety and operating instructions AME 1600 EC Declaration of Conformity EC Declaration of Conformity We, Construction Tools PC AB, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive), 2006/95/EC (Low voltage), 2004/108/EC (EMC) and the harmonised standards mentioned below. - Page 20 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers, and drawings. www.atlascopco.com...
