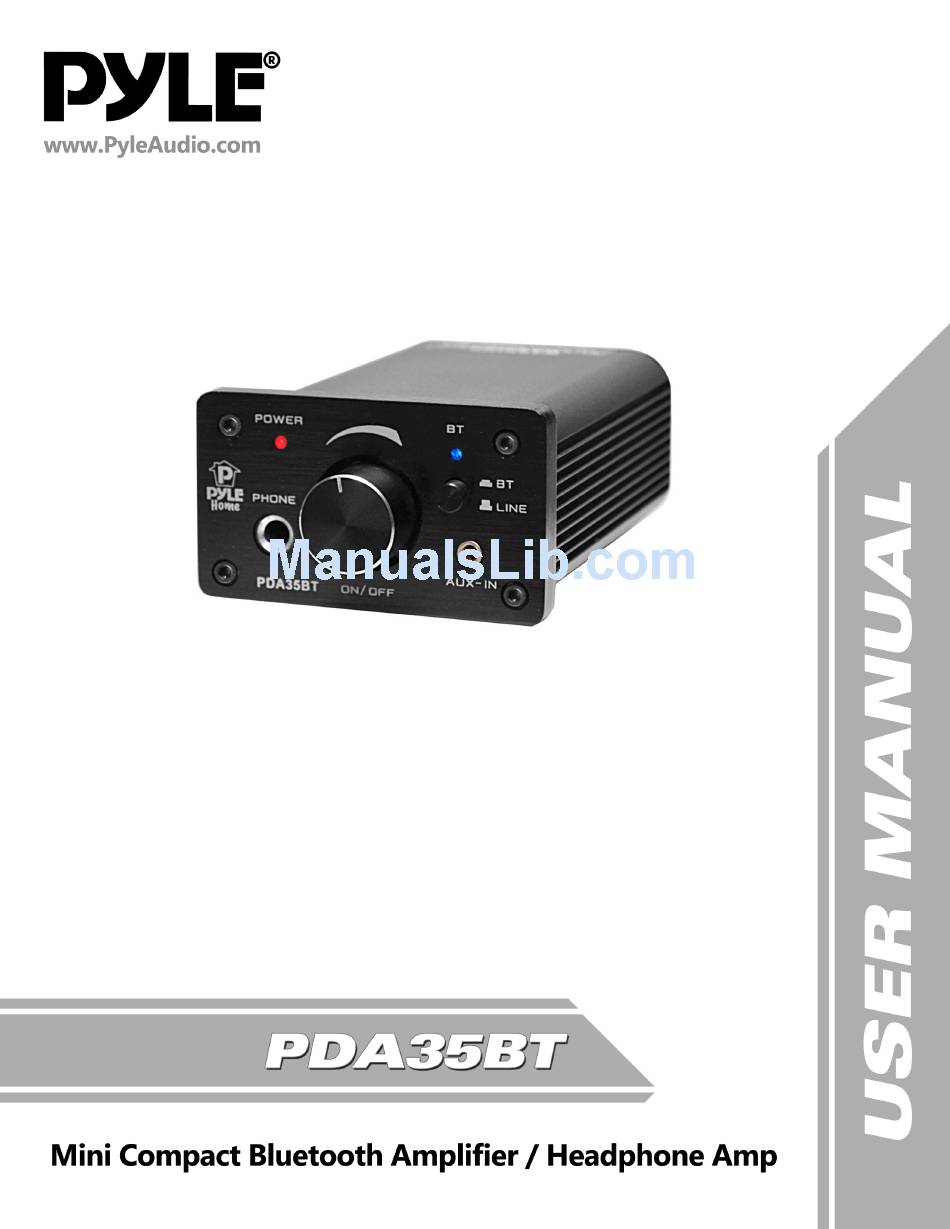

- Page 2 Thank you for purchasing the PYLE Audio PDA35BT Class T Digital Audio Power Amplifier. This amplifier features the Tripath TP2050 chipset that provides 50W continuous power per channel (100W total) into an 8 ohm load. Class T amplifiers uses Tripath’s proprietary Digital Power Processing Technology offer the audio fidelity of a Class AB amplifier while providing the power efficiency of a Class D. ...
- Page 3 2. Bluetooth LED Blue Bluetooth LED indicates the unit is receiving the BT signal. 3. BT/LINE Input Switch Mode button switches between the Bluetooth and Line audio inputs. Push in is for Bluetooth function, and push out is for line audio input. 4. 1/4'' Headphone Jack The PDA35BT is a high fidelity headphone amplifier that will drive any headphone easily and delivers colossal sound stage and effortless dynamic rang. The 1/ 4''stereo jack allows connection of larger home and studio‐ style headphones. An adapter is also provided so that smaller 3. 5mm personnel style headphones can be used. Note: When headphones are plugged into the headphone jack, the speaker output connections are disconnected. 5. Power/ Volume Control This control turns on the unit and adjusts the volume level of the amplifier. When the unit is turned on, the power LED will became fully illuminated. To turn the unit off, turn the control fully counterclockwise until it “clicks” to the off ...
- Page 4 10. Power Connection The PDA35BT operates on 24VDC and MUST be used with a power supply that can provide at least 5A. A world compatible ( 100V‐ 240V) switch mode power supply is included with the unit and is supplied with a U. S. A style cord. To operate in other countries an appropriate power cord will need to be purchased. The power connection on the unit is a 2. 5mm x 5. 5mm jack with center pin being positive. Note: if an inappropriate power supply is used and the unit is ...
- Page 5 Features: Model: PDA35BT Built‐in Bluetooth for Wireless Audio Streaming Works with All of Your Favorite Devices (iPhone, Android, Smartphone, iPad, Tablet, etc.) 1/4'' Headphone Jack (Doubles as Headphone Amp) 3.5mm (AUX) Input Connector Jack Ability to Connect Additional External Devices LED Indicator Lights Rotary Knob Volume Control Bluetooth Button Activation Speaker Input: Banana Plug Speaker Connectors Speaker Output: RCA (L/R) Connector Jacks Short Circuit, Thermal and Overload Protection Mini / Compact Amp Technical Specs: MAX Power Output: 100 Watt RMS Power Output: 50 Watt x 2 @ 8 Ohm T.H.D.: <0.01% @ 30 Watt, <5.0% @ 50 Watt Bluetooth Version: 4.0 Bluetooth Wireless Range: 30' Feet Bluetooth Network Name: 'BT‐RY' Bluetooth Password: 'BT‐RY' Class T Amp Design Min. Speaker Impedance: 6 Ohm S/N Ratio: 103dB, A‐Weighted Input Impedance: 2K Ohm +/‐5% Frequency Response: 20‐20kHz Channel Separation: 95dB Dynamic Range: >100dB Efficiency: 85% Power Requirement: 24V DC, 5A Worldwide Compatibility: 100‐240V, Switchable Dimensions (H x W x D): 1.9'' x 3.6'' x 4.9'' Weight: 1.06 lbs. Accessories Included: (2) Pair Screw‐Type Banana Plug Speaker Connectors ...
