Dynojet Power Commander V Installation Instructions Manual page 5

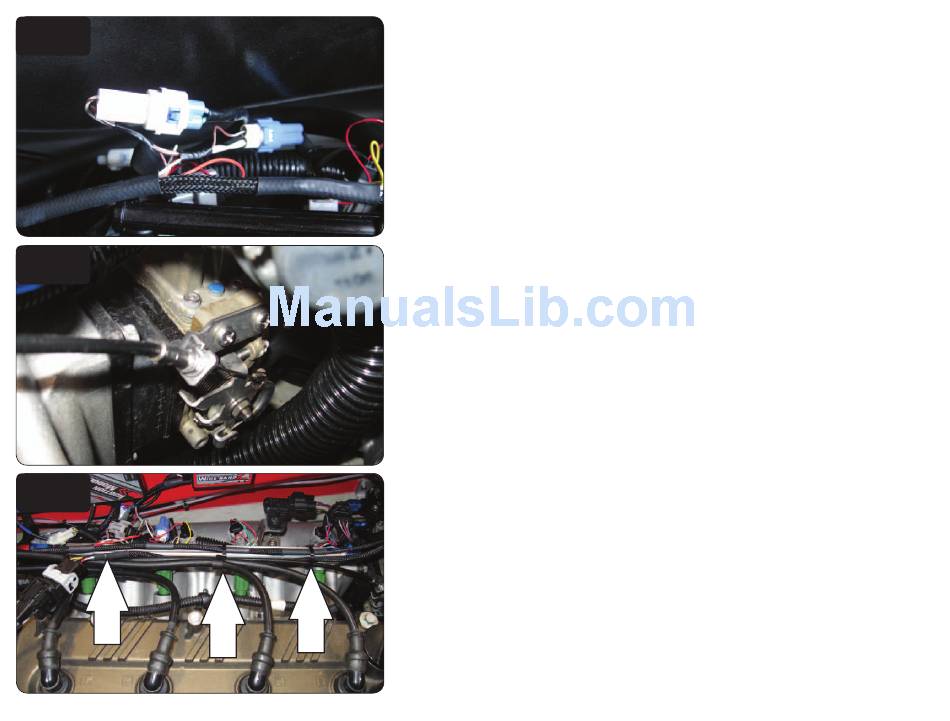

FIG.G
FIG.H
FIG.I
17-057 www.powercommander.com
8 Plug the 2-pin connectors from the PCV wiring harness in-line of the stock
Crank Position Sensor connectors (Fig. G).
9 Locate and unplug the stock wiring harness connector from the Throttle
Position Sensor (Fig. H).
The TPS does not have sufficient accessibility for a picture and is difficult to
access. The Throttle Body is located towards the rear of the engine. The TPS
is located on the Throttle Body at the opposite side as the throttle cable pulley
shown here (Fig. H).
10 Plug the PCV wiring harness in-line of the stock wiring harness and Throttle
Position Sensor.
11 Use the supplied zip ties to secure the PCV wiring harness to the locations
shown on the fuel rail such that it is clear as possible of any hot or moving
parts (Fig. I).
Kawasaki Ultra 250/260 Personal Watercraft - PCV - 5
