Dynojet Power Commander V Installation Instructions Manual page 4

FIG.D
FIG.E
Ground
FIG.F
17-057 www.powercommander.com

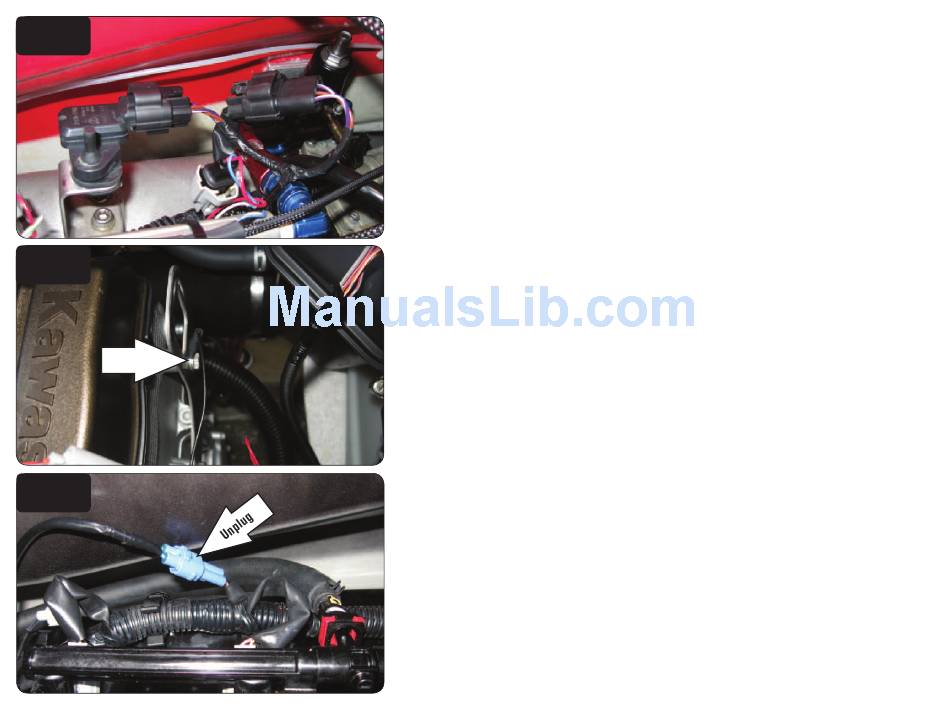

5 Plug the PCV wiring harness in-line of the MAP sensor and the stock wiring
harness (Fig. D).
The PCV MAP sensor connectors are the 3-pin connectors that have the solid
BROWN wires going to them.
6 Secure the ground wire of the PCV wiring harness to the bolt pictured in
Figure E.
This bolt is on the bracket at the front of the engine.
7 Locate and unplug the stock connectors for the Crank Position Sensor (Fig. F).
This connector is by the #2 fuel injector.
Kawasaki Ultra 250/260 Personal Watercraft - PCV - 4
