Dynojet Power Commander V Installation Instructions Manual page 3

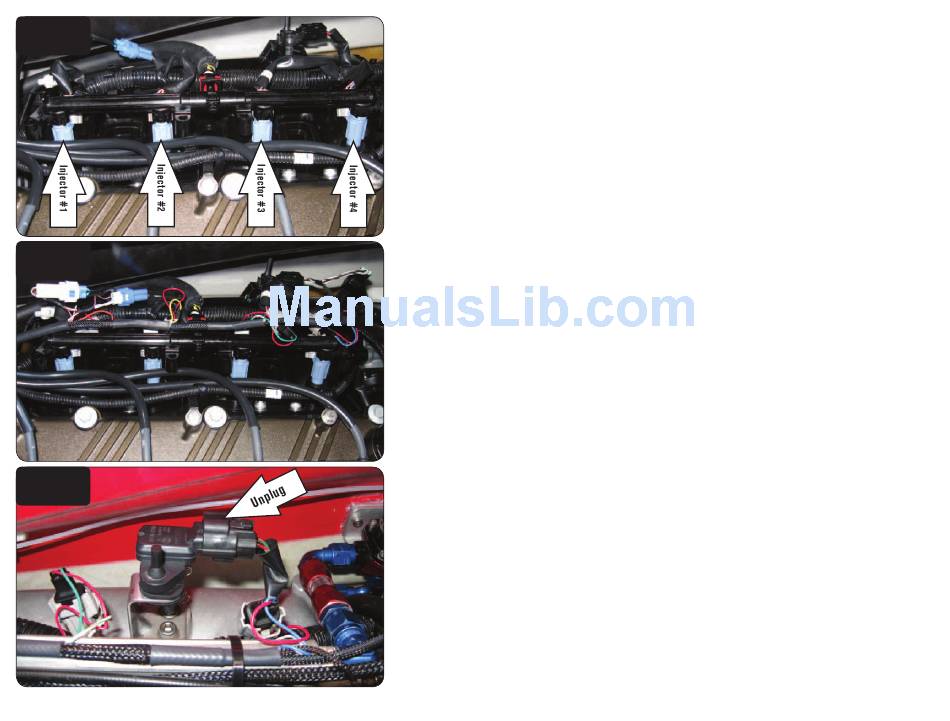

FIG.A
FIG.B
FIG.C
17-057 www.powercommander.com
1 Remove the seat to access the watercraft's engine compartment.
2 Locate and unplug the stock wiring harness from the engine's fuel injectors
(Fig. A).
The injectors are numbered from front to rear.
3 Plug the PCV wiring harness in-line of the fuel injectors and the stock wiring
harness (Fig. B).
The PCV connectors with ORANGE colored wires should go to injector #1.
The PCV connectors with YELLOW colored wires should go to injector #2.
The PCV connectors with GREEN colored wires should go to injector #3.
The PCV connectors with BLUE colored wires should go to injector #4.
4 Locate and unplug the stock wiring harness from the MAP sensor (Fig. C).
The MAP sensor is on the intake manifold between injector #3 & #4.
Kawasaki Ultra 250/260 Personal Watercraft - PCV - 3
