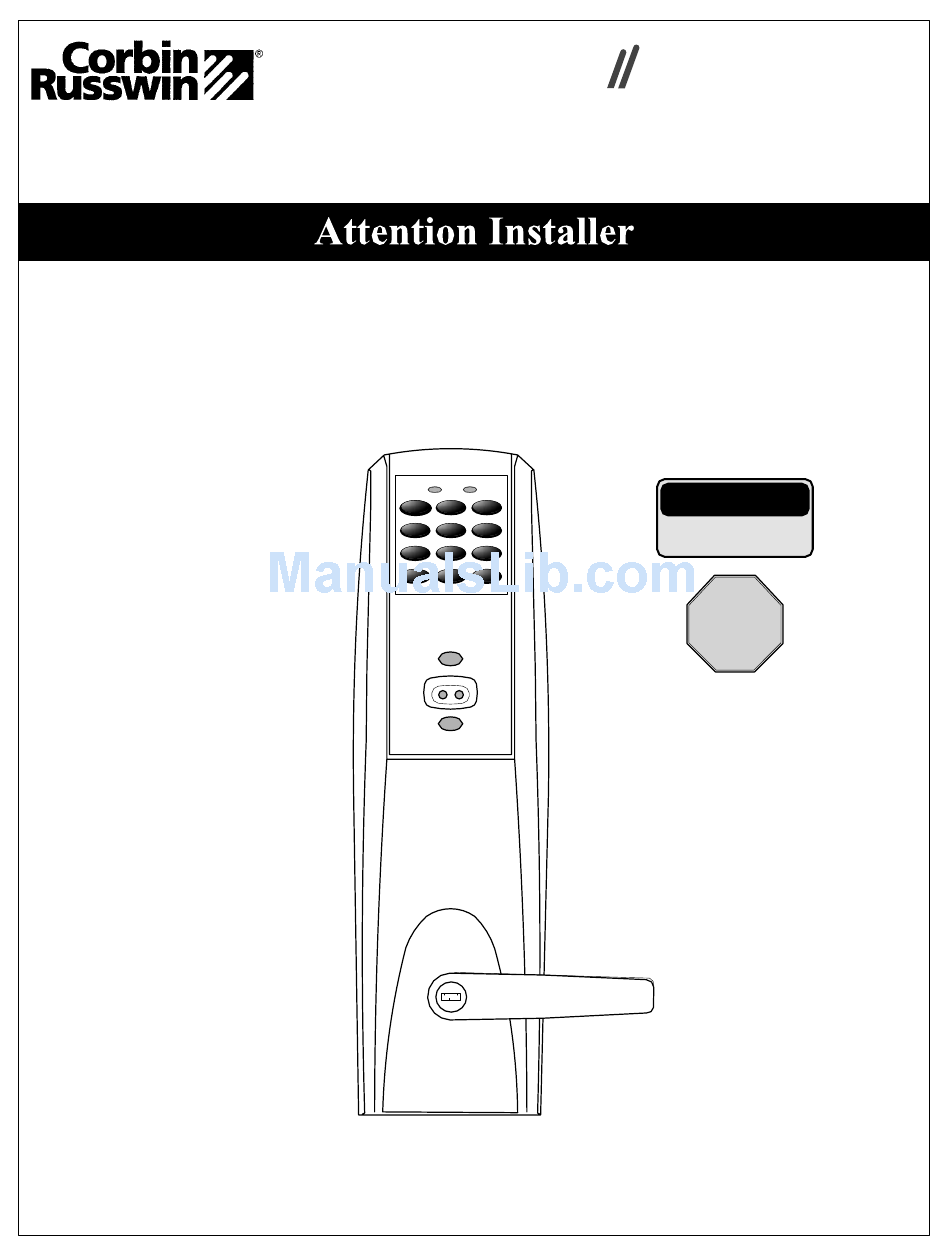

Installation Instructions
for CL33800 TCAC2 Series
Cylindrical Lockset
Please read these instructions carefully to prevent missing important Steps.
Please Note: Improper installations may result in damage to the lock and void the factory warranty.
Important:
The accuracy of the door preparation is critical for proper functioning and security of this lock.
Misalignment can cause premature wear and a lessening of security.
For installation assistance contact Corbin Russwin Inc., at 1-800-810-WIRE (9473)
1
2
3
4
5
6
7
8
9
0
#
*
A
ccess 800
FM223A 3/07
(617417410)
C A U T I O N
DOOR MUST REMAIN OPEN
DURING INSTALLATION.
USE DOOR STOP.
TEST
FOR PROPER
OPERATION
BEFORE
CLOSING
DOOR
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Access 800 and is the answer not in the manual?

Questions and answers

Related Manuals for Corbin Russwin Access 800

Summary of Contents for Corbin Russwin Access 800

  • Page 1 Misalignment can cause premature wear and a lessening of security. C A U T I O N DOOR MUST REMAIN OPEN DURING INSTALLATION. USE DOOR STOP. TEST FOR PROPER OPERATION BEFORE CLOSING DOOR For installation assistance contact Corbin Russwin Inc., at 1-800-810-WIRE (9473)

  • Page 2: Table Of Contents

    Table of Contents Page 1) Warning 2) General Description/Specifications/Features 3) CL33800 Series Product Illustration 4) Installation Instructions 5) Installation of RF Technology Lock 6) Operational Check 7) Hard Wiring Instructions 7.1) Important 7.2) Installation Notes 7.3) Electrolynx™ Connector System 7.4) M861 Forced Door Propped Door Option 7.5) M35 Power / Remote 14 Unlocking 7.6) M35 Power / Remote Unlocking with M861 Forced Door Propped Door Option...

  • Page 3: General Description/Specifications/Features

    2) General Descriptions/ Specifications/ Features General Description The Access 800 Cylindrical Lock is designed for areas which require stand alone authorized entry. It is a self- contained microprocessor-controlled keypad with non-volatile memory. The keypad will hold a total of 100(M800)/2000 (M801, M802, M803, M804, M805, M806) different user codes.

  • Page 4: Cl33800 Series Product Illustration

    3) CL33800 Series Product Illustration Weather Gaskets M99 Gaskets Only Connector on M861 option Only...
  • Page 5 Hinges Right. "LH" Open Outward "RH" Open Outward "LHR" "RHR" Prep door according to supplied Corbin Russwin Inc. door marker. Hole for ribbon cable 7/8" 1/8" Dia. holes (2) required Fire Stop Plate required C of 1-1/2 Dia. for fire rated doors...

  • Page 6: Installation Instructions

    Installation Instructions Installing chassis to Door Feed lockbody wire harness through 2-1/8" diameter lockbody hole and then install lockbody into door. Inside of door Harness slot Tighten latch assembly screws Insure lockbody wire harness is positioned in the vertical slot. Attach inside cassette housing and secure with screws.
  • Page 7 Installation Instructions Outside Escutcheon Installation 1A. For fire rated doors feed ribbon cable connector and ground wire from outside escutcheon through the fire stop plate. 1B. For non-fire rated door applications, optional gaskets may be used as a weather seal between the escutcheon and the door surfaces.
  • Page 8 Installation Instructions Inside Escutcheon installation and Electrical connections 1. Remove black battery cover from the escutcheon with High Security T20 Torx bit provided. 2. Connect ground wire to terminal, connect keypad ribbon cable to controller, and connect lock body motor harness to motor connector. 3.
  • Page 9 Installation Instructions Installation and removal of Lever and Standard Cylinder LEVER STYLE REMOVAL INSTALL PLAIN LEVER PUSH RELEASE TOOL SLIDE LEVER OVER Push release tool Slide lever over Into release hole, Lever catch Remove lever Pull on lever. Make sure lever RELEASE TOOL will not pull off...
  • Page 10 Installation Instructions Battery Installation 1. Remove battery keeper by lifting top tab and pulling away from the unit. 2. Install (6) AA Batteries into controller compartment being careful to align +/- polarity properly. 3. Install Battery Keeper by first inserting bottom tabs in bottom slots of controller. Lift the top tab over batteries and snap into position.

  • Page 11: Installation Of Rf Technology Lock

    5) Installation of RF Technology Lock The RF Technology Lock (M804, M805, M806) is installed as described in section 4 with the following exceptions: Installation of the top through-bolt screw Removal procedure for the battery keeper 1. Installation of the top through-bolt screw: The antenna board must be carefully moved to access the upper through-bolt screw.

  • Page 12: Operational Check

    USE DOOR STOP. TEST FOR PROPER OPERATION BEFORE CLOSING DOOR Canada: Assa Abloy DSS Canada Corbin Russwin, Inc. Technical Product Support: 225 Episcopal Road Corbin Russwin, Inc. 160 Four Valley Drive Vaughun, ONT L4K 4TG Berlin, CT 06037-4004 Phone 800-810-WIRE (9473) www.corbinrusswin.com...

  • Page 13: Hard Wiring Instructions

    7) Hard Wiring Instructions Hardwiring options include one or a combination of the following: M861 Forced Door Propped Door Option, M35 Power/Remote Unlocking Harness 7.1) Important 1. Caution: disconnect all input power before beginning installation to prevent electrical shock and equipment damage. 2.

  • Page 14: M861 Forced Door Propped Door Option

    7) Hard Wiring Instructions 7.4) M861 Quick Code, Forced Door Propped Door Option. Door Inside Escutcheon Fig. 1 REX Connector Ground Tab Controller Outside Escutcheon DPS Connector used for M861 Option (Exit Device Escutcheons Shown) Motor Connector Fig. 2 Forced Door/Propped Door Option ElectroLynx™...

  • Page 15: M35 Power / Remote 14 Unlocking

    7) Hard Wiring Instructions 7.5) M35 Power/Remote Unlocking Harness. Door 6 AA batteries MUST be removed from controller if 784 Power supply is used. Inside Remote Power and Ground Tab Escutcheon REX Connector TB2 Outside Escutcheon -9 VDC 9VDC +9 VDC Power Supply EGND Motor...

  • Page 16: M35 Power / Remote Unlocking With M861 Forced Door

    7) Hard Wiring Instructions 7.6) M35 Power/Remote Unlocking with M861 Propped Door, Forced Door. Door 6 AA batteries MUST be removed from controller if 784 Power supply is used. Inside Remote Power and Escutcheon REX Connector TB2 Ground Tab Controller Outside Escutcheon -9 VDC...

Table of Contents
