Chapter 1: Product Introduction

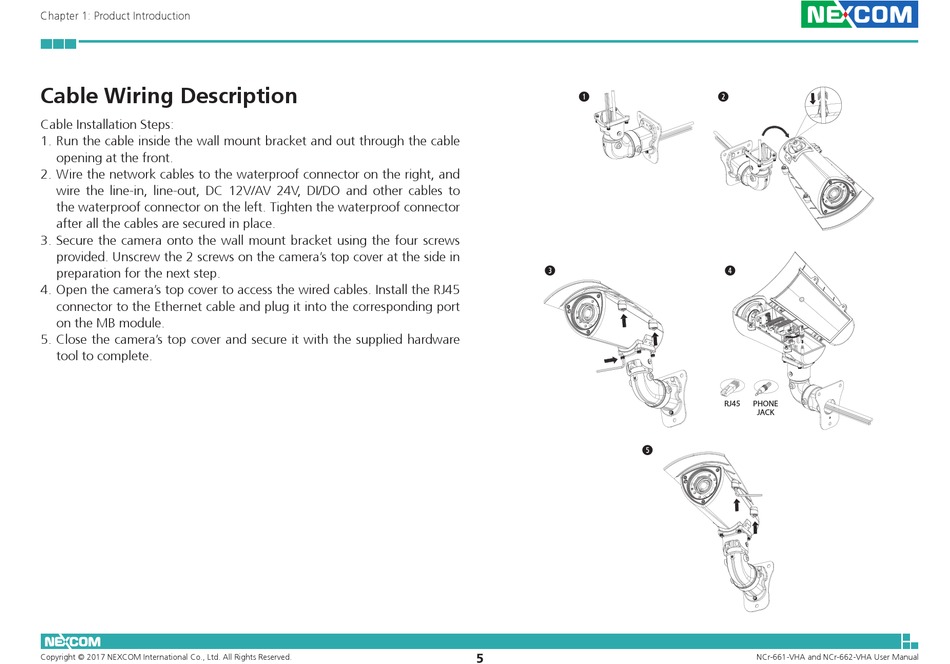

Cable Wiring Description
Cable Installation Steps:
1. Run the cable inside the wall mount bracket and out through the cable
opening at the front.
2. Wire the network cables to the waterproof connector on the right, and
wire the line-in, line-out, DC 12V/AV 24V, DI/DO and other cables to
the waterproof connector on the left. Tighten the waterproof connector
after all the cables are secured in place.
3. Secure the camera onto the wall mount bracket using the four screws
provided. Unscrew the 2 screws on the camera's top cover at the side in
preparation for the next step.
4. Open the camera's top cover to access the wired cables. Install the RJ45
connector to the Ethernet cable and plug it into the corresponding port
on the MB module.
5. Close the camera's top cover and secure it with the supplied hardware
tool to complete.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
q
e
t
5
w
r
RJ45
PHONE
JACK
NCr-661-VHA and NCr-662-VHA User Manual
