Nautilus 19-5174 Parts Diagram

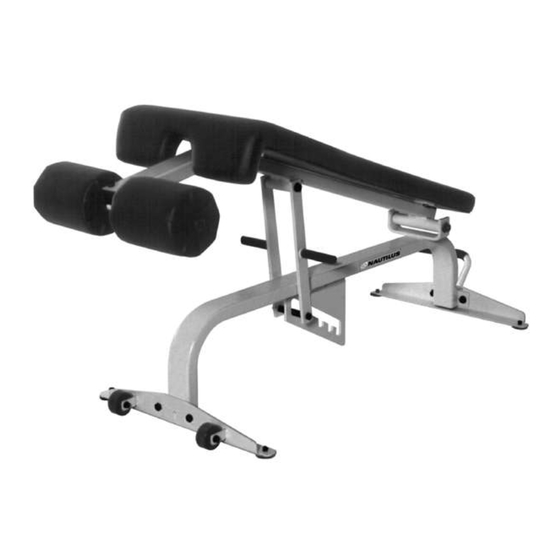

Adjustabe decline bench
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

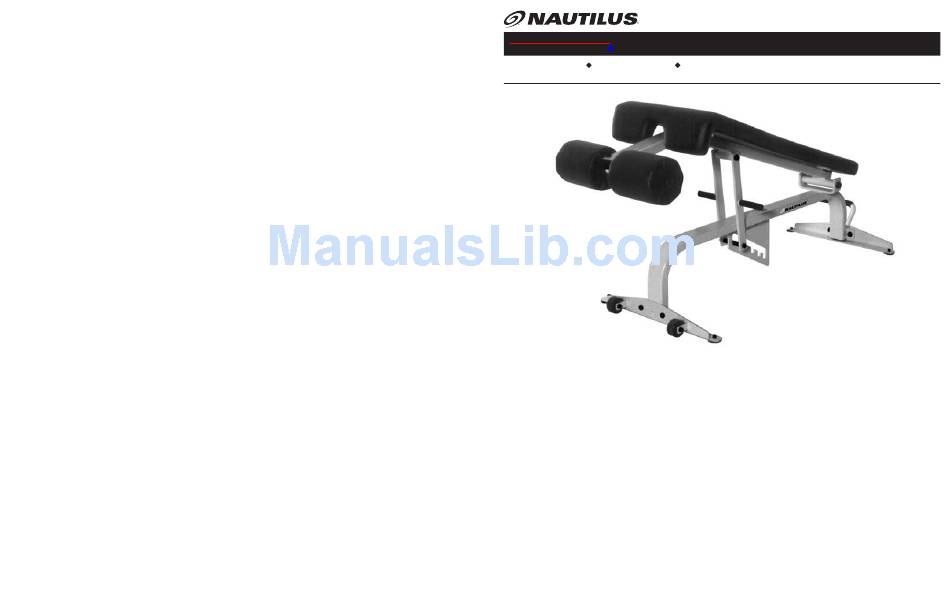

FREEWEIGHT
ADJUSTABE DECLINE BENCH
PARTS AND SERVICE
709 Powerhouse Road
Independence, VA 24348
800-235-2233 • Fax: 276-773-2298
F2AD
FREEWEIGHT ADJUSTABLE DECLINE
BENCH
Ref # Part #
Description
1 ........BSF215....BASE FRAME ASSEMBLY
2 ........LK210 ......ADJUSTMENT LINK
3 ........SF212 ......SEAT FRAME ASSEMBLY
4 ........FL203 ......FOOT LINK
5 ........19-5174 ...PARTS MANUAL F2AAB / F2AD
6 ........UP9940....SEAT / BACK PAD
7 ........UP8070....UPH. ROLLER 4 1/2" X 8" L
IN02
INSPECTION KIT
15 ........12-1380 ...INSPECTION STICKER DECAL
16 ........12-1089 ...NAUTILUS NAMEPLATE 1 1/2 x 6 1/4 L
............
.................
PLASTIC
17 ........19-1291 ...DECAL SERIAL # BAR CODE
18 ........40-7167 ...BAG 50 X 46 X 86 X .002 THICK
PR09
F2AAB/AD KIT
19 ........01-1261 ...BOLT HH5 1/2 X 1
20 ........01-1550 ...BOLT HH5 3/8 x 3
21 ........01-3180 ...SHOULDER BOLT 1/2 X 4 1/2
22 ........01-2282 ...BOLT HH5 5/8 x 8 1/2
23 ........02-9220 ...BOLT HH5 3/8 X 1 1/4 (UPH)
24 ........02-9250 ...BOLT HH5 3/8 x 2 1/4
25 ........03-1035 ...NUT NTE 3/8
26 ........03-1055 ...NUT NTE 1/2
27 ........03-2060 ...NUT NTE 5/8
28 ........04-5213 ...WASHER INT LOK 3/8 (UPH)
PARTS DIAGRAM
19-5174
REVISED:
March 27, 2006
Ref #...Part #......Description
29 ........06-8230 ...SNAP RING EXTERNAL, 1" THIN 5100-100
30 ........07-8329 ...1" DIA ROLLER PAD MOUNT
31 ........07-8542 ...BASE ANGLE
32 ........07-8345 ...SLEEVE 1/2 DIA X .058W TUBE X 1 1/2 L
33 ........07-9027 ...NYLON SLEEVE 3/4 DIA NYLON 3 11/16
34 ........08-5064 ...PIVOT SPACER - 1" DIA .188W TU L = 7
............
.................
7/32
35 ........08-5065 ...LINK PIVOT SPACER - 3/4 DIA .120W TU
............
L = 3 11/16
36 ........09-2060 ...PLUG, FRAME, 1-1/2 X 3
37 ........09-1010 ...3/4 X 5 CLOSED END GRIP
38 ........09-1058 ...RUBBER HAND GRIP, 7/8 X 4 1/2
39 ........09-3074 ...HOLE PLUG 3/4 DIA BLACK
40 ........09-5030 ...FOOTPAD ROUND MOLDED
41 ........09-8340 ...WHEEL MOLDED NYLON
42 ........12-5600 ...NEW NAUTILUS NAMEPLATE
43 ........12-1122....DECAL F2AD/AAB RIGHT
44 ........12-1123....DECAL F2AD/AAB LEFT
45 ........45-1051 ...BUSHING IGUS 1" ID X 1/2 LONG, FLANGE
46 ........45-1062 ...BUSHING IGUS 3/4" ID X 3/4 LONG,
............
.................
FLANGE
47 ........04-2020 ...WASHER FLAT 3/8
48 ........04-5207 ...WASHER 1/2 FLAT
49 ........08-2056 ...MOLDED MA SHAFT SPACER
50 ........08-2055 ...SPACER NYLON 1 ID 1 1/4 ODL1/4-1
............
.................
7W18500-B
