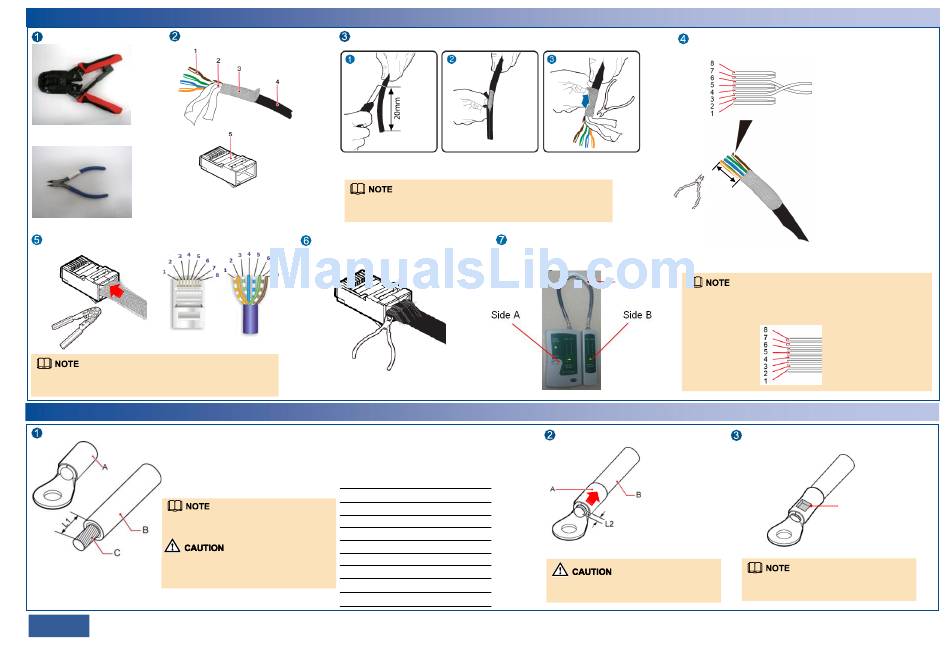

Terminating an Outdoor Network Cable with Shielded RJ45 Connectors
Prepare an outdoor network cable
Prepare the following tools.
and shielded RJ45 connectors.
RJ45 connector crimping tool
1.
Core wire
2.
Aluminum foil
3.
Braid shield
4.
Outer jacket
5.
Shielded RJ45 connector
Diagonal pliers
Insert the arranged core wires into an RJ45 connector according to the pin
assignments and crimp the connector with the crimping tool.
Crimp the RJ45
connector.
Pin assignments of an RJ45 connector
Before crimping, ensure that the core wires are fully inserted in the RJ45
connector.
Terminating a Ground Cable with an OT Terminal
Strip the ground cable.
A: OT terminal
B: ground cable
C: exposed cable conductor
L1: length of the exposed cable
When you are skillful, you can determine L1
based on the length of the OT terminal lug.
When striping off the insulation layer of the
ground cable, take care not to damage or nick
the metal conductor of the cable.
06/07 >>
Strip the cable.
Length of the stripped
Remove the outer jacket.
cable: 20 mm
When stripping off the outer jacket, take care not to damage the braid shield
or aluminum foil.
Cut off the exposed braid shield and materials
along the edge of the connector.
Cut off the exposed braid
shield and materials.
Mapping between the cross-sectional area of a
cable conductor (C) and the length of an exposed
cable (L1)
Cross-sectional
L1 (mm)
Area of C (mm
2
)
1
7
1.5
7
2.5
7
4
8
6
9
10
11
16
13
25
14
35
16
50
16
Strip off the braid shield and cut
the aluminum foil and unwanted
materials.
Cut the core wires neatly.
Terminate a connector on the other end of the network cable, and then test the cable
for continuity using a network cable tester.
The pin assignments of the connectors at the two ends must be the same. Outdoor
network cables are straight-through cables.
Outdoor network
cable
Generally, straight-through cables are used with the RTN 360.
Crossover cables are required only when the BTS3902E and BTS3202E
supplies power over Ethernet to the RTN 360. In this case, the pin
assignments of the connector at the other end are as follows:
Fit the exposed cable into the OT terminal.
Ensure that the cable conductor does not
protrude more than 2 mm from the OT terminal.
Arrange the core wires according to the pin assignments and cut them
neatly (exposing a length of 12 mm).
8: brown
7: white and brown
6: green
5: white and blue
4: blue
3: white and green
2: orange
1: white and orange
Length of each exposed core wire: 12 mm
12 mm
8: brown
7: white and brown
6: orange
5: white and blue
4: blue
3: white and orange
2: green
1: white and green
Crimp the OT terminal lug.
Crimp the OT
terminal lug.
The impression left from crimping the lug may
differ depending on the crimping tool used.
