User Manual

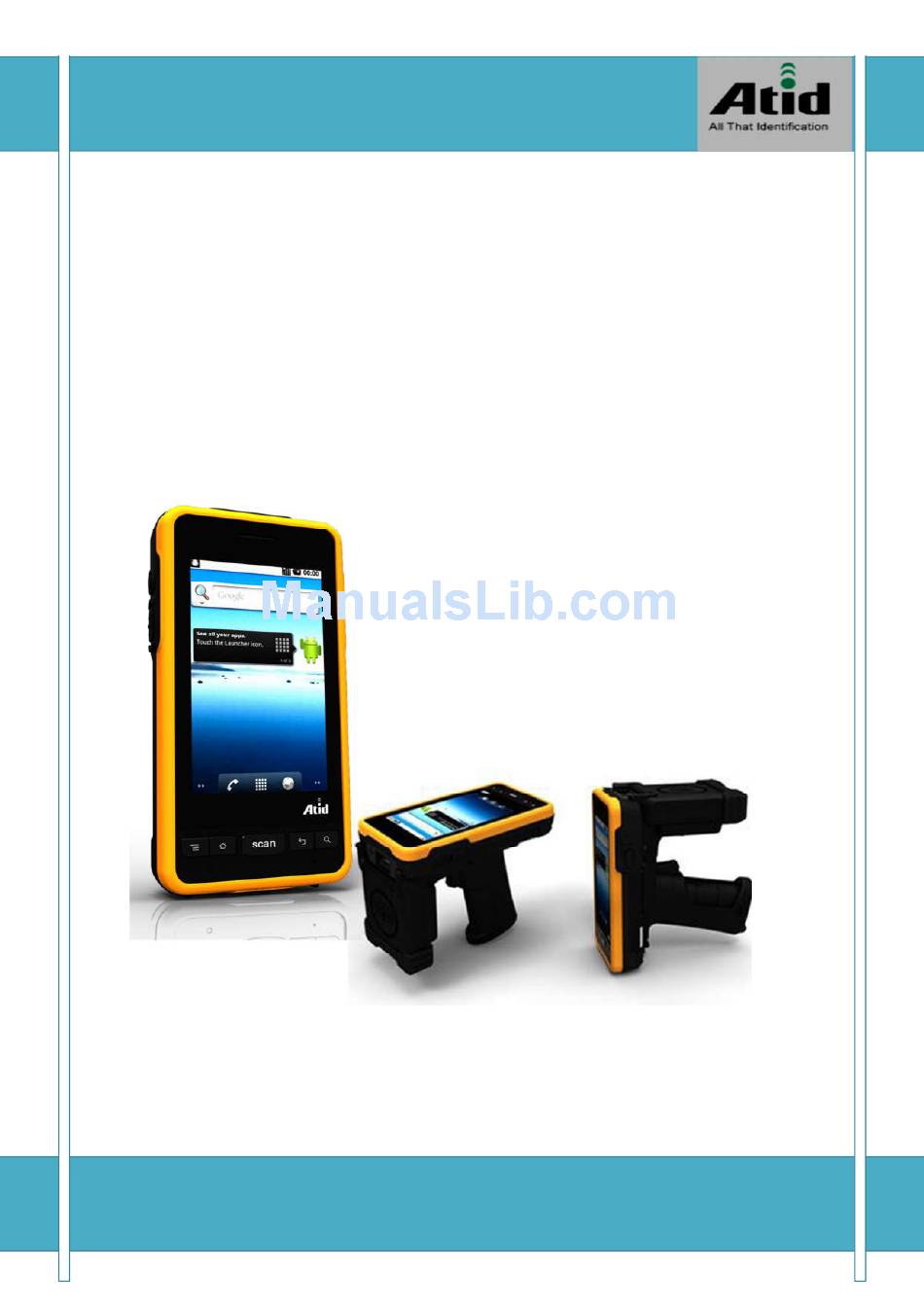

AT911N USER GUIDE
Series Highlights:
•
•
•
•
•
•
•
•
•
•
•
Android 4.2.
ALLWINNER A20 Dual-Core 1GHz
Memory RAM 1GB / ROM 8 GB
WVGA TFT LCD 480W x 800L with backlight
UHF 900MHz GEN2, ISO/IEC 18000-6C
1D and 2D IMAGE Laser Barcode Scanner
WLAN(IEEE802.11 a/b/g/n)
GSM/GPRS/WCDMA/HSDPA/HSPA+/3G
Bluetooth Class II, v4.0
5.0M Camera
GPS with internal antenna
Advertisement
Table of Contents
Related Manuals for Atid AT911N series
Summary of Contents for Atid AT911N series
- Page 1 AT911N USER GUIDE Series Highlights: Android 4.2. • ALLWINNER A20 Dual-Core 1GHz • Memory RAM 1GB / ROM 8 GB • WVGA TFT LCD 480W x 800L with backlight • UHF 900MHz GEN2, ISO/IEC 18000-6C • 1D and 2D IMAGE Laser Barcode Scanner •...
-
Page 2: Table Of Contents
User Manual Guide Before You Begin ........................4 Chapter 1. Caution when using ....................5 1. How to use the battery correctly ..................5 2. Caution when using ......................5 Chapter 2. Products compositions ................... 6 1. Package components ......................7~8 Chapter 3. -
Page 3: Before You Begin
Before You Begin This user manual is protected by copyright. This manual is published by ATID Co., Ltd. and can only be copied, edited or distributed by ATID. Some contents in the manual may be slightly different from the actual device. -
Page 4: Chapter1. Caution When Using
Chapter1. Caution when using Before you handle and operate your device, please read through and familiar with the contents of this manual. 1. How to use the battery correctly When you dropped the main body or battery in water, please do not put it on the stove or ... -
Page 5: Chapter 2. Products Compositions
Chapter 2. Products compositions AT911N, Android OS based device, can support barcode scanner, RFID tag reader, wireless communication modem, camera etc. and can be widely used in a variety of work environments. 1. Package components After opening the product packaging box, check the items listed as below: 1) PDA 2) Standard battery pack for the body... -
Page 6: Package Components
2. Name of each part Receiver Charge LED WLAN/3G LED LCD Touch Screen Reset Key KEY PAD AT911N User Guide... - Page 7 < Front > Ear Jack Power Key Scan Key Side Key < Side view > Scanner Camera Antenna < Front > DC Power Port USB Synchronization/ AT911N User Guide...
-
Page 8: Package Components
DC Power Port < Bottom > Chapter3. Basic Functions 1. Power and battery PDA is composed of main battery. The Main battery supplies the power to the system and RAM which can save and conserve the data. Main Battery: 3.7V 2,260mA Lithium - ion Attach the main battery to the back battery compartment of the PDA. -
Page 9: Charging
Battery locking lever Attaching Battery Put the top part of battery into the upward groove, and then press down the bottom of battery into the battery compartment, slide battery latch to the left (LOCK side) to attach battery firmly 1.2 Charging You have to charge the battery via dedicated adapter, which provided from the factory. -
Page 10: Low Power Mode(Sleep Mode)
Use low power mode (sleep mode) with Power button Enter low power mode (sleep mode): If the power button is pressed when the device is on, the screen will be turned off and the device will enter the low power mode (sleep mode). Cancel low power mode (sleep mode) If the power button is pressed when the device is off, the screen will be turned on and the device will... -
Page 11: System Reset (Restart)
2. System reset (Cold reset) If the system is not responding or application program doesn’t work, restart the system by using reset function. System reset is used to reboot and initialize the hardware completely. The installed programs copied files, and registry values will be preserved even after the system reset [Cold Reset Steps] Push and release the reset button. -
Page 12: Use Micro Sd, Sim, Sam Cards
3. Use Micro SD, SIM, SAM Cards The image below shows the back side of the PDA when the main battery is removed. There are 1 SIM card slot, 1 Micro SD memory card slot as shown below. Micro SD card slot SIM card slot Micro SD Card Installation Slide the cover of Micro SD... - Page 13 When the SD memory is selected from the File Manager after installing Micro SD memory card, it is shown as below. 3.2 Installing SIM card Below is the screenshot after installing the SIM card. Place and insert the SIM card so that it fits the slot shape. AT911N User Guide...
-
Page 14: System Settings
4. System settings 4.1 Set Screen Brightness Brightness of the screen affects the power consumption the most, so it is recommended to be set as required by the user. [Setting the screen brightness] [Menu] -> [Settings] -> [Display] -> [Brightness] Brightness: Adjust the screen brightness. -
Page 15: Use Keypad
5. Use keypad Keypad is an input method editor that inputs numbers or alphabetic characters easily. 5.1 Use keypad To change the current input language, follow the steps below. [Menu] -> [Settings] -> [Language & input] 5.2 Keypad button execution Describe the Keypad Function. -
Page 16: 제 4 장. Use Peripheral Device
Chapter 4. Use Peripheral Device This chapter describes various option modules for use with AT911N.Please refer to description of necessary option modules and use them. Option Module of AT911N AT911N device provides the options as below according to the purpose of use. The Option Modules below are other specifications outside AT911N, so when buying the device, you should confirm it to buy. -
Page 17: Barcode Scanning
[Menu] -> [ATID Scanner] [Correct barcode reading] 1. The small barcode should be closer to the device. This device is read at the distances of 40~300mm. If the reading not working well, please adjust angle or distance. 2. Laser beam appears as a dark red line when shined to barcode label. -
Page 18: Wlan Connection
2. WLAN connection This device can communicates wireless data by 802.11b/g radio, and describes access pointer and the contents related to wireless communication. AT 911N device supports TCP/IP network protocol and directly use host computer and TCP/IP in TCP/IP network. When shipping goods, wireless LAN is always set to off Turn Wi-Fi on / Turn Wi-Fi off [Menu] ->... -
Page 19: Bluetooth
3. Bluetooth The below contents are related to “AP6330 COMBO” Module which is used in AT911N. Turn on/off Bluetooth [Menu] -> [Applications] -> [Settings] -> [Bluetooth] 1. Start Bluetooth function AT911N User Guide... -
Page 20: Gps Module
4. GPS Module The device can be installed with GPS system as option, and GPS Module will be installed on top of AT911N into Built-in shape. Start GPS Demo Program [Menu] -> [Applications] -> [GPS Test] GPS Test Start the program. Confirm GPS reception Data: 1. -
Page 21: Use Camera
5. Use Camera The products are installed with 5.0 mega pixel cameras and have the functions of screen brightness, resolution adjustment and screen captures 5.1 Use Camera [Menu] -> [Applications] -> [Camera] Start Camera program Camera screen AT911N User Guide... -
Page 22: Use Uhf
6. Use UHF UHF 900Mhz RFID Program [Menu] -> [Applications] -> [Settings] -> [ATUHF Demo] Start ATUHF Demo program ATUHF Demo screen AT911N User Guide... -
Page 23: Chapter 5. Appendix
Chapter 5. Appendix Product Specifications Physical Characteristic and Operating Environment Appearance 145mm(L) X 75mm(W) X 23mm(H) Weight Body 335g Operating temperature -20℃ ~ 50℃ Storage temperature -30℃ ~ 60℃ Humidity Non-condensing Drop 1.2m drop to concrete Product Specifications Process ALLWINNER A20 Dual-Core 1.0GHz Operating system Android 4.2 Jelly Bean Memory... - Page 24 RF output 1W EIRP Protocol EPC Gen2 ISO 18000 6C, ISO 18000(6B option) Multi reading Anti-collision RF Exposure Information and Statement The SAR limit of USA/Canada (FCC/IC) is 1.6 W/kg averaged over one gram of tissue. Device types WCDMA wireless data terminal (FCC ID: VUJAT911N / IC: 20534-AT911N) has also been tested against this SAR limit.
- Page 25 (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
