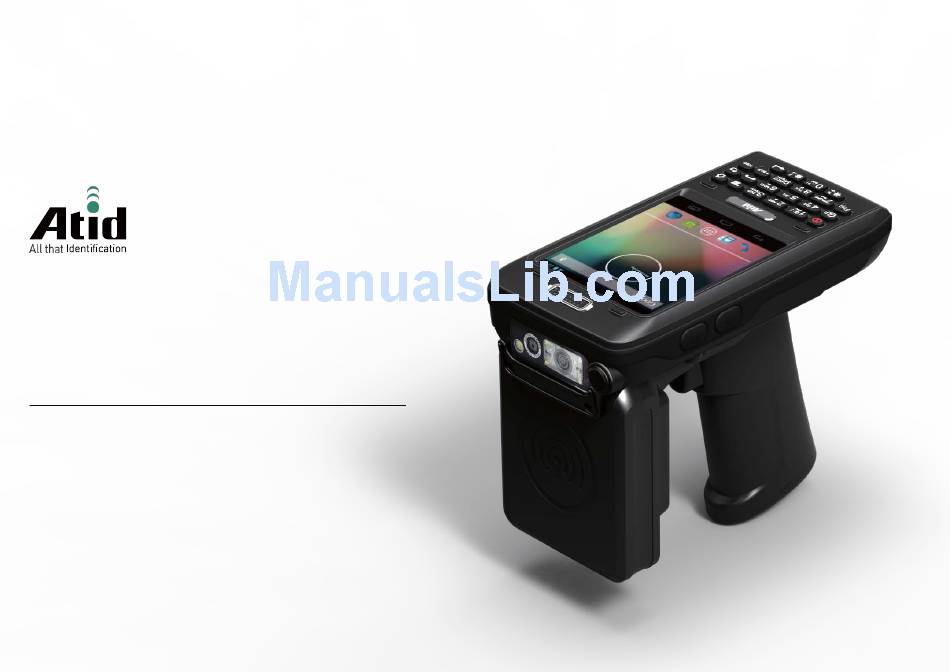

  • Page 1 AT870A Guide for Customer...
  • Page 2 ATID web site (www.atid1.com) or provided on appropriate media. If you visit our web site and would like to make comments or suggestions about this or other ATID publications, please let us know via the “Contact ATID” page.

  • Page 3: Table Of Contents

    Contents Page Contents Before using manual for AT870A Chapter 1. Caution when using AT870A 1. How to use battery correctly 2. Caution when using AT870A Chapter 2. Product composition 1. Product composition 2. Name of each part 3. Function of each part Chapter 3.
  • Page 4 Page Contents Chapter 3. Basic function(continues) 10. Screen adjustment 11. Volume setting 12. Using keypad 13. Inputting data 14. Using stylus 15. Connecting PDA to PC 16. Firmware upgrading Chapter 4. Optional module 1. Using 1D or 2D barcode scanner 2.

  • Page 5: Before Using Manual For At870A

    Before using manual for AT870A User guide inclusive of text, images, logos, product names is either the property of, or used with permission by ATID CO.LTD. The information may not be distributed, modified, displayed, reproduced (in whole or in part) without the prior written permission of ATID CO.LTD.

  • Page 6: Caution When Using At870A

    Caution when using AT870A Please aware of the manual contents in advance before you handle and operate your AT870N and other ATID Products. How to use the battery correctly In case that you dropped the main body or battery in water, please do not put into the stove or heater for drying. Just keep it in natural drying or contact purchase place.

  • Page 7: Product Composition

    Product Composition AT870A is based upon Android 4.2. As the state of the art product, it is equipped with barcode scanner, RFID Tag reader, MODEM, Camera and so on and it can be applied to Industry, Enterprise, Logistics and so on, can be used extensively in many fields due to this kind of various functions Product composition Open the packing box and confirm the items as below.

  • Page 8: Name Of Each Part

    Name of each part 1D/2D Scanner Camera (option) Cradle connector (option) Camera flash Charger jack Earphone jack (option) Sync Cable Connector WLAN LED Internal NFC Phone receiver (option) (option) Charge LED Volume button Scan button Touch Screen Keypad Reset button Gun handle Microphone Chapter 2.

  • Page 9: Function Of Each Part

    Function of each part NAME FUNCTION Please be careful not to get the damage or the foreign substances at the Window emitted the laser beam 1D/2D Scanner (option) Warning Do not look at the laser beam directly. UHF Connecting port It is connector to equip the UHF 900Mhz tag reader module.

  • Page 10: Attaching And Detaching The Battery

    Basic function A battery supplies the power to the system and RAM which could keep the data. Battery: 3.7V 2,970 mA Lithium – Ion Attaching and detaching the battery ▶ Battery detachment These image as below has shown the bottom of device Please slide the battery latch to the right (Direction to UNLOCK), and then lift the battery to detach the battery after grapping the gap of battery on the bottom.

  • Page 11: Charging Battery

    Charging battery You have to charge it through dedicated adapter which is provided when you bought. Red light is lit on LED when it starts to charge. It will be changed into green light in case of full charging. ▶ Connecting adapter 1.
  • Page 12 ▶ Automatic Power OFF The device will be automatically entered to low power mode (Sleep mode) if user does not use it for the designated time. User can change the designated time at the control panel and power as below. If user sets proper time-out, the device can be protected from the situation of power-on without user and battery can be prolonged.

  • Page 13: Changing The Battery

    Checking battery gauge ● NOTE: Using time for battery will be influenced by way of use, surrounding environment. In general, you can use the device from 6 hours to 12 hours after 2,970 mA battery is fully charged. ▶ Checking the Gauge Remained [Menu] ->...

  • Page 14: Hard Reset

    Please do restart the system when the application doesn`t work properly or system receives no response. Hard reset In need of Hard reset Hard reset which is called cold reset can be used for initializing the hardware completely. Registry value, copied file and installed program can be remained originally even though user uses the hard reset, but please note that time/date will be initialized.

  • Page 15: Attaching Micro Sd Card

    Below image shows the back side of device when separating the battery from device There are 1EA SIM Card Slot, 3EA SAM Card Slot and 1EA Micro SD Card Slot. Micro SD card slot SIM card slot Attaching Micro SD card Do lock the slot cover by sliding it to Do unlock the Micro SD card by Put the SD memory on the slot and...

  • Page 16: Attaching Sim Card

    When the SD memory is selected from the File Manager after installing Micro SD memory card, it is shown as below. Attaching SIM card Below is the screenshot after installing the SIM card. Place and insert the SIM card so that it fits the slot shape. Chapter 3.

  • Page 17: Set Screen Brightness

    Set screen brightness Brightness of the screen affects the power consumption the most, so it is recommended to be set as required by the user. [Setting the screen brightness] [Menu] -> [Application] -> [Settings] -> [Display] -> [Brightness] Brightness : adjust the screen brightness Wallpaper : choose the wallpaper Auto-rotate screen : set the auto-rotate screen function Sleep mode : adjust the time period to enter into sleep mode...
  • Page 18 Set sound volume The volume is set to 80% when it is dispatched. The user can set the different features of sound settings from [Menu] -> [Application] -> [Settings] -> [Sound]. Chapter 3. Basic function...
  • Page 19 Keypad is an input method editor that inputs numbers or alphabetic characters easily. Use keypad To change the current input language, follow the steps below. [Menu] -> [Application] -> [Settings] -> [Language & input] Or change the select input method. Chapter 3.
  • Page 20 Keypad button execution Describe the Keypad Function. Keypad Description power Enters to sleep mode for short press and Power ON or reboot for long press (2 seconds) Ξ Menu Key (Android. view. Menu) can be used by importing home Move to home button back Use for going back to previous state call...
  • Page 21 Use of Stylus User is able to use stylus pen that has same function with computer mouse and it can be used in connection with hand strap hole located on back bottom side of PDA. Use of Stylus  Setting Direction of Screen Display. ...

  • Page 22: Firmware Upgrading

    Install the program below, then connect the device Name : PdaNetA325x64.exe(for Win7) Link : http://download.cnet.com/PdaNet-for-Android-64-bit-Windows-Installer/3001-2155_4-75167583.html?spi=b919c0d7061a55cea7228ccdad091cec Firmware upgrading Run the application, Update for upgrading AT870A. For firmware image update, please contact the manufacturer or supplier for instructions. Chapter 3. Basic function...

  • Page 23: Chapter 4. Optional Module

    This chapter describes various option modules which use with AT911N. Please refer to description on necessary option modules and use them. Option module for AT870A According to the purpose of use, AT870A device provides the options as below. User has to check below option modules before buying the device since its specifications are outside of basic AT870A.
  • Page 24 The barcode scanner which can recognize 1D, 2D barcode can be installed on this device. Read 1D or 2D barcode [Menu] -> [Application] -> [ATID ATID Barcode demo Barcode] Chapter 4. Optional module...
  • Page 25 Setting barcode emulator Can input the read barcode values (Notes, Internet Explorer…) where the cursors are located. Sets the barcode value input method, scan button, scan sound etc. using Barcode Emulator program. When opening the Barcode Emulator, if other Barcode programs are being run, please close the program first to run the Barcode Emulator. [Menu] ->...
  • Page 26 1) Emulator execution Cursor is on the screen and user can use this program when barcode soft keyboard is created. Read barcode value by using SCAN Key and Side key. Chapter 4. Optional module...

  • Page 27: Barcode Scanning

    Barcode scanning 1. Remove protection film on barcode scanner 2. Run the scanning application 3. Place beam in the middle of the barcode to read • Adjust distance fits to the barcode • Scanning stops automatically after 5 seconds from getting out of readable distance [Correct barcode reading] The small barcode should be closer to the device.

  • Page 28: Wifi Connection And Termination

    AT870A enable to explain wireless communication including APN since it can communicate through 802.11 a/b/g/n radio. AT870A supports the TCP/IP network protocol and AT870A directly uses the TCP/IP and host computer at this protocol. WiFi connection and termination [Menu] -> [Application] -> [Settings] -> [Wi-Fi] Chapter 4.

  • Page 29: Bluetooth Connection And Termination

    This document consist of contents applied of ‘BCM4329 COMBO’ module in AT870A. Bluetooth connection and termination [Menu] -> [Application] -> [Settings] -> [Bluetooth] 1. Bluetooth Chapter 4. Optional module...

  • Page 30: Gps Demo Program Execution

    AT870A can install the GPS system as an option, and GPS Module will be installed on top of AT870A into Built-in shape GPS demo program execution [Menu] -> [Application] -> [GPS Test] GPS Test Execution Confirm GPS reception Data: 1. Check if GPS reception is normally worked in the open place 2.

  • Page 31: Use Of Camera

    AT870A is installed with 5.0 mega pixel and brightness, resolution revision, screen capture and so on can be adjusted by user. Use of camera [Menu] -> [Application] -> [Camera] Camera execution. Camera screen Chapter 4. Optional module...

  • Page 32: Nfc Execution

    AT870A can internally install the NFC module as an option and it can read the tag in range of3~8.5cm in accordance with ISO standard. In case of Mifare tag, it can read in range of 1~3.5cm. NFC tag can be also read.

  • Page 33: Uhf 900Mhz Rfid Program

    UHF 900Mhz RFID program [Menu] -> [Application] -> [Settings] -> [ATUHF Demo] ATUHF Demo execution ATUHF Demo screen Chapter 4. Optional module...

  • Page 34: Chapter 5. Appendix

    Appendix Specifications Physical Characteristic and Operating Environment Appearance 148mm(L)X76mm(W)X26(30.5)mm(H) Weight 250g(without Battery) -10℃ ~ 60℃ Operating Temperature Storage Temperature -30℃ ~ 70℃ Humidity 5% to 95% Non-condensing Drop 1.5m drop to concrete Product Specification Process Dual-Core 1.0GHz Operating System Android 4.2 (Jelly Bean) Memory ROM 8GB / RAM 1GB 3.5"...
  • Page 35 Power System Battery Lithium ion 3.7V Above 2,970mAH(rechargeable) Input AC100~240V Power Adapter Output DC5V 3A Network Characteristic GSM/GPRS/EDGE/WCDMA/HSPA+ IEEE 802.11 a/b/g/n* Compliant Bluetooth 2.1 +EDR GPS + Glonass with internal Antenna Antenna Embedded LAN & WAN & PAN Data Collection Processor Scanner 1D Laser, 2D Imager Scanner Camera...
